TECHNICAL DATA SHEET

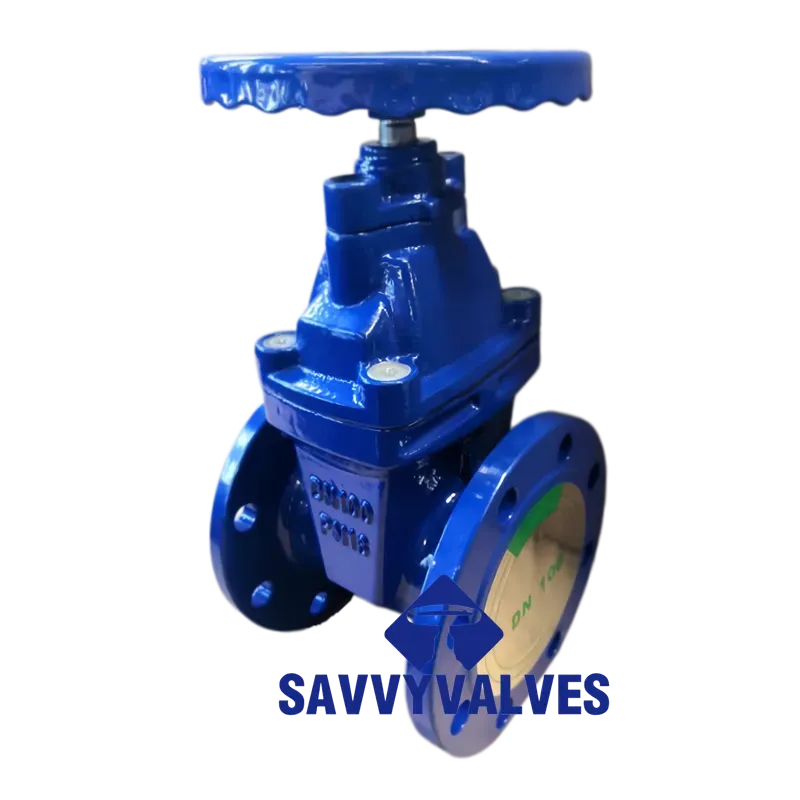

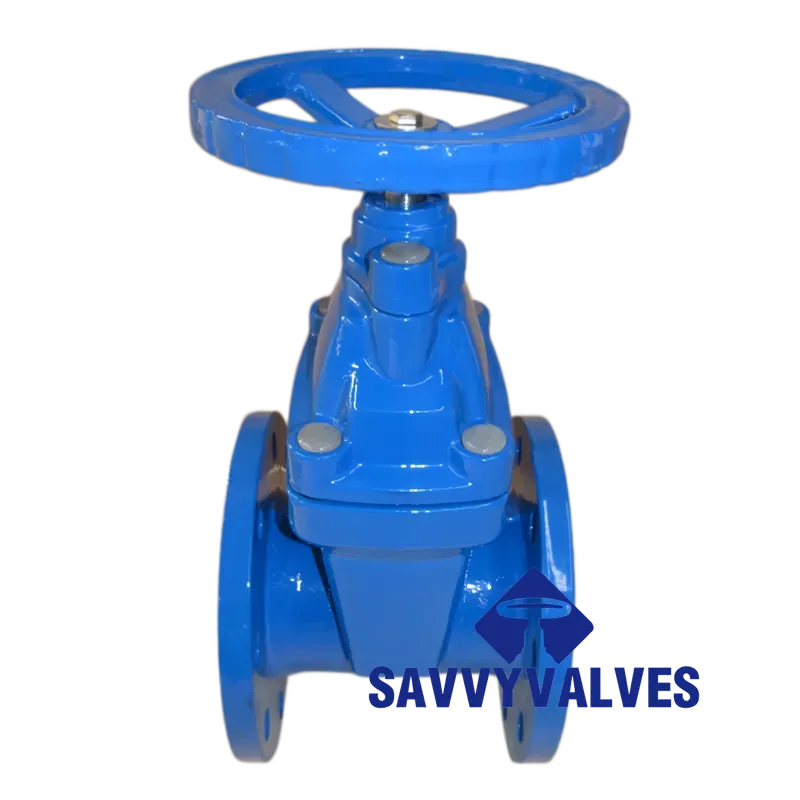

British Standard Resilient Seated Non-Rising Stem Gate Valve
- BASIC VALVE INFORMATION
|
Item
|
Specification
|
|
Valve Type
|
Resilient Seated Gate Valve
|
|
Stem Type
|
Non-Rising Stem (NRS)
|
|
End Connection
|
Flanged, Raised Face (RF) / Flat Face (FF)
|
|
Nominal Size
|
DN50 – DN600 (2″ – 24″)
|
|
Pressure Rating
|
PN10 / PN16 / PN25
|
|
Body Material
|
Ductile Iron / Cast Iron
|
|
Operation
|
Handwheel / T-Key / Bevel Gear
|
|
Service Medium
|
Water / Oil / Gas / General Purpose
|
- APPLICABLE CODES & STANDARDS
|
Standard
|
Description
|
|
BS 5163-1 / BS 5163-2
|
Specification for resilient-seated gate valves for waterworks purposes
|
|
BS 5150
|
Specification for cast iron gate valves (flanged and spindle operated)
|
|
EN 558-1
|
Face-to-face dimensions for metal valves for use in flanged pipe systems (PN designated)
|
|
BS EN 1092-2
|
Flanges and their joints – Circular flanges for pipes, valves, fittings and accessories, Part 2: Cast iron flanges
|
|
BS 4504
|
Circular flanges for pipes, valves and fittings (PN designated)
|
|
BS 10
|
Specification for flanges and bolting for pipes, valves and fittings (Tables D/E)
|
|
BS 6755 / ISO 5208
|
Testing of valves – Pressure test requirements
|
|
ISO 7259
|
Predominantly key-operated cast iron gate valves for underground use
|
|
WRAS / ACS
|
Potable water approval (if required)
|
- MATERIALS OF CONSTRUCTION
|
Component
|
Material
|
Standard / Remarks
|
|
Body
|
Ductile Iron (GGG50) / Cast Iron (GG25)
|
EN-GJS-400 / EN-GJL-250
|
|
Bonnet / Cover
|
Ductile Iron / Cast Iron
|
Same as body
|
|
Gate / Wedge
|
Ductile Iron + Fully Encapsulated EPDM/NBR
|
100% rubber covered, fusion bonded
|
|
Stem
|
Stainless Steel (AISI 304 / 316)
Brass / Bronze (Optional)
|
2Cr13 / SS304 / SS316
|
|
Stem Nut
|
Brass / Bronze / Ductile Iron
|
High strength, wear resistant
|
|
Seat (Body)
|
Integral / EPDM bonded
|
Rubber molded to body or gate
|
|
O-Rings / Seals
|
EPDM / NBR / Viton
|
3 O-rings on stem for blowout proof sealing
|
|
Bolting / Nuts
|
Stainless Steel / Zinc Plated Carbon Steel
|
A2 / A4 Stainless Steel (for corrosion resistance)
|
|
Gasket (Bonnet)
|
O-Ring type / Spiral Wound
|
Self-sealing design, pressure energized
|
|
Coating
|
Epoxy Coating (FBE)
|
Internal & external, RAL 5012 (blue) / RAL 5005, certified for potable water
|
|
Handwheel
|
Ductile Iron
|
With direction indicator (open/close)
|
- DESIGN & PERFORMANCE CHARACTERISTICS
|
Parameter
|
Specification
|
|
Pressure Class
|
PN10 / PN16 / PN25 (as specified)
|
|
Working Pressure
|
10 bar / 16 bar / 25 bar
|
|
Shell Test Pressure
|
1.5 x Rated Pressure (e.g., PN16 → 24 bar)
|
|
Seat Test Pressure
|
1.1 x Rated Pressure (e.g., PN16 → 17.6 bar)
|
|
Low Pressure Seat Test
|
5–6 bar – Zero leakage
|
|
Design Temperature Range
|
-10°C to +80°C (standard EPDM)
-20°C to +120°C (special compounds)
|
|
Leakage Rate
|
Zero leakage (Rate A per ISO 5208 / BS 6755)
|
|
Flow Characteristic
|
Full bore, linear (on-off service only)
|
|
Operation Torque
|
Low torque design (≤80% of standard requirement)
|
|
Stem Sealing
|
3 O-rings + Wiper ring – blowout proof, no external leakage
|
|
Direction of Closing
|
Clockwise to close (handwheel)
|
|
Position Indication
|
Visual indicator on stem / handwheel (open/close)
|
- DIMENSIONS & CONNECTIONS
|
Item
|
Dimension (mm / inch)
|
|
Flange Standard
|
BS EN 1092-2 / BS 4504 / BS 10 Table D/E
|
|
Flange Drilling
|
PN10 / PN16 / PN25 drilling (as per EN 1092-2)
|
|
Face-to-Face Length
|
EN 558-1 Series 14 (Basic Series 14 for resilient seated gate valves)
Example: DN80 → 203 mm, DN100 → 229 mm, DN150 → 267 mm
|
|
Flange Face
|
Raised Face (RF) or Flat Face (FF)
|
|
Overall Height
|
Per BS 5163 / Manufacturer standard
|
|
Stem Diameter
|
Per BS 5163 Table 4 (minimum requirements)
|
|
Handwheel Diameter
|
As per torque requirements
|
|
Weight
|
Approx. _____ kg (depending on size)
|
- TESTING & INSPECTION
|
Test
|
Standard / Requirement
|
|
Shell Test
|
BS 6755 / ISO 5208 – 1.5 x PN – No visible leakage
|
|
Seat Test (High Pressure)
|
1.1 x PN – Zero leakage
|
|
Seat Test (Low Pressure)
|
5–6 bar – Zero leakage
|
|
Stem Seal Test
|
Visual inspection during operation
|
|
Coating Test
|
Holiday detection, thickness measurement (250–300 microns)
|
|
Material Certification
|
EN 10204 3.1 / 2.2 (if required)
|
|
WRAS / ACS Approval
|
For potable water applications (optional)
|
- SPECIAL REQUIREMENTS & REMARKS
- Resilient Seated Design
- Gate is fully encapsulated with EPDM/NBR rubber using injection molding process .
- No exposed metal on gate – ensures 100% bubble-tight shut-off.
- Rubber bonded to ductile iron – no delamination, long service life.
- Non-Rising Stem (NRS)
- Stem does not rise when valve opens/closes.
- Suitable for buried service or limited space installations.
- Stem threads isolated from line media.
- Anti-Corrosion Coating
- Fusion Bonded Epoxy (FBE) coating inside and out.
- Certified for potable water (WRAS / ACS / KTW).
- Color: Blue (RAL 5012) / Black / Custom.
- Blowout-Proof Stem
- Stem retained by shoulder inside body.
- Triple O-ring sealing – no external leakage.
- Zero Leakage Performance
- Resilient seat design ensures tight shut-off even with debris.
- Self-cleaning wedge action.
- Optional Accessories
- T-Key operation (for buried service).
- Extension spindle for deep burial.
- Position indicator / opening limiter.
- Gearbox for larger sizes.
