Valve Type Rising Stem Gate Valve (OS&Y – Outside Screw & Yoke)
Body Material Cast Iron (ASTM A126 Class B / EN-GJL-250)
Seat Material Bronze (Integral or renewable)
Stem Material Brass (C36000 / C37700)
End Connection Flanged (ASME B16.1 Class 125 / EN 1092-2)
Operation Handwheel
Design Standard MSS SP-70 / ASME B16.34 (mod)
Face-to-Face ASME B16.10 / MSS SP-70 (Flanged ends)
Flange Dimension ASME B16.1 Class 125 / EN 1092-2 PN10/PN16
Inspection & Test API 598 / MSS SP-70
Pressure Rating Class 125 / PN10 / PN16
Size Range 2″ – 12″ (DN50 – DN300)



Description

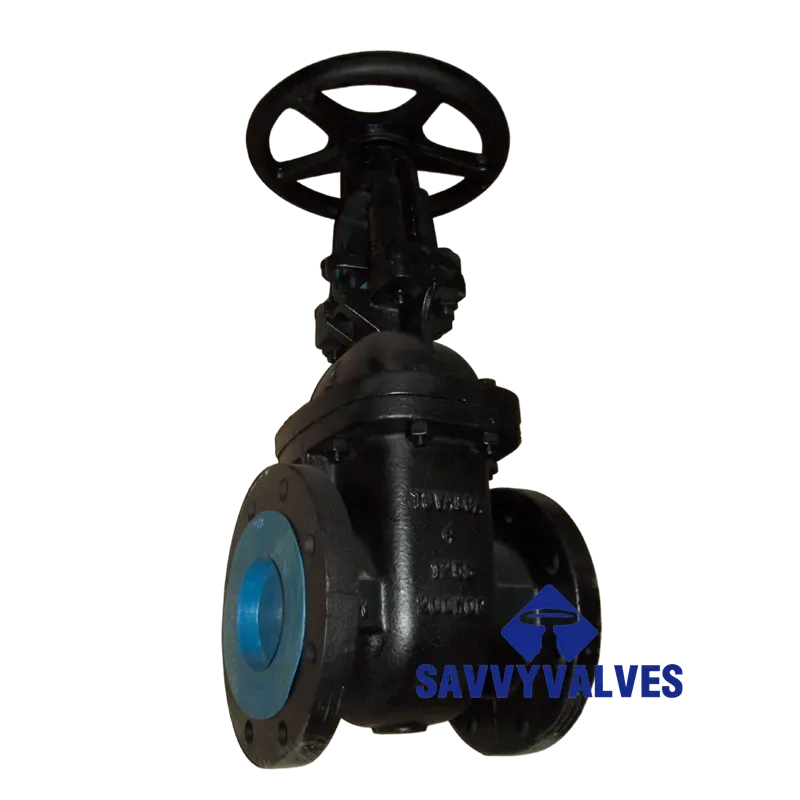

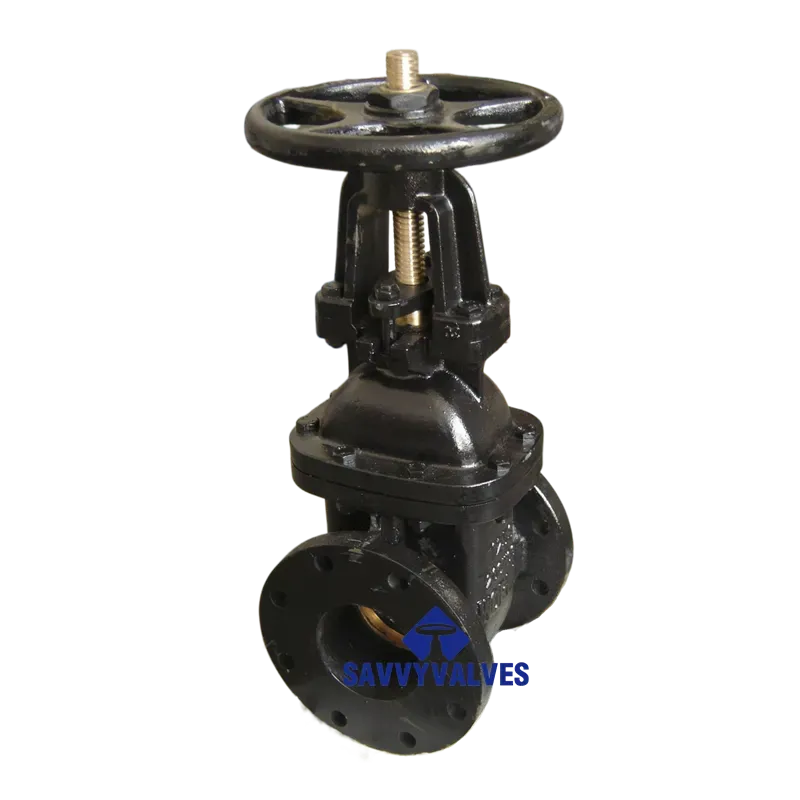

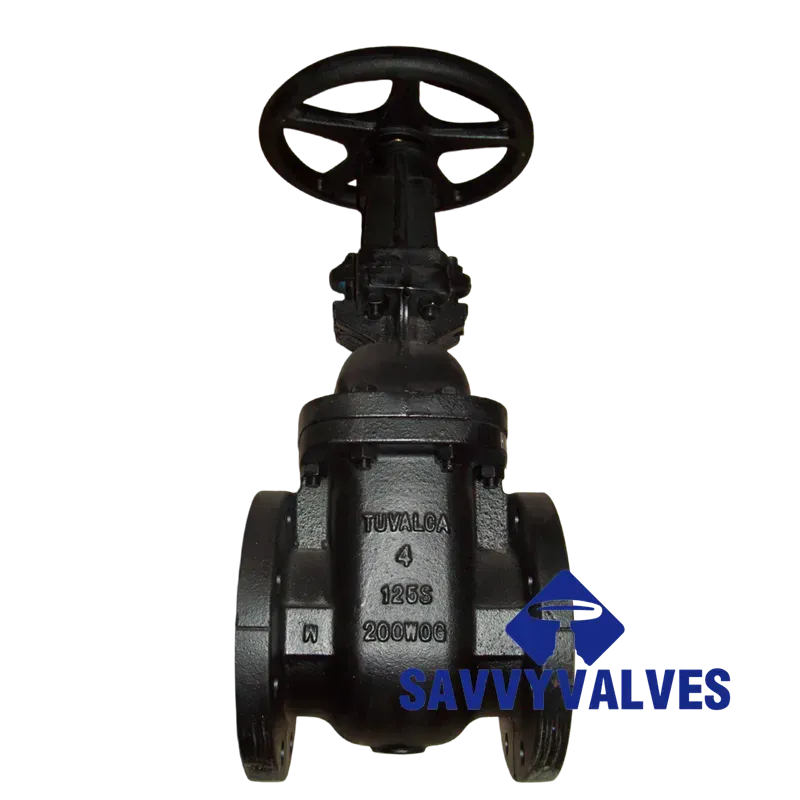

Technical Datasheet: Rising Stem Gate Valve
(Cast Iron Body / Bronze Seated / Brass Stem / Flanged / Handwheel)
|
Item |
Standard Configuration |
User Specification / Remarks |
|
Valve Type |
Rising Stem Gate Valve (OS&Y – Outside Screw & Yoke) |
Stem rises when valve opens |
|
Body Material |
Cast Iron (ASTM A126 Class B / EN-GJL-250) |
|
|
Seat Material |
Bronze (Integral or renewable) |
Bronze-to-bronze sealing |
|
Stem Material |
Brass (C36000 / C37700) |
Corrosion resistant |
|
End Connection |
Flanged (ASME B16.1 Class 125 / EN 1092-2) |
|
|
Operation |
Handwheel |
Malleable iron / Ductile iron handwheel |
|
Design Standard |
MSS SP-70 / ASME B16.34 (mod) |
Cast Iron Gate Valve Standard |
|
Face-to-Face |
ASME B16.10 / MSS SP-70 (Flanged ends) |
|
|
Flange Dimension |
ASME B16.1 Class 125 / EN 1092-2 PN10/PN16 |
|
|
Inspection & Test |
API 598 / MSS SP-70 |
|
|
Pressure Rating |
Class 125 / PN10 / PN16 |
|
|
Size Range |
2″ – 12″ (DN50 – DN300) |
|
|
Temperature Range |
-20°C to +150°C (Limitation of brass stem and bronze seats) |
|
|
Stem Type |
Rising Stem (OS&Y) |
Outside screw & yoke |
|
Wedge Type |
Solid wedge / Double disc (Optional) |
|
Feature |
Description |
Benefit |
|
Rising Stem (OS&Y) |
Stem rises when valve opens; visible position indicator |
Visual confirmation of valve position, threads outside fluid path |
|
Handwheel Operation |
Sturdy handwheel for manual operation |
Easy to operate, torque multiplication |
|
Bronze Seated |
Seat rings and wedge faces are bronze |
Excellent corrosion resistance, long life, smooth operation |
|
Full Port Design |
Straight-through full bore |
Low pressure drop, allows pigging |
|
Outside Screw & Yoke |
Stem threads are outside the valve, protected from media |
Longer stem life, easy lubrication |
|
Renewable Seat Rings |
Seat rings can be replaced (optional) |
Extended valve life |
|
Cast Iron Body |
Robust, cost-effective |
Suitable for water and non-corrosive services |
|
Flanged Connections |
Drilled per ASME/EN standards |
Easy installation and removal |
|
No. |
Part Name |
Material |
Remarks |
|
1 |
Body |
Cast Iron (ASTM A126 Class B) |
|
|
2 |
Bonnet |
Cast Iron (ASTM A126 Class B) |
|
|
3 |
Wedge / Gate |
Bronze (ASTM B62 / B584) |
Solid wedge, bronze faces |
|
4 |
Seat Ring (Body) |
Bronze (ASTM B62) |
Thread-in or pressed-in |
|
5 |
Stem |
Brass (C36000 / C37700) |
Rising stem (OS&Y) |
|
6 |
Stem Nut / Yoke Sleeve |
Bronze (ASTM B62) |
Threaded engagement with stem |
|
7 |
Packing |
Graphite / PTFE |
|
|
8 |
Gland / Gland Flange |
Cast Iron / Ductile Iron |
|
|
9 |
Yoke |
Cast Iron (ASTM A126 Class B) |
|
|
10 |
Bonnet Gasket |
Compressed Fiber / Graphite |
|
|
11 |
Bonnet Bolts / Studs |
Steel (Zinc Plated) / Stainless Steel |
|
|
12 |
Handwheel |
Malleable Iron / Ductile Iron |
|
|
13 |
Handwheel Nut |
Steel / Brass |
|
|
14 |
Nameplate |
Stainless Steel / Aluminum |
|
Item |
Specification |
|
Medium |
Water, Oil, Gas, Air, Steam, Non-corrosive Fluids |
|
Operating Temperature |
-20°C to +150°C (Brass stem limit) |
|
Max Working Pressure |
Class 125: 200 psi @ 100°F / 13.8 bar @ 38°C (Derate at higher temps) |
|
Seat Material |
Bronze-to-Bronze |
|
Sealing Performance |
API 598: Liquid – No visible leakage; Air – Class B permissible |
|
Flow Direction |
Bidirectional |
|
Flow Characteristic |
On-Off (Not for throttling) |
|
Bore Type |
Full Bore (Standard) |
|
Stem Design |
Outside Screw & Yoke (OS&Y), Rising Stem |
|
Handwheel Rotation |
Clockwise to Close |
|
Installation Position |
Any position |
|
Pressure Rating |
Shell Test (Hydrostatic) |
Seat Test (Hydrostatic) |
Low Pressure Seat Test (Pneumatic) |
|
Class 125 |
400 psi (2.8 MPa) |
200 psi (1.4 MPa) |
50-80 psi (0.34-0.55 MPa) |
|
PN10 |
15 bar (1.5 MPa) |
11 bar (1.1 MPa) |
0.6 bar (60 kPa) |
|
PN16 |
24 bar (2.4 MPa) |
17.6 bar (1.76 MPa) |
0.6 bar (60 kPa) |
|
*(Note: Tests performed per API 598 / EN 12266-1)* |
|
NPS |
DN (mm) |
L (Face-to-Face) mm |
H (Open) mm (approx) |
Handwheel Diameter (mm) |
Weight (kg) approx |
|
2″ |
50 |
178 |
280 |
160 |
18 |
|
2½” |
65 |
190 |
320 |
180 |
24 |
|
3″ |
80 |
203 |
360 |
200 |
32 |
|
4″ |
100 |
229 |
430 |
250 |
45 |
|
5″ |
125 |
254 |
500 |
280 |
60 |
|
6″ |
150 |
267 |
560 |
300 |
75 |
|
8″ |
200 |
292 |
700 |
350 |
115 |
|
10″ |
250 |
330 |
850 |
400 |
165 |
|
12″ |
300 |
356 |
1000 |
450 |
225 |
|
*(Note: For PN10/PN16 flanges, dimensions may vary slightly. Refer to certified GA drawing for exact dimensions.)* |
|
NPS |
DN (mm) |
Flange OD (mm) |
Bolt Circle (mm) |
Number of Bolts |
Bolt Size (in) |
|
2″ |
50 |
152 |
121 |
4 |
5/8″ |
|
2½” |
65 |
178 |
140 |
4 |
5/8″ |
|
3″ |
80 |
191 |
152 |
4 |
5/8″ |
|
4″ |
100 |
229 |
190 |
8 |
5/8″ |
|
5″ |
125 |
254 |
216 |
8 |
3/4″ |
|
6″ |
150 |
279 |
241 |
8 |
3/4″ |
|
8″ |
200 |
343 |
298 |
8 |
3/4″ |
|
10″ |
250 |
406 |
362 |
12 |
7/8″ |
|
12″ |
300 |
483 |
432 |
12 |
7/8″ |
|
*(Note: For PN10/PN16 flanges, refer to EN 1092-2 standards)* |
Design Notes:
Application Notes:
Note: This datasheet is prepared for a Rising Stem Gate Valve with cast iron body, bronze seats, brass stem, flanged ends (ASME B16.1 Class 125), and handwheel operation per MSS SP-70 / API 598. Ensure selected materials, pressure rating, and trim are compatible with the specific service conditions.
