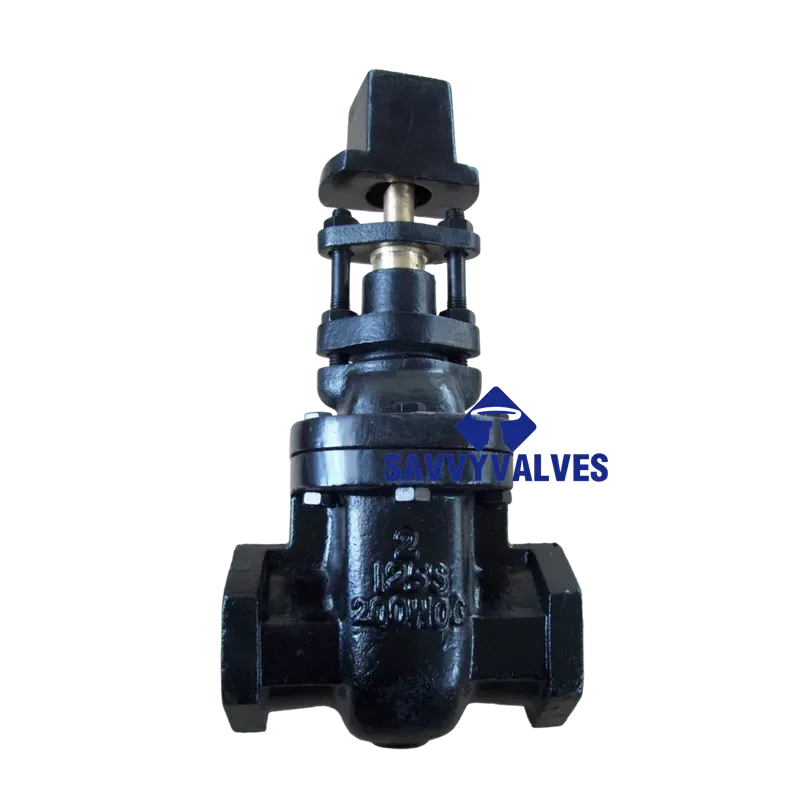

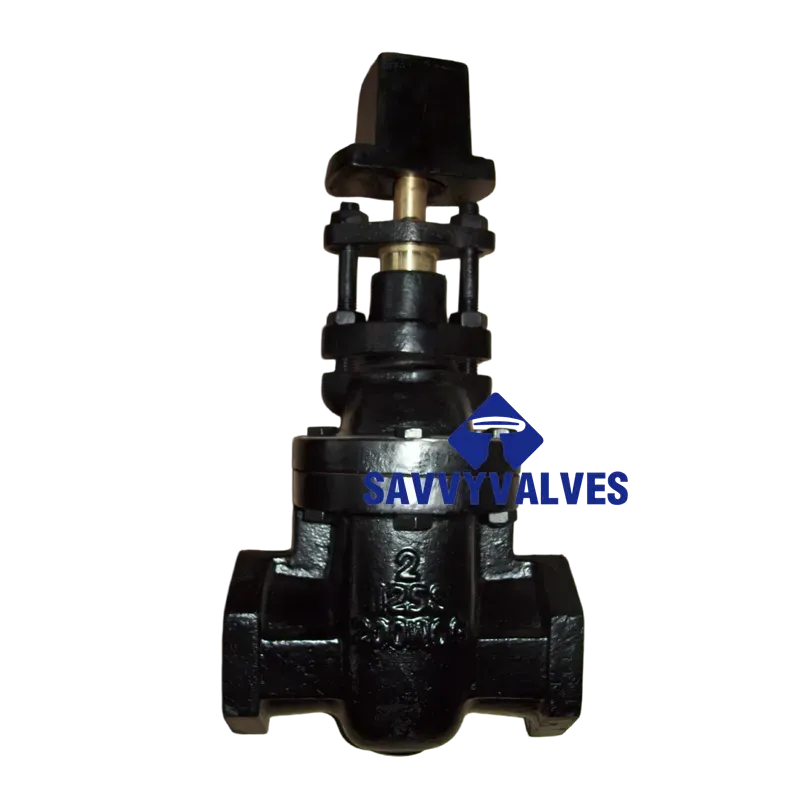

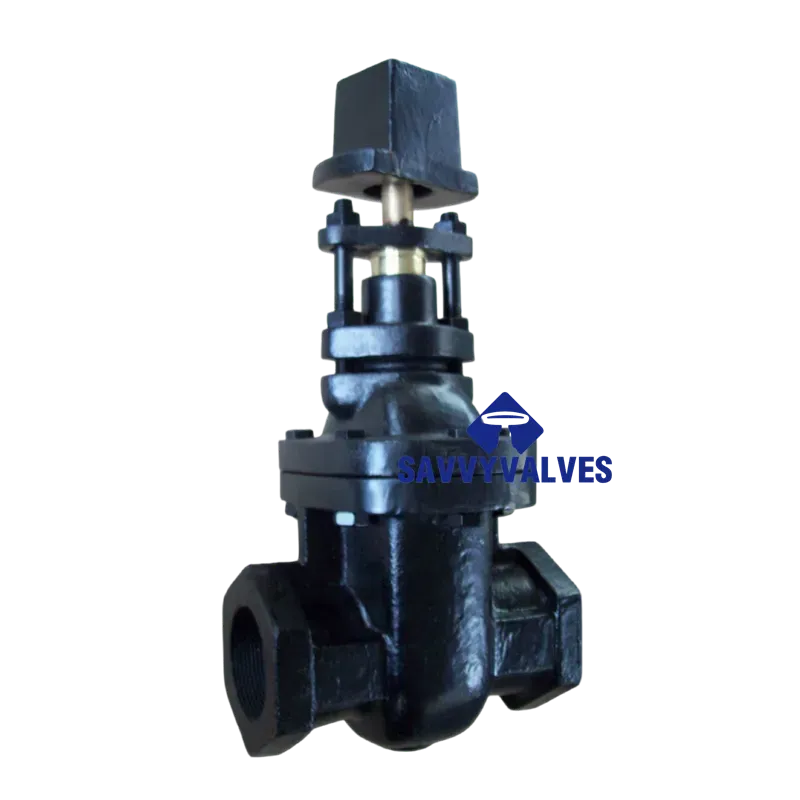

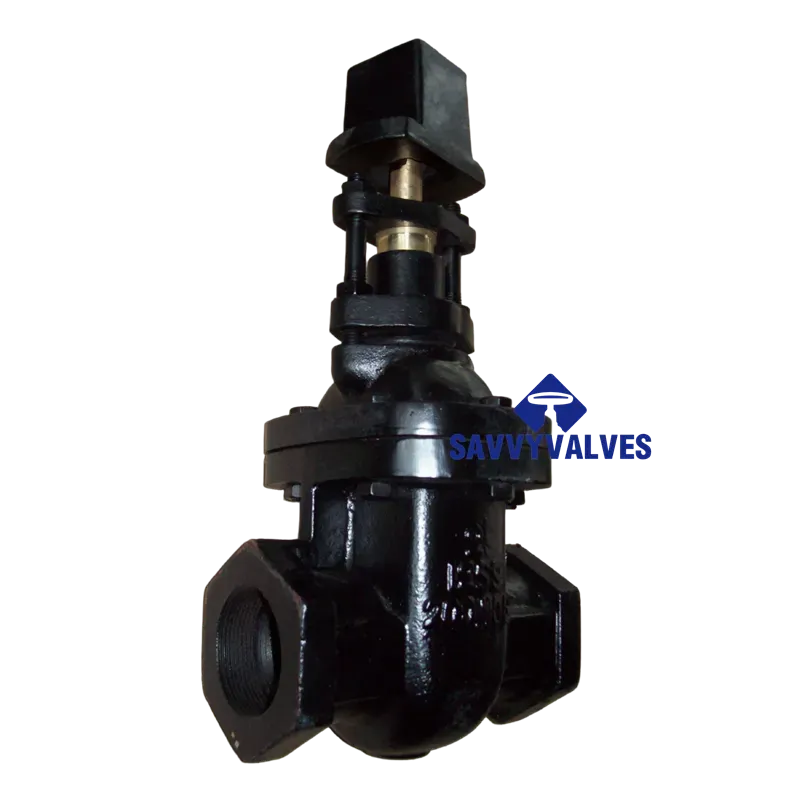

Technical Datasheet: Non-Rising Stem Gate Valve
(Cast Iron Body / Bronze Seated / Brass Stem / NPT Threaded / Square Head)
|
Item |
Standard Configuration |
User Specification / Remarks |
|
Valve Type |
Non-Rising Stem Gate Valve (Inside Screw) |
Stem does not rise; ideal for limited space |
|
Body Material |
Cast Iron (ASTM A126 Class B / EN-GJL-250) |
|
|
Seat Material |
Bronze (Integral or renewable) |
Bronze-to-bronze sealing |
|
Stem Material |
Brass (C36000 / C37700) |
Corrosion resistant |
|
End Connection |
Threaded (Female NPT per ASME B1.20.1) |
|
|
Operation |
Square Head (For wrench operation) |
No handwheel |
|
Design Standard |
MSS SP-70 / MSS SP-80 (Bronze trim) / ASME B16.34 (mod) |
|
|
Face-to-Face |
Manufacturer standard per MSS SP-70 (Threaded ends) |
|
|
Inspection & Test |
API 598 / MSS SP-70 |
|
|
Pressure Rating |
Class 125 / Class 150 (Optional) |
PN10 / PN16 available |
|
Size Range |
½” – 4″ (DN15 – DN100) |
|
|
Temperature Range |
-20°C to +150°C (Limitation of brass stem and bronze seats) |
|
|
Stem Type |
Non-rising stem (Inside screw) |
|
|
Wedge Type |
Solid wedge / Double disc (Optional) |
|
Feature |
Description |
Benefit |
|
Non-Rising Stem |
Stem rotates but does not move linearly; threads inside valve |
Suitable for tight spaces, buried service, and indicator not needed |
|
Square Head Operation |
Machined square on top of stem for wrench operation |
Simple, robust, no handwheel to break |
|
Bronze Seated |
Seat rings and wedge faces are bronze |
Excellent corrosion resistance, long life, smooth operation |
|
Full Port Design |
Straight-through full bore |
Low pressure drop, allows pigging |
|
Inside Screw |
Stem threads are inside the valve, protected from environment |
Longer stem life, no external threads to corrode |
|
Renewable Seat Rings |
Seat rings can be replaced (optional) |
Extended valve life |
|
Cast Iron Body |
Robust, cost-effective |
Suitable for water and non-corrosive services |
|
No. |
Part Name |
Material |
Remarks |
|
1 |
Body |
Cast Iron (ASTM A126 Class B) |
|
|
2 |
Bonnet |
Cast Iron (ASTM A126 Class B) |
|
|
3 |
Wedge / Gate |
Bronze (ASTM B62 / B584) |
Solid wedge, bronze faces |
|
4 |
Seat Ring (Body) |
Bronze (ASTM B62) |
Thread-in or pressed-in |
|
5 |
Stem |
Brass (C36000 / C37700) |
Non-rising stem |
|
6 |
Stem Nut / Thrust Washer |
Bronze / Brass |
|
|
7 |
Packing |
Graphite / PTFE |
|
|
8 |
Gland / Gland Follower |
Cast Iron / Brass |
|
|
9 |
Bonnet Gasket |
Compressed Fiber / Graphite |
|
|
10 |
Bonnet Bolts / Studs |
Steel (Zinc Plated) / Stainless Steel |
|
|
11 |
Square Head / Operating Nut |
Cast Iron / Malleable Iron |
Square drive |
|
12 |
Nameplate |
Stainless Steel / Aluminum |
|
Item |
Specification |
|
Medium |
Water, Oil, Gas, Air, Steam, Non-corrosive Fluids |
|
Operating Temperature |
-20°C to +150°C (Brass stem limit) |
|
Max Working Pressure |
Class 125: 200 psi @ 100°F / 13.8 bar @ 38°C (Derate at higher temps) |
|
Seat Material |
Bronze-to-Bronze |
|
Sealing Performance |
API 598: Liquid – No visible leakage; Air – Class B permissible |
|
Flow Direction |
Bidirectional |
|
Flow Characteristic |
On-Off (Not for throttling) |
|
Bore Type |
Full Bore (Standard) |
|
Stem Design |
Inside Screw, Non-Rising |
|
Installation Position |
Any position (but horizontal preferred for square head access) |
|
Pressure Rating |
Shell Test (Hydrostatic) |
Seat Test (Hydrostatic) |
Low Pressure Seat Test (Pneumatic) |
|
Class 125 |
400 psi (2.8 MPa) |
200 psi (1.4 MPa) |
50-80 psi (0.34-0.55 MPa) |
|
Class 150 |
425 psi (2.9 MPa) |
315 psi (2.2 MPa) |
50-80 psi (0.34-0.55 MPa) |
|
*(Note: Tests performed per API 598 / MSS SP-70)* |
|
NPS |
DN (mm) |
L (Face-to-Face) mm |
H (Closed) mm (approx) |
Square Head Size (in) |
Weight (kg) approx |
|
½” |
15 |
79 |
70 |
0.48 (12.2mm) |
1.2 |
|
¾” |
20 |
92 |
80 |
0.48 (12.2mm) |
1.6 |
|
1″ |
25 |
111 |
95 |
0.60 (15.2mm) |
2.3 |
|
1¼” |
32 |
120 |
105 |
0.60 (15.2mm) |
3.0 |
|
1½” |
40 |
152 |
120 |
0.75 (19.1mm) |
4.2 |
|
2″ |
50 |
172 |
140 |
0.75 (19.1mm) |
6.0 |
|
2½” |
65 |
195 |
165 |
0.88 (22.4mm) |
9.5 |
|
3″ |
80 |
210 |
185 |
0.88 (22.4mm) |
13.5 |
|
4″ |
100 |
254 |
225 |
1.00 (25.4mm) |
21.0 |
|
(Note: Dimensions are for reference only. Refer to certified GA drawing for exact dimensions.) |
Design Notes:
Application Notes:
Note: This datasheet is prepared for a Non-Rising Stem Gate Valve with cast iron body, bronze seats, brass stem, NPT ends, and square head operation per MSS SP-70 / API 598. Ensure selected materials, pressure rating, and trim are compatible with the specific service conditions.
