Description
Technical Data Sheet

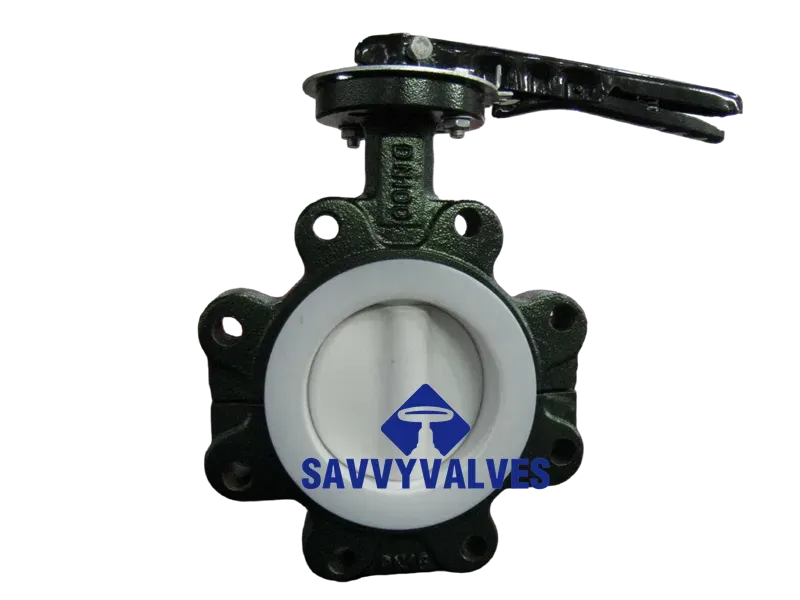

Fully Lined Fluorine Butterfly Valve – Lug Type – Split Body – Manual Operation
Product Name: Wafer Type Fully Lined Fluorine Butterfly Valve (Split Body)
- General Information
|
Item
|
Specification
|
|
Valve Type
|
Concentric Butterfly Valve, Fully Lined with FEP (Fluorinated Ethylene Propylene)
|
|
Body Design
|
Split Body (Two-piece body, suitable for lug mounting, facilitates liner replacement)
|
|
Connection Type
|
Lug Type (Tapped lug holes for dead-end service), conforming to ISO 5752 / GB/T 12238
|
|
Nominal Size
|
DN50 ~ DN600 (2″ ~ 24″)
|
|
Pressure Rating
|
PN10 / PN16 / Class 150LB
|
|
Medium Suitability
|
Strong acids, strong alkalis, organic solvents, corrosive gases/liquids
|
|
Operating Temperature
|
-20°C to +150°C (FEP long-term ≤120°C; PTFE seat suitable for wide temp range)
|
|
Operation
|
Manual (Lever Handle or Gearbox, depending on torque requirement)
|
- Design Standards & Specifications
|
Item
|
Standard
|
|
Design & Manufacturing
|
GB/T 12238, API 609, MSS SP-67
|
|
Face-to-Face Dimensions
|
ISO 5752, GB/T 12221 (Series 13/14)
|
|
Flange Connection Dimensions
|
GB/T 17241.6, HG/T 20592, ASME B16.5 (Conforming to wafer/lug type)
|
|
Pressure Testing
|
GB/T 13927, API 598
|
|
Lining Quality
|
HG/T 4077, HG/T 4078
|
- Main Component Materials
|
Part Name
|
Material Specification
|
Remarks
|
|
Body
|
Ductile Iron (QT450-10) / Cast Steel (WCB)
|
Split body construction, internal/external coated with anti-corrosion paint
|
|
Lining
|
FEP (Fluorinated Ethylene Propylene / F46)
|
Thickness ≥3mm, fully encapsulates body passage and flange sealing faces
|
|
Disc
|
Ductile Iron / Cast Steel (FEP Lined) or Stainless Steel (FEP Overmolded)
|
Fully lined to prevent media contact with metal
|
|
Seat (Seal Ring)
|
PTFE (Polyetrafluoroethylene)
|
Pure PTFE or Reinforced PTFE; Replaceable, provides excellent chemical resistance and low friction
|
|
Stem / Shaft
|
Stainless Steel 2Cr13 / 304
|
Corrosion-resistant, pinned connection to disc
|
|
O-Ring / Packing
|
Viton (FPM) / PTFE
|
Stem sealing to prevent external leakage
|
|
Manual Operator
|
Cast Iron Lever / Aluminum Gearbox
|
Includes positioning/locking device
|
- Technical Parameters & Dimensions (Reference, PN10/PN16)
|
Nominal Size (DN)
|
Face-to-Face (L) mm
|
Flange Bore Dia. (Φd) mm
|
Bolt Circle Dia. (D1) mm
|
Disc Diameter (ΦD) mm
|
Operator Type
|
Approx. Weight (kg)
|
|
DN50
|
43
|
125
|
110
|
102
|
Lever
|
5
|
|
DN65
|
46
|
145
|
130
|
122
|
Lever
|
6.5
|
|
DN80
|
46
|
160
|
150
|
138
|
Lever
|
8
|
|
DN100
|
52
|
180
|
170
|
158
|
Lever
|
10
|
|
DN125
|
56
|
210
|
200
|
188
|
Lever
|
13
|
|
DN150
|
56
|
240
|
225
|
212
|
Lever
|
16
|
|
DN200
|
60
|
295
|
280
|
268
|
Gearbox
|
25
|
|
DN250
|
68
|
350
|
335
|
320
|
Gearbox
|
35
|
|
DN300
|
78
|
400
|
395
|
370
|
Gearbox
|
50
|
|
DN350
|
78
|
460
|
445
|
430
|
Gearbox
|
65
|
|
DN400
|
102
|
515
|
495
|
482
|
Gearbox
|
85
|
|
DN450
|
114
|
565
|
550
|
532
|
Gearbox
|
110
|
|
DN500
|
127
|
620
|
600
|
585
|
Gearbox
|
140
|
|
DN600
|
154
|
725
|
705
|
685
|
Gearbox
|
190
|
*Note: The above dimensions are based on the PN16 standard. Actual dimensions should conform to the manufacturer’s certified drawings. Lug connections comply with HG/T 20592-2009 (PN10/16).*
- Testing & Inspection
|
Test Item
|
Test Pressure (PN10)
|
Test Pressure (PN16)
|
Acceptance Criteria
|
|
Shell Test
|
1.5 × PN = 15 bar
|
1.5 × PN = 24 bar
|
No visible leakage, no structural damage
|
|
Seat Test (PTFE)
|
1.1 × PN = 11 bar
|
1.1 × PN = 17.6 bar
|
Bi-directional sealing, zero leakage (Class A per GB/T 13927)
|
|
Lining Spark Test
|
5~20 kV depending on thickness
|
No breakdown
|
|
- Product Features & Options
- Split Body Design: The valve body consists of two halves bolted together, facilitating the molding process of the lining and allowing for easier liner replacement or maintenance.
- Fully Lined Construction: All wetted metal surfaces (including body passage, flange sealing faces, and disc) are encapsulated with fluoroplastic, providing excellent corrosion resistance.
- PTFE Seat: Provides low friction coefficient, excellent chemical resistance, and long service life. Suitable for most corrosive media.
- Lug Type Connection: The valve body has threaded lugs, allowing it to be bolted between flanges using studs. This permits dead-end service and allows removal of one side of the pipeline without affecting the other.
- Manual Operation:
- DN50-DN200: Standard Lever Handle, allowing variable opening positions with a locating pin to lock in fully open/closed positions.
- DN250-DN600: Standard Gearbox with self-locking function for easy operation, complete with a handwheel.
- Optional Configurations:
- Extended stem or extended lever handle (for insulated pipelines).
- Anti-static device (conforming to ISO 5211).
- Position indicator or limit switch.
- Installation & Maintenance Notes
- Ensure the disc is in the closed position during installation to avoid forcing alignment.
- Use corrosion-resistant gaskets (e.g., PTFE gaskets) for flange connections.
- Do not force the handle when the valve is fully closed to prevent damage to the PTFE seat.
- Regularly check the tightness of handle or gearbox mounting bolts and maintain lubrication.
Note: This data sheet provides general specifications. For specific projects, please refer to the manufacturer’s final drawings and parameters.
