1″-600LB-SW A105 Forged Globe Valve

Technical Datasheet

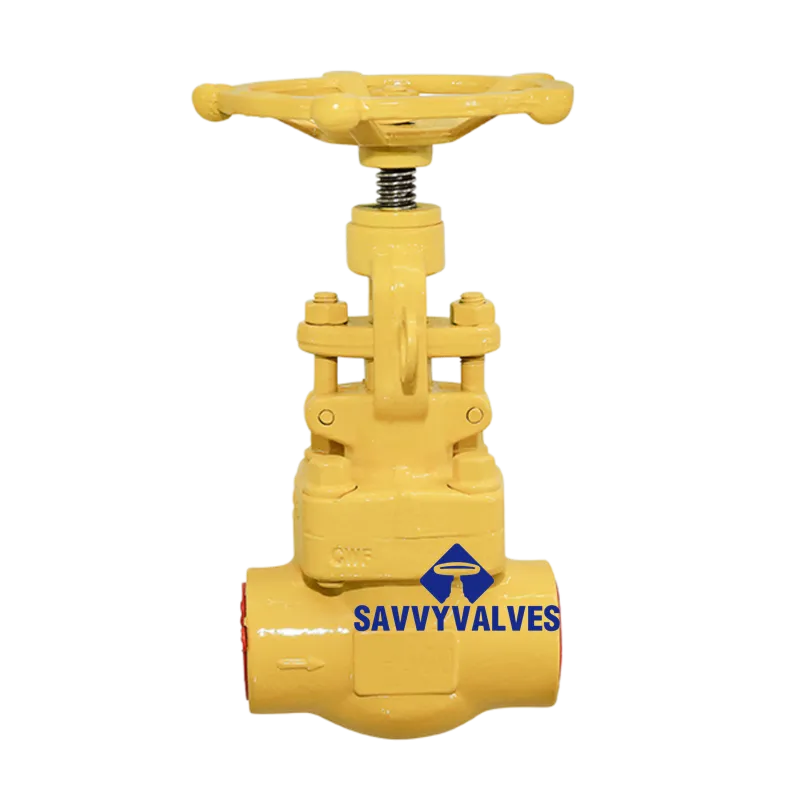

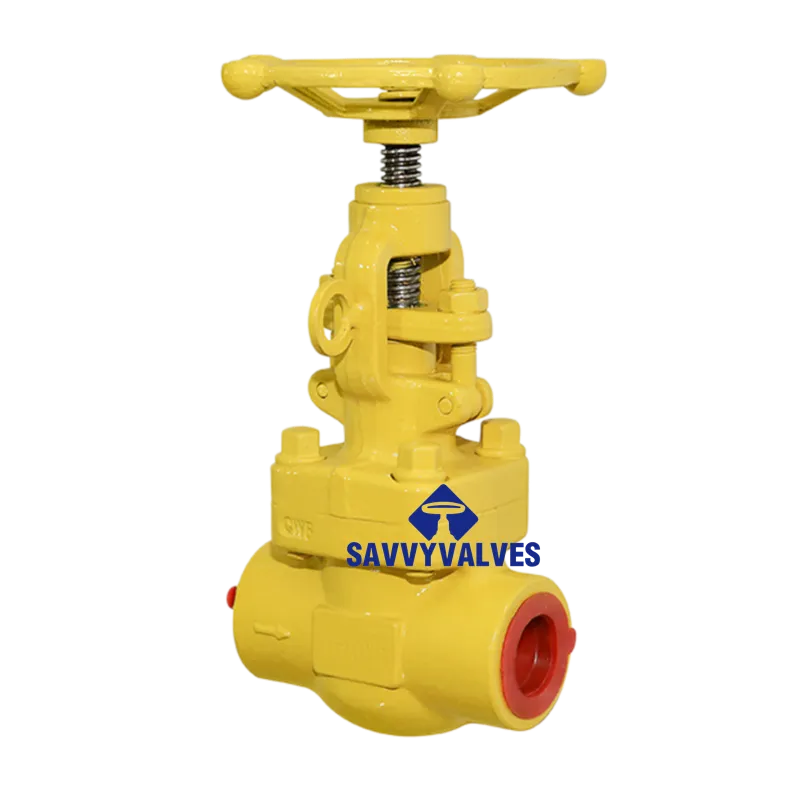

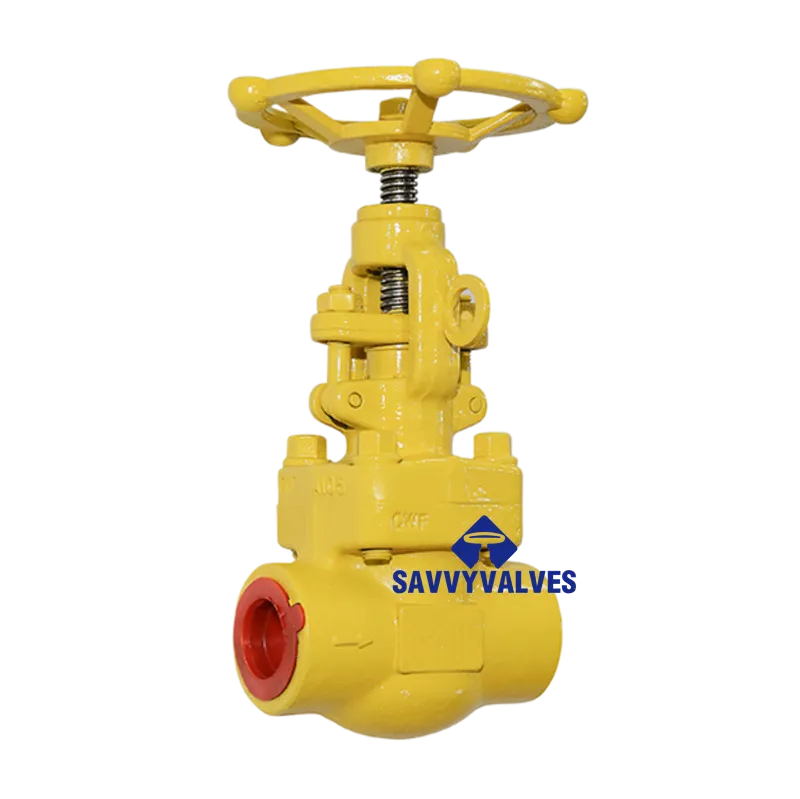

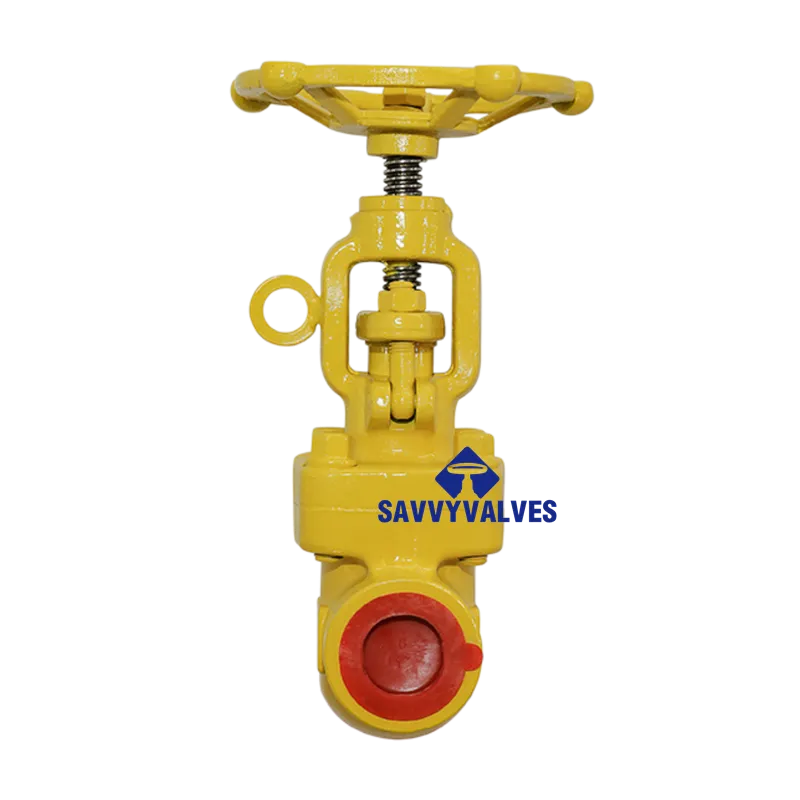

Product Name: Forged Steel A105 Globe Valve
Model: 1″-600LB SW End Forged Globe Valve (Body Material: ASTM A105)

1. General Information

2. Technical Specifications

3. Main Material of Parts

4. Main Dimensions & Connection Data (Unit: mm)

Note: Socket Weld ends conform to ASME B16.11.

Note: Dimensions above are typical. Final dimensions should be based on approved manufacturer drawings.

5. Applicable Design Standards

• Design & Manufacture: API 602 (Compact Forged Valves) / ASME B16.34
• Face-to-Face Dimensions: ASME B16.10 or API 602
• End Connections: ASME B16.11 (Socket Weld)
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598

6. Product Features

1. Forged Construction: ASTM A105 carbon steel body provides high strength and reliability under high-pressure conditions (Class 600).
2. Socket Weld Ends: Suitable for permanent, leak-free piping systems, eliminating flange leaks.
3. Precise Flow Control: Globe valve design offers good throttling and shut-off capability.
4. Hardened Trim: Standard 13Cr stainless steel trim provides wear resistance and tight sealing.
5. Rising Stem: Provides visual indication of valve position.

Remarks:

• Pressure-Temperature Rating: This datasheet is based on standard carbon steel material ratings. For specific temperature limits, refer to ASME B16.34.
• This is a general-purpose forged globe valve suitable for non-corrosive hydrocarbon services.
