Dual Plate Wafer Check Valve Technical Data Sheet
- General Specifications
|
Item
|
Specification
|
|
Valve Type
|

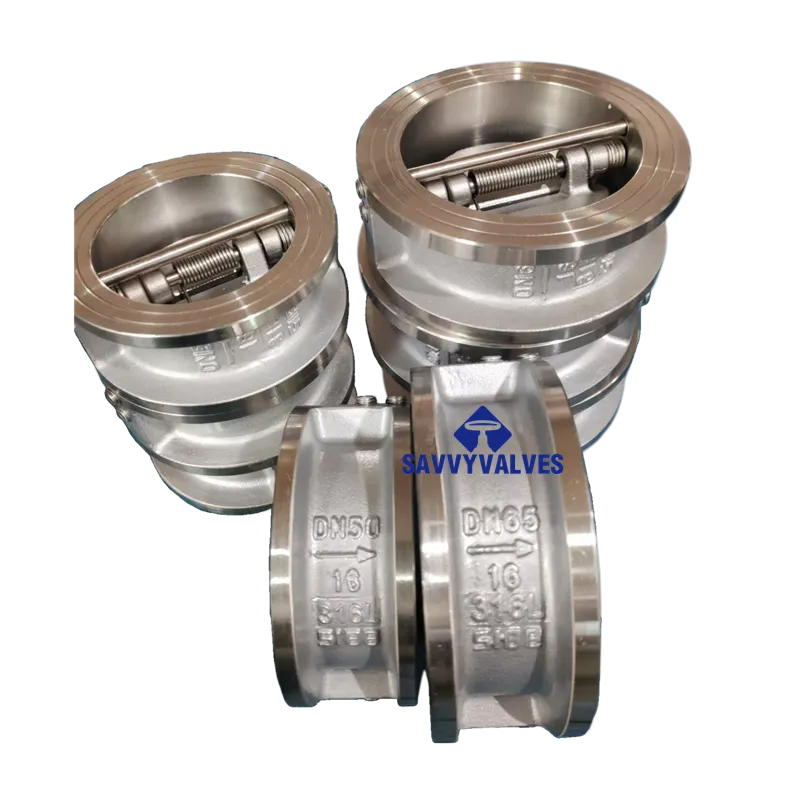

Wafer Dual Plate Check Valve
|
|
Pressure Rating
|
PN16 (Equivalent to Class 150)
|
|
Nominal Size
|
DN50 – DN600 (NPS 2″ – 24″) Specify as required
|
|
End Connection
|
Wafer Type / Lug Type Select as required
|
|
Face to Face Dimension
|
API 594 / EN 558 Series 20
|
|
Sealing Type
|
Metal-to-Metal Hard Seal
|
|
Medium
|
Water, Oil, Gas, and Corrosive Media (Compatible with CF3M)
|
|
Operating Temperature
|
-29°C to +425°C (-20°F to +800°F)
|
|
Body Material
|
ASTM A351 Grade CF3M (Equivalent to 316L Stainless Steel)
|
|
Disc (Plate) Material
|
ASTM A351 Grade CF3M (Equivalent to 316L Stainless Steel)
|
|
Shaft / Hinge Pin Material
|
ASTM A276 Type 316 / 316L Stainless Steel
|
|
Seat / Sealing Surface
|
Hard Facing (Stellite / Cobalt-based Alloy) on Body
|
- Bill of Materials (ASTM Standards)
|
Part Name
|
Material
|
Material Grade / Specification
|
ASTM Standard
|
|
Body
|
Austenitic Stainless Steel
|
CF3M
|
ASTM A351
|
|
Discs (Dual Plate)
|
Austenitic Stainless Steel
|
CF3M
|
ASTM A351
|
|
Shaft / Hinge Pin
|
Precipitation Hardening / SS
|
17-4PH / 316 SS
|
ASTM A564 / A276
|
|
Seat Ring (Integral)
|
Hardfaced Alloy
|
Stellite (or equivalent)
|
–
|
|
Spring (Torsion)
|
High-Temperature Alloy
|
Inconel X-750 / 17-7PH
|
ASTM A638 / A693
|
|
Locating Dowel Pin
|
Stainless Steel
|
Type 316
|
ASTM F593
|
|
Gasket / O-Ring (Opt.)
|
Flexible Graphite / Viton
|
–
|
–
|
- Technical Parameters & Performance
|
Item
|
Unit
|
Value / Description
|
|
Pressure Testing
|
|
API 598 / ASME B16.34
|
|
– Shell Hydrostatic Test
|
psi (MPa)
|
1.5 x PN (Appx. 348 psi / 2.4 MPa)
|
|
– High Pressure Seat Test
|
psi (MPa)
|
1.1 x PN (Appx. 255 psi / 1.76 MPa)
|
|
– Low Pressure Pneumatic Test
|
psi (MPa)
|
80 psi (0.6 MPa)
|
|
Operational Limits
|
|
|
|
– Max. Flow Velocity
|
ft/s (m/s)
|
Water: ≤ 16 ft/s (5 m/s); Gas: ≤ 164 ft/s (50 m/s)
|
|
– Closure Pressure
|
|
Backpressure prevents reverse flow. (Seat Leakage: Per API 598 / ISO 5208 Rate D for Metal Seats)
|
|
Disc Action
|
|
Spring-assisted automatic closure. Recommended installation on horizontal lines with shaft vertical, or vertical lines with upward flow.
|
- Dimensions & Connection Data (Wafer Type, Units: mm / inches)
Note: Dimensions are for reference. Please refer to the specific manufacturer’s drawing for exact fit.
|
Size DN (NPS)
|
Valve Length L (mm)
|
Flange Dia. D (mm)
|
Bolt Circle K (mm)
|
Recommended Bolts
|
Approx. Weight (kg)
|
|
50 (2″)
|
43
|
165
|
125
|
4 x M16
|
~2.5
|
|
80 (3″)
|
64
|
200
|
160
|
8 x M16
|
~5.0
|
|
100 (4″)
|
64
|
220
|
180
|
8 x M16
|
~7.5
|
|
150 (6″)
|
76
|
285
|
240
|
8 x M20
|
~14.0
|
|
200 (8″)
|
95
|
340
|
295
|
12 x M20
|
~25.0
|
|
250 (10″)
|
114
|
405
|
355
|
12 x M24
|
~38.0
|
|
300 (12″)
|
114
|
460
|
410
|
12 x M24
|
~55.0
|
|
350 (14″)
|
127
|
520
|
470
|
16 x M24
|
~75.0
|
|
400 (16″)
|
140
|
580
|
525
|
16 x M27
|
~95.0
|
- Applicable Standards
- Design & Manufacture: API 594, ASME B16.34
- Face-to-Face: API 594, ISO 5752 Series 20
- Flange Dimensions: ASME B16.5 (for Class 150), ASME B16.47
- Pressure Testing: API 598, ISO 5208
- Material (Body/Disc): ASTM A351 Grade CF3M
- Material (Other): ASTM A276, ASTM A564, etc.
- Marking: MSS SP-25
- Remarks
- Material Characteristics: ASTM A351 CF3M is the cast equivalent of UNS S31603 (316L) . It features ultra-low carbon content, providing excellent resistance to intergranular corrosion after welding and in chloride environments.
- Metal Seated Feature: This valve features a Metal-to-Metal Hard Seal, making it suitable for high-temperature applications. The allowable leakage rate typically conforms to ISO 5208 Rate D(or API 598) for metal seats (a minute leakage is permissible; zero leakage is generally not guaranteed for standard metal seats).
- Flow Direction: A permanent flow directional arrow is cast or marked on the valve body. Installation must align with the pipeline flow direction.
- Installation Guidance: Best installed in horizontal pipelines with the shaft in a vertical position. For vertical installations, flow must be in the upward direction to allow the discs to open properly.
