Description

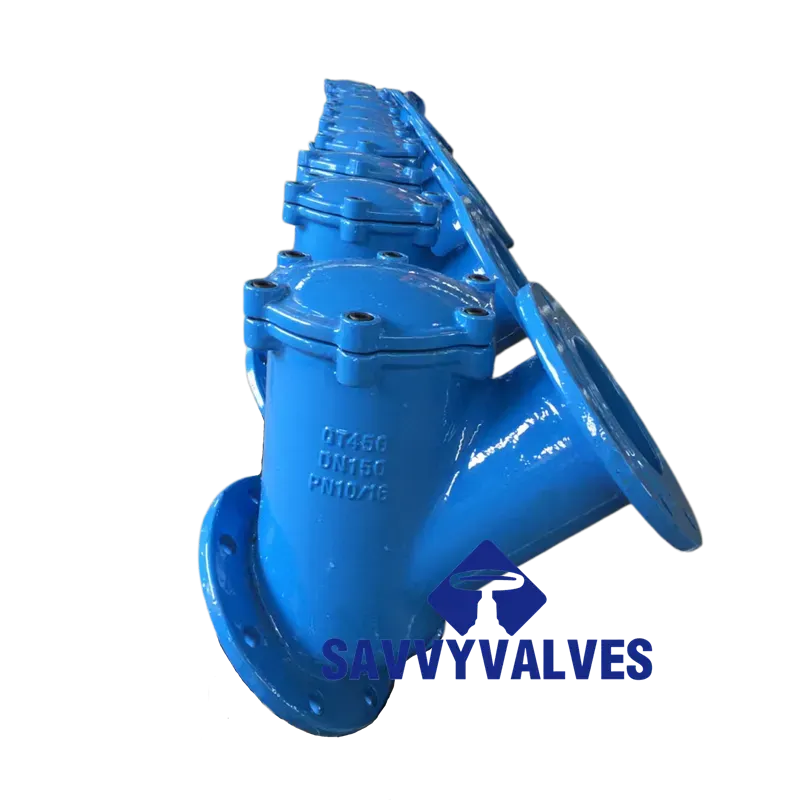

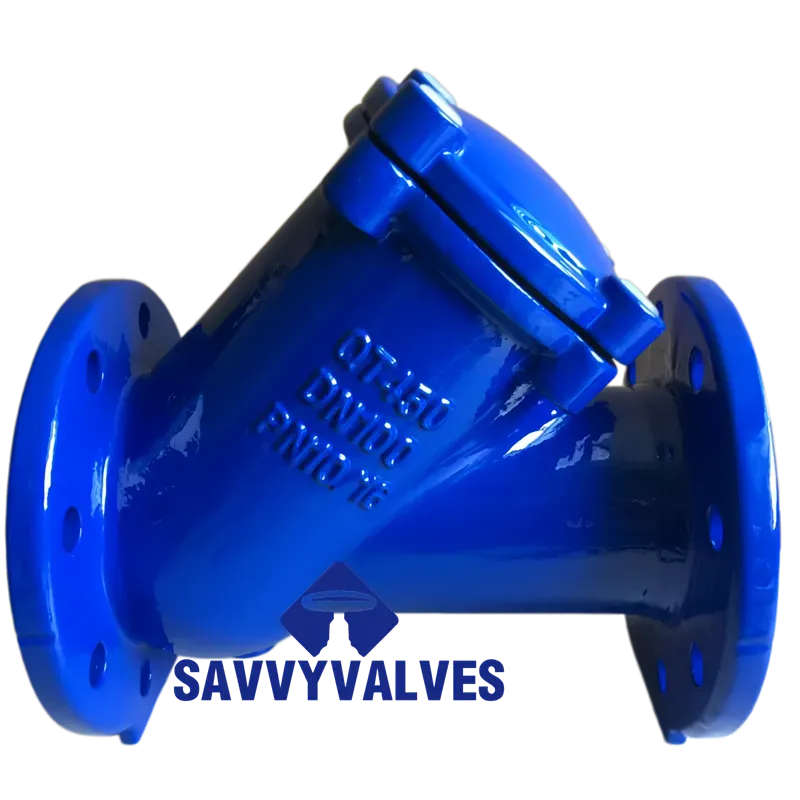

Technical Datasheet: Ball Check Valve
(Ductile Iron Body / Carbon Steel Ball Lined with EPDM)
- General Information
|
Item
|
Standard Configuration
|
User Specification / Remarks
|
|
Valve Type
|
Ball Check Valve (Free Floating Ball Design)
|
|
|
Body Material
|
Ductile Iron (ASTM A536 Grade 65-45-12 / GGG-50)
|
|
|
Ball Material
|
Carbon Steel + Fully Lined EPDM
|
Free Floating Ball
|
|
Nominal Size
|
2″ – 12″ (DN50 – DN300)
|
|
|
Pressure Rating
|
Class 125 / Class 150 / PN10 / PN16
|
|
|
End Connection
|
Flanged (FF / RF) / Threaded (NPT / BSP)
|
|
|
Design Standard
|
API 594 / Manufacturer Standard
|
|
|
Face-to-Face
|
API 594 Short Pattern / Manufacturer Standard
|
|
|
Flange Dimension
|
ASME B16.1 (Class 125) / ASME B16.5 (Class 150) / EN 1092-2
|
|
|
Inspection & Test
|
API 598 / EN 12266-1
|
|
- Bill of Materials (Main Components)
|
No.
|
Part Name
|
Standard Material
|
Optional Material / Remarks
|
|
1
|
Body
|
Ductile Iron (ASTM A536 65-45-12)
|
Epoxy Coated (Internal/External)
|
|
2
|
Cap / Cover
|
Ductile Iron (ASTM A536 65-45-12)
|
Epoxy Coated
|
|
3
|
Ball
|
Carbon Steel + EPDM Lined (Fully)
|
WCB / WCB + EPDM (Vulcanized)
|
|
4
|
Seat
|
Integral (Body Seat)
|
EPDM Lined / Buna-N
|
|
5
|
Ball Stop / Cage
|
Ductile Iron / Carbon Steel
|
Retains ball in flow path
|
|
6
|
Gasket
|
Compressed Non-Asbestos / EPDM
|
|
|
7
|
Cover Bolt
|
Carbon Steel (Zinc Plated) / Stainless Steel
|
ASTM A307 / A193-B8
|
- Technical Parameters & Performance
|
Item
|
Specification
|
|
Medium
|
Water, Wastewater, Slurries, Sewage, Fluids with Solids
|
|
Operating Temp.
|
-20°C ~ +100°C (EPDM Lining)
|
|
Max Operating Pressure
|
Up to 200 psi / 16 bar (Depending on pressure class)
|
|
Flow Direction
|
Horizontal or Vertical Upwards (Ball lifts to open)
|
|
Sealing
|
Bubble Tight Shut-Off (Soft-Seated)
|
|
Lining Material
|
EPDM (Ethylene Propylene Diene Monomer) – Excellent for water, abrasion resistance, and mild chemicals
|
|
Ball Action
|
Free floating ball lifts off seat when flow enters, drops back to seal when flow reverses
|
|
Features
|
Non-slam operation, ideal for dirty fluids and slurries
|
- Test Pressure (Reference: Class 150 / PN16)
|
Pressure Rating
|
Shell (Hydrostatic)
|
Seat (Hydrostatic)
|
Low Pressure Seat (Air)
|
|
Class 150
|
425 psi (2.9 MPa)
|
315 psi (2.2 MPa)
|
50 – 80 psi (0.34 – 0.55 MPa)
|
|
PN16
|
24 bar (2.4 MPa)
|
17.6 bar (1.76 MPa)
|
0.6 bar (0.06 MPa)
|
|
*(Note: Specific values shall be performed per API 598 / EN 12266.)*
|
|
|
|
- Dimensions & Weight (Reference: Class 150 Flanged, Short Pattern)
|
NPS
|
L (Face-to-Face) mm
|
H (Approx.) mm
|
Weight (kg) Approx.
|
|
2″
|
150
|
95
|
8
|
|
3″
|
180
|
120
|
14
|
|
4″
|
200
|
145
|
22
|
|
6″
|
240
|
195
|
40
|
|
8″
|
280
|
240
|
65
|
|
10″
|
320
|
290
|
95
|
|
(Note: Dimensions may vary by manufacturer; please refer to certified GA drawing)
|
|
|
|
- Special Requirements / Options
- Ball Material: Carbon Steel Lined EPDM / Stainless Steel Lined EPDM / Solid EPDM Ball
- Soft Seat Material: EPDM / Buna-N / Viton / Neoprene
- Lining Color: Black / Custom
- Test Certificate: EN 10204 3.1
- Coating: External Epoxy Coating (Min. 250 microns)
- Special Cleaning: For Potable Water (NSF/ANSI 61)
- Accessories: Drain Plug / Vent Plug
Note: This datasheet is prepared for a Ball Check Valve with EPDM lined ball. Suitable for handling fluids containing suspended solids, slurries, and wastewater where a traditional swing or lift check valve may clog or fail.
