1-1/2″-800LB Y Pattern Strainer

TECHNICAL DATA SHEET

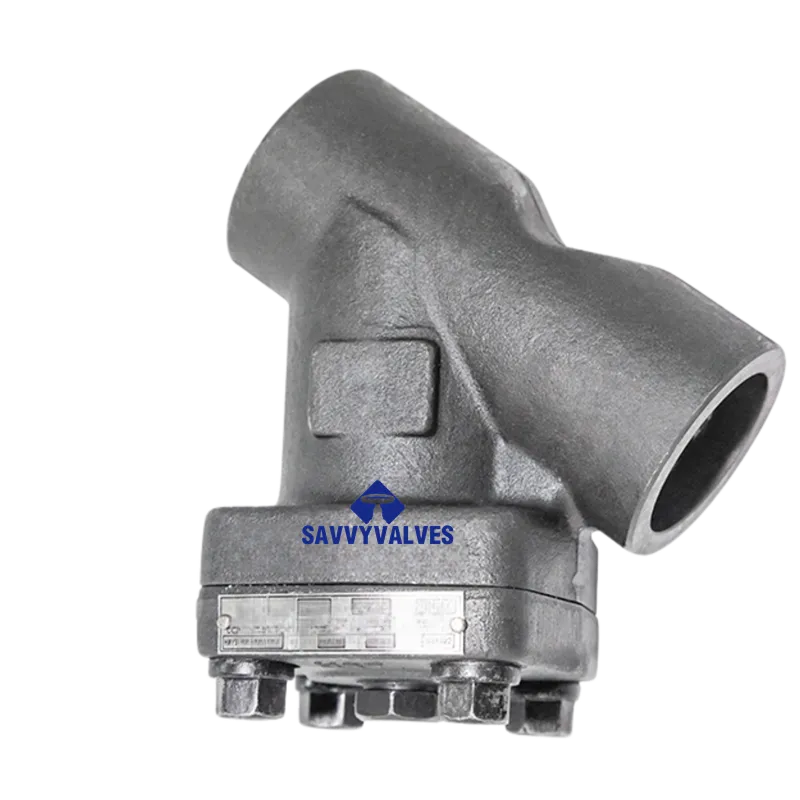

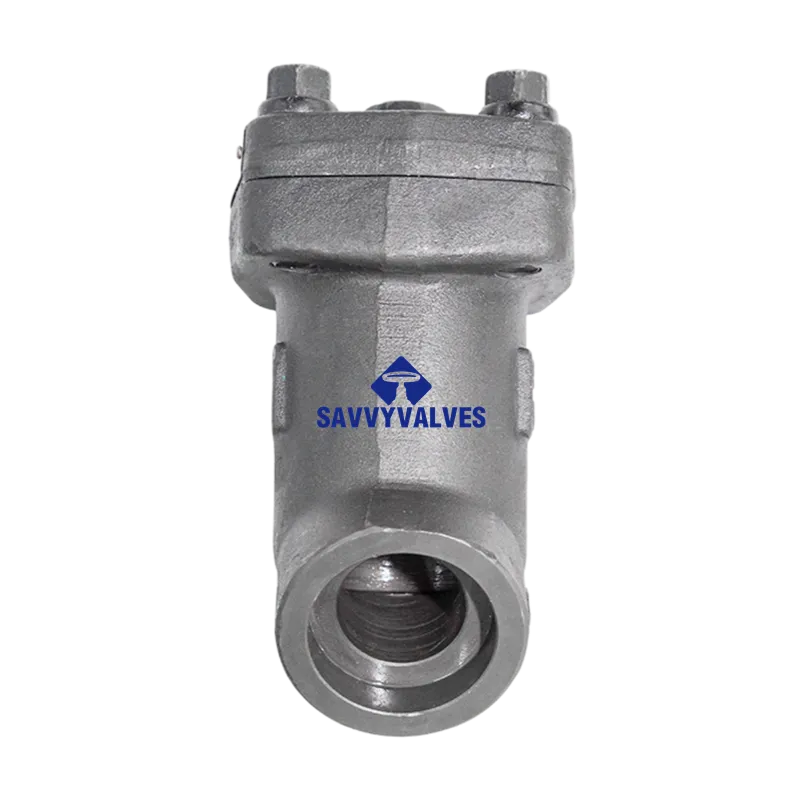

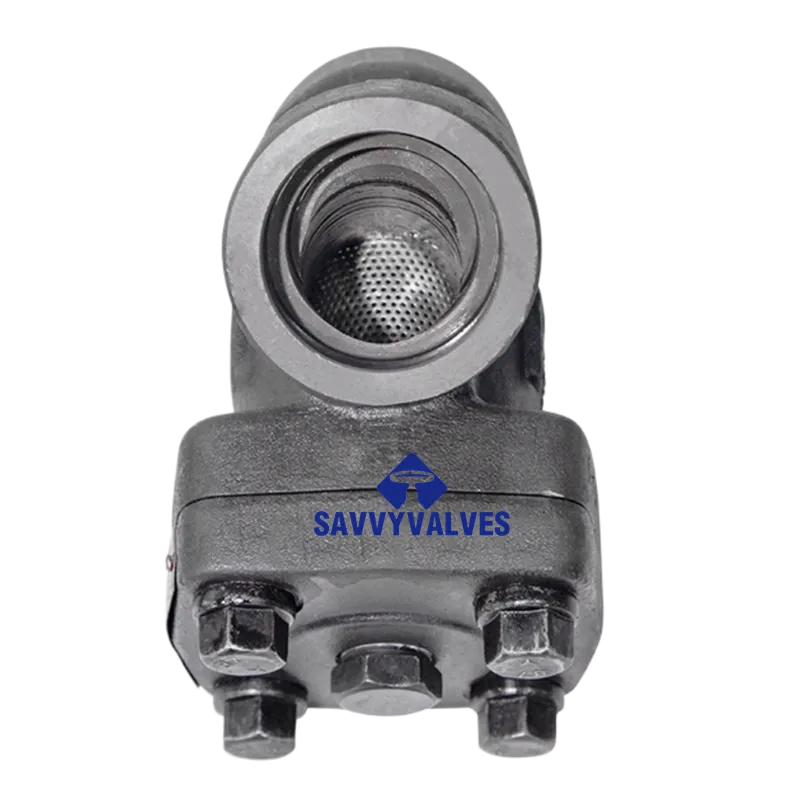

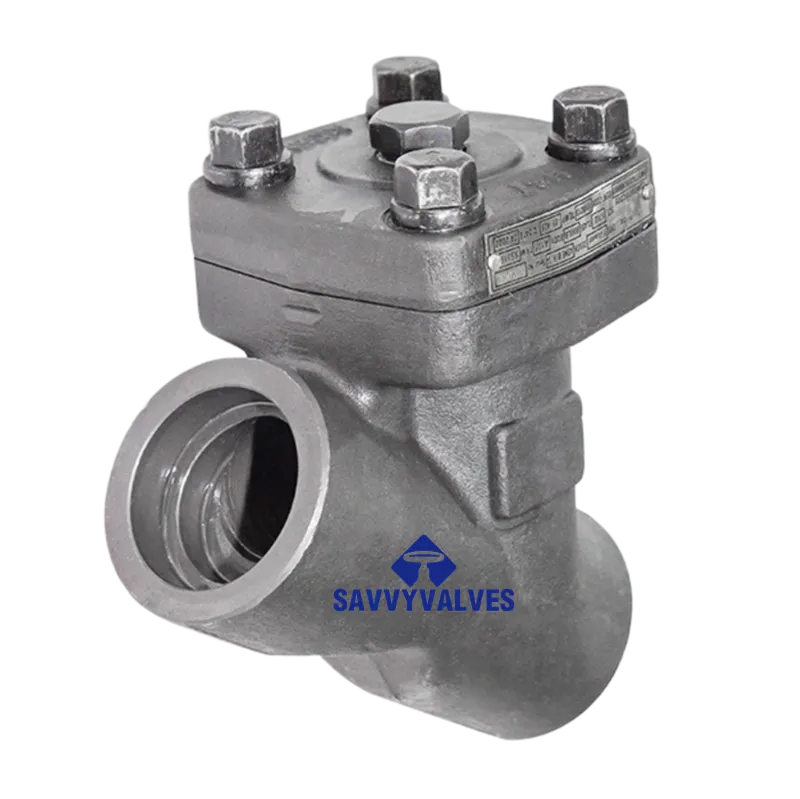

Product: 1-1/2″ – Class 800 Y‑Pattern Strainer
Material: ASTM A105 (Forged Carbon Steel)

1. General Description

This Y‑pattern strainer is designed for 1-1/2″ (DN40) Class 800 service. The forged ASTM A105carbon steel body provides high strength and reliability for high‑pressure applications in oil & gas, petrochemical, power generation, and industrial fluid systems. The Y‑type configuration offers a low pressure drop while enabling efficient removal of pipeline debris, protecting downstream equipment such as pumps, meters, and control valves.

2. Specifications

3. Material Specification

4. Key Features

• Forged Carbon Steel Construction: ASTM A105 provides excellent mechanical properties, toughness, and reliable performance at elevated pressures and temperatures.
• Class 800 Rating: Designed for high‑pressure systems requiring superior strength and safety margins.
• Y‑Pattern Design: Angled screen chamber minimizes pressure drop and allows continuous flow even when the screen is partially loaded.
• Easy Maintenance: Bolted cover enables quick removal of the screen for cleaning or replacement without removing the strainer from the pipeline.
• Versatile End Connections: Available in flanged, socket weld, or NPT configurations to suit various piping systems.
• Optional Blow‑Down Connection: A tapped drain port can be provided for periodic flushing without cover removal.
• Magnetic Insert Option: Available for capturing ferrous particles in critical applications.

5. Screen Options

6. Dimensional Data (Typical for 1-1/2″ Class 800)

Note: Dimensions vary by manufacturer; refer to certified drawings. Class 800 flanges are typically per ASME B16.5 Class 600 or Class 900 dimensions depending on manufacturer. Verify with actual product drawings.

7. Testing & Compliance

• Design & Manufacturing: ASME B16.34 / MSS SP‑25 / MSS SP‑45
• End Flange Dimensions: ASME B16.5
• Socket Weld / Threaded Ends: ASME B16.11
• Pressure Testing: API 598 / MSS SP‑61 (shell and seat)
• Material Certification: EN 10204 Type 3.1 (chemical & mechanical)
• NACE (Optional): MR0175 / MR0103 for sour service

8. Applications

• Oil & gas production and refining
• Petrochemical plants
• Power generation (steam, boiler feedwater, cooling water)
• High‑pressure water injection systems
• Industrial process lines requiring upstream filtration

9. Ordering Information

Please specify the following when ordering:

10. Notes

• Class 800 Note: Class 800 is not a standard ASME B16.5 flange class. It is commonly defined per ASME B16.34 for valves and often utilizes Class 600 or Class 900 flange dimensions. Confirm flange dimensions with the manufacturer.
• Installation: Ensure flow direction matches the arrow on the body. The screen should be accessible for periodic cleaning.
• Maintenance: Regularly inspect and clean the screen to prevent excessive pressure drop. Replace gaskets and bolts according to recommended torque values.
• Pressure Drop: For accurate sizing, refer to the manufacturer’s flow coefficient (Cv) and screen open‑area data.
