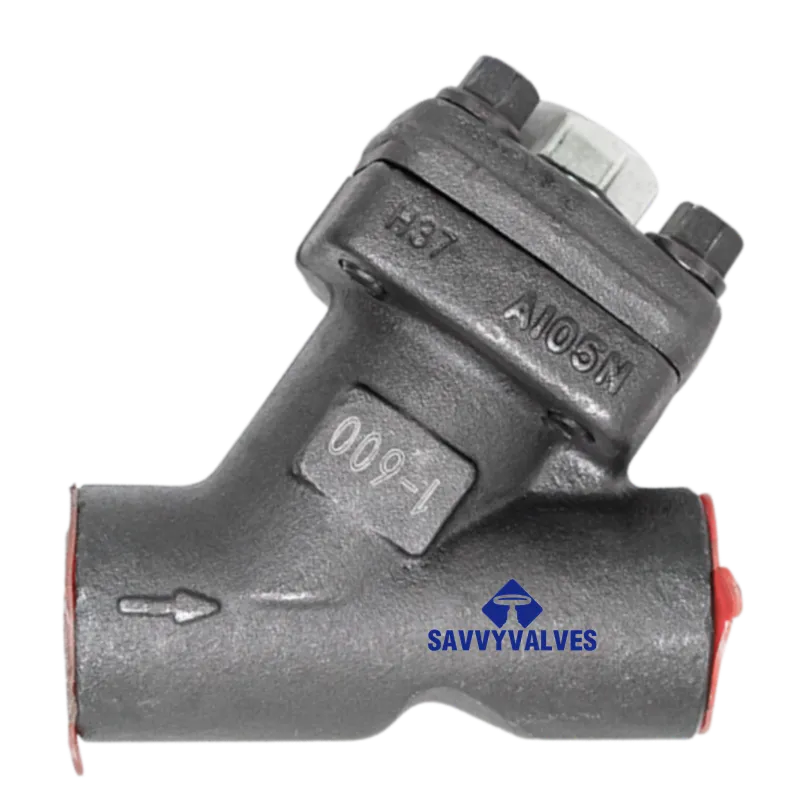

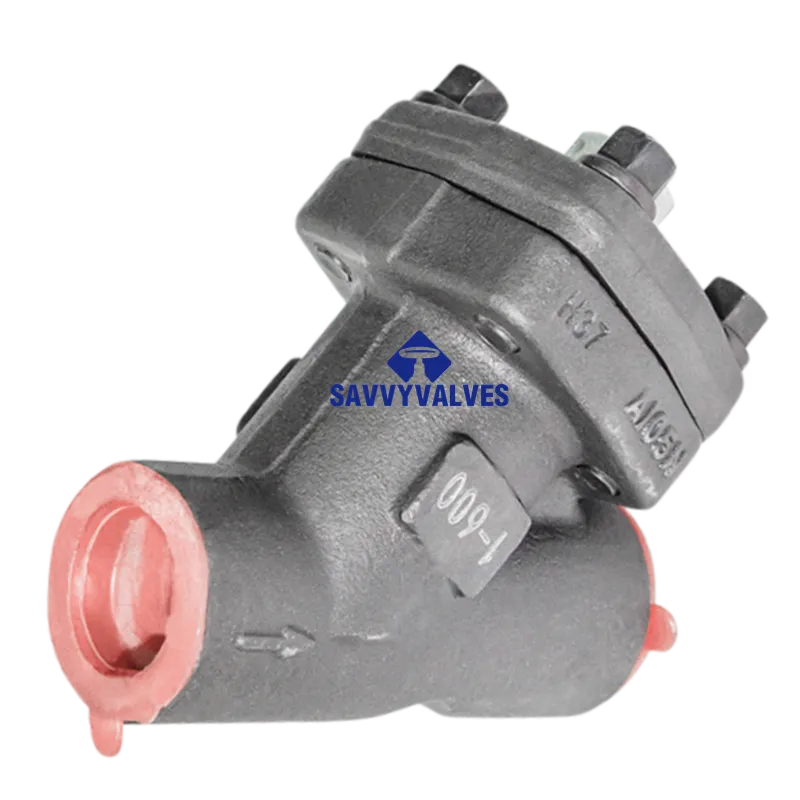

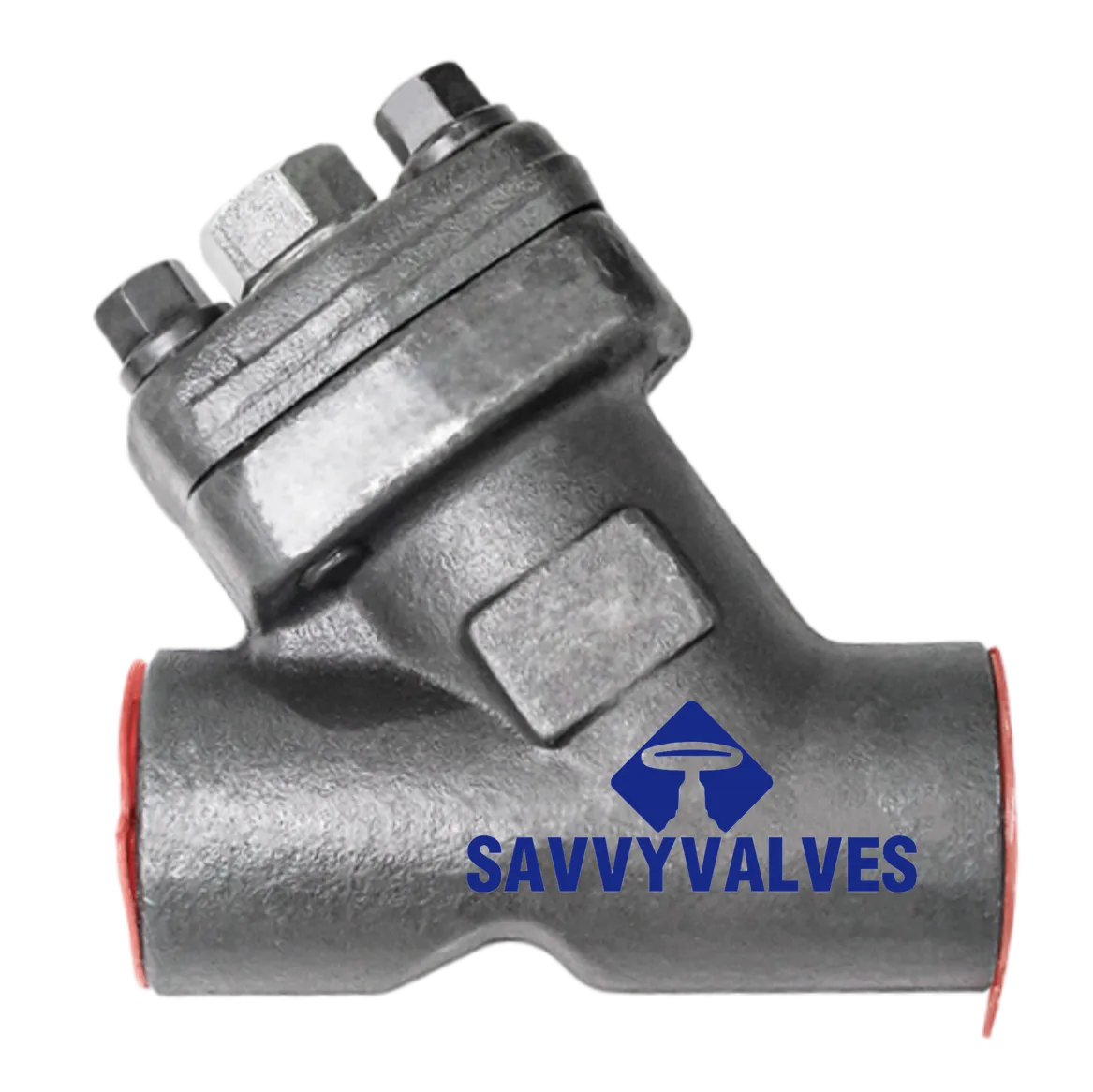

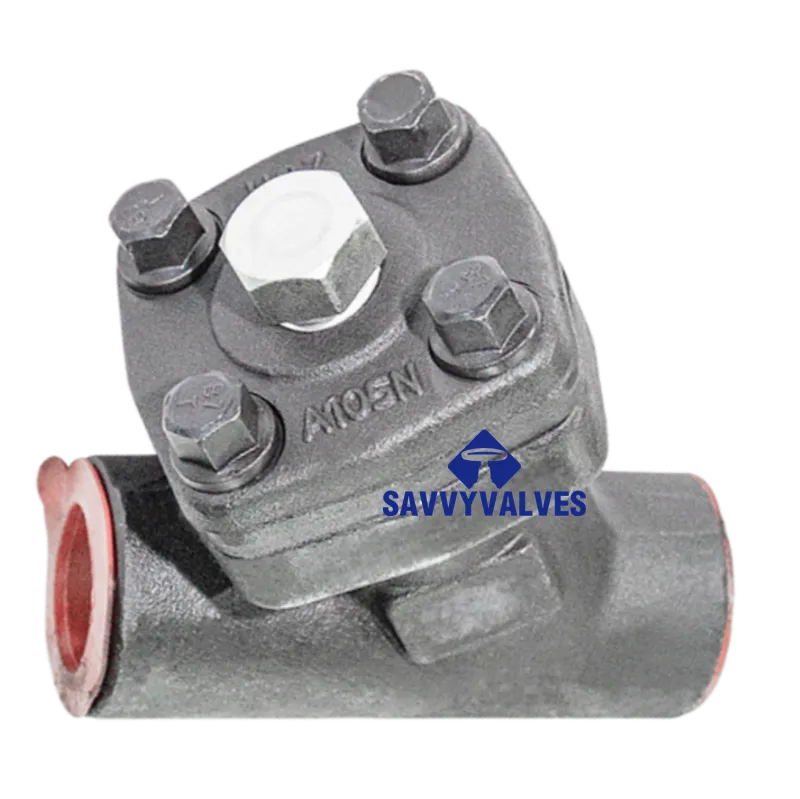

1″-600LB A105 Y Pattern Strainer

Size 1″ (DN25)
Pressure Rating Class 600 (ASME B16.34)
Design Type Y pattern, bolted cover
End Connections [e.g., Raised Face (RF) / Ring Type Joint (RTJ) flanges to ASME B16.5, or socket weld / NPT to ASME B16.11]
Screening Perforated basket or mesh screen (see options)
Filtration Rating [e.g., 0.5 mm – 3.0 mm perforation / 20 – 200 mesh]
Applicable Media Water, oil, gas, steam, condensate, non aggressive fluids
Temperature Range -29°C to +425°C (depending on gasket & screen material)
Flow Direction Arrow on body indicates flow (fluid enters cap side, exits opposite)

TECHNICAL DATA SHEET

Product: 1″ – Class 600 Y‑Pattern Strainer
Material: ASTM A105 (Forged Carbon Steel)

General Description

This Y‑pattern strainer is designed for 1″ (DN25) Class 600 service. The forged ASTM A105 carbon steel body provides high strength and reliability for high‑pressure applications in oil & gas, petrochemical, power generation, and industrial fluid systems. The Y‑type configuration offers a low pressure drop while enabling efficient removal of pipeline debris, protecting downstream equipment such as pumps, meters, and control valves.

Specifications

Parameter	Value
Size	1″ (DN25)
Pressure Rating	Class 600 (ASME B16.34)
Design Type	Y‑pattern, bolted cover
End Connections	[e.g., Raised Face (RF) / Ring Type Joint (RTJ) flanges to ASME B16.5, or socket weld / NPT to ASME B16.11]
Screening	Perforated basket or mesh screen (see options)
Filtration Rating	[e.g., 0.5 mm – 3.0 mm perforation / 20 – 200 mesh]
Applicable Media	Water, oil, gas, steam, condensate, non‑aggressive fluids
Temperature Range	-29°C to +425°C (depending on gasket & screen material)
Flow Direction	Arrow on body indicates flow (fluid enters cap side, exits opposite)

Material Specification

Item	Component	Material	Standard
1	Body	Carbon Steel	ASTM A105 (forged)
2	Cover	Carbon Steel	ASTM A105 (forged)
3	Screen / Basket	Stainless Steel 304 / 316	ASTM A240
4	Gasket	Spiral Wound (SS/Graphite) / PTFE	—
5	Cover Bolting	Alloy Steel	ASTM A193 B7
6	Drain Plug (optional)	Carbon Steel / Stainless Steel	—

Key Features

Forged Carbon Steel Construction: ASTM A105 provides excellent mechanical properties, toughness, and reliable performance at elevated pressures and temperatures.
Y‑Pattern Design: Angled screen chamber minimizes pressure drop and allows continuous flow even when the screen is partially loaded.
Easy Maintenance: Bolted cover enables quick removal of the screen for cleaning or replacement without removing the strainer from the pipeline.
Versatile End Connections: Available in flanged, socket weld, or NPT configurations to suit various piping systems.
Optional Blow‑Down Connection: A tapped drain port can be provided for periodic flushing without cover removal.
Magnetic Insert Option: Available for capturing ferrous particles in critical applications.

Screen Options

Type	Description	Typical Application
Perforated Basket	0.5 mm – 3.0 mm hole diameter	Coarse straining, high flow, low pressure drop
Mesh Liner	20 – 200 mesh (stainless steel)	Fine filtration of particulates
Dual Layer (Perforated + Mesh)	Combines strength with fine filtration	General purpose, demanding applications

Dimensional Data (Typical for 1″ Class 600)

Parameter	Value
Face‑to‑Face (Flanged)	[e.g., 180 mm / 7.1″ per ASME B16.10]
End Flange Dimensions	ASME B16.5 Class 600 RF / RTJ
Overall Height	[e.g., 120 mm / 4.7″]
Cover Bolts	[e.g., 4 × studs, size ½″‑13]
Weight (Approx.)	[e.g., 6.5 kg / 14 lbs]

Note: Dimensions vary by manufacturer; refer to certified drawings.

Testing & Compliance

Design & Manufacturing: ASME B16.34 / MSS SP‑25 / MSS SP‑45
End Flange Dimensions: ASME B16.5
Socket Weld / Threaded Ends: ASME B16.11
Pressure Testing: API 598 / MSS SP‑61 (shell and seat)
Material Certification: EN 10204 Type 3.1 (chemical & mechanical)
NACE (Optional): MR0175 / MR0103 for sour service

Applications

Oil & gas production and refining
Petrochemical plants
Power generation (steam, boiler feedwater, cooling water)
High‑pressure water injection systems
Industrial process lines requiring upstream filtration

Ordering Information

Please specify the following when ordering:

Parameter	Options
End Connections	Flanged RF / RTJ / Socket Weld / NPT
Screen Type	Perforated (hole size) / Mesh (mesh count) / Dual layer
Gasket Material	Spiral wound (SS/Graphite) / PTFE / Flexible graphite
Drain Port	Yes (with plug) / No
Magnetic Insert	Yes / No
Special Requirements	NACE MR0175 / Positive material identification (PMI) / Low‑temp impact test

Notes

Installation: Ensure flow direction matches the arrow on the body. The screen should be accessible for periodic cleaning.
Maintenance: Regularly inspect and clean the screen to prevent excessive pressure drop. Replace gaskets and bolts according to recommended torque values.
Pressure Drop: For accurate sizing, refer to the manufacturer’s flow coefficient (Cv) and screen open‑area data.
