1″-1000WOG 3-Way Floating Ball Valve

TECHNICAL DATA SHEET

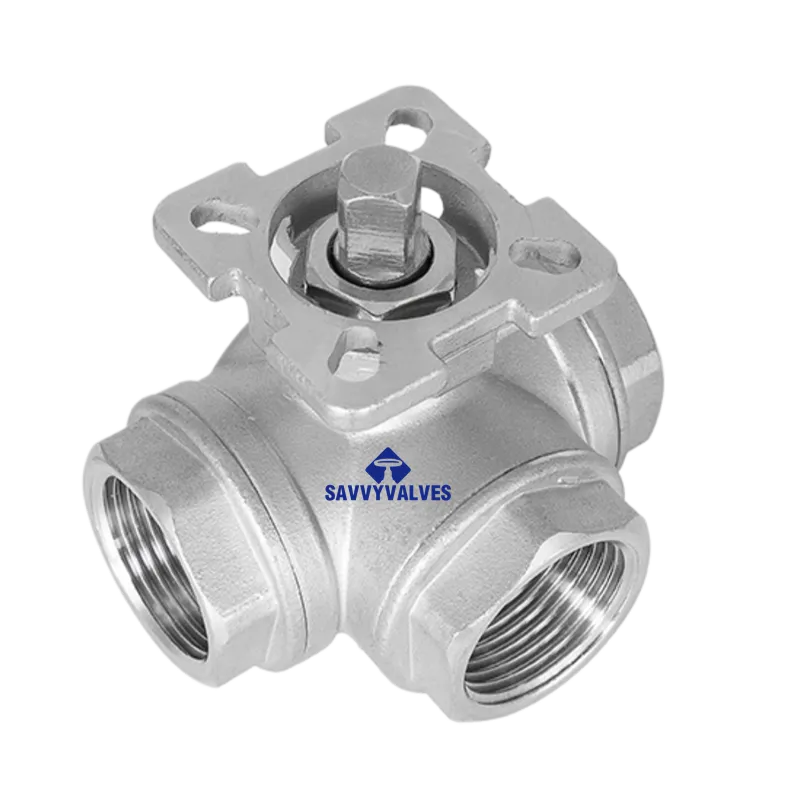

Product Name: 1-inch 1000WOG Stainless Steel 3-Way Floating Ball Valve
Model/Specification: 1″-1000WOG-3WAY-FLOAT
Valve Type: 3-Way Floating Ball Valve
Connection Type: Threaded (NPT) / Socket Weld (SW) / Butt Weld (BW) User specified

1. Basic Design Parameters

2. Technical Specifications

3. Material of Construction (Recommended – Stainless Steel CF8M/316)

*For Carbon Steel version: body/caps to A216 WCB, ball/stem to 304/316.*

4. Main Dimensions & Connection Details

*Note: Dimensions for 1″ 3-Piece 3-Way Ball Valve with Threaded Ends (NPT). Based on industry standards .*

4.1 End-to-End Dimensions (Face-to-Face – Threaded)

4.2 End Preparation Details (Per ASME Standards)

4.3 Port Configuration

5. Pressure-Temperature Rating

*Material Group: Stainless Steel (CF8/CF8M) with PTFE/RPTFE Seats *

Steam Rating: 150 PSI WSP (Working Steam Pressure)

6. Test Pressure (API 598)

7. Flow Characteristics (1″ – Reduced Port)

8. Features & Applications

• Key Features:
• 3-Way Configuration: T-port or L-port design allows for mixing, diverting, or switching flow in complex piping systems .
• Floating Ball Design: Ball floats against downstream seat under pressure, providing tight, leak-proof sealing .
• Three-Piece Construction: Allows for easy maintenance and in-line repair without removing pipe ends .
• 1000 WOG Pressure Rating: Suitable for medium to high-pressure applications up to 1000 PSI .
• Investment Cast Body: Provides excellent dimensional accuracy and surface finish .
• Blow-out Proof Stem: Ensures stem retention under all pressure conditions .
• Anti-Static Device: Ensures electrical continuity across the valve to prevent spark ignition in flammable services .
• ISO 5211 Mounting Pad: Standardized mounting for easy actuator installation .
• Lockable Handle: Provides safety lockout capability for maintenance .
• Adjustable Stem Packing: Allows for packing adjustment without valve disassembly .
• Full Port Option: Available for applications requiring minimal pressure drop.
• Versatile Media Compatibility: Handles water, oil, gas, LPG, air, and mild chemicals .
• Main Applications:
• LPG Distribution: Flow control in LPG systems .
• Water Treatment: Diverting and mixing flows in treatment plants .
• Oil & Gas: Light hydrocarbon services, gathering systems .
• Chemical Processing: Mild chemical handling .
• Compressed Air Systems: Flow direction control .
• Industrial Piping: General purpose isolation and flow switching.
• Pharmaceutical & Food Processing: Sanitary applications (with appropriate trim) .
• HVAC Systems: Chilled water and hot water control.

9. 3-Way Valve Flow Patterns

10. Ordering Information

Please specify when ordering:

1. Valve size: 1″ (DN25)
2. Pressure rating: 1000WOG
3. Body material: CF8 (304) / CF8M (316)
4. Flow pattern: T-Port / L-Port
5. Bore type: Reduced Port / Full Port
6. End connections: NPT / SW / BW
7. Seat material: PTFE / RPTFE / PPL
8. Operation: Lever handle / Gearbox / Pneumatic actuator / Electric actuator
9. Special requirements: Fire-safe (API 607), NACE, oxygen cleaning, etc.
10. Accessories: Locking device, extension stem, position indicator, solenoid valve, limit switches

*Disclaimer: The above data is prepared based on common industry standards (ASME B16.34, API 598, API 608) for 3-way floating ball valves. 1000WOG pressure rating indicates 1000 PSI for water, oil, and gas service at ambient temperature . Specific dimensions, materials, and pressure ratings may vary by manufacturer. The final technical agreement and certified drawings shall prevail.*
