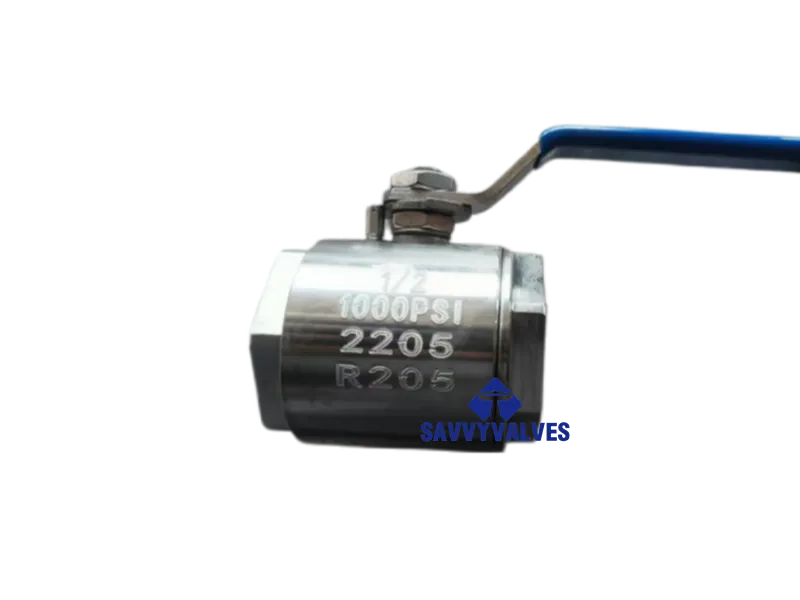

Technical Datasheet: 2-Piece Floating Ball Valve
Product Name: 2-Piece Floating Ball Valve
Connection: Female Threaded NPT (National Pipe Thread)
Pressure Rating: 1000 PSI (WOG)
Body Construction: Bar Stock (Forged Bar)
- General Design Features
- Type: 2-piece, split body construction (Side Entry). Consists of a main body and an end cap secured by bolts.
- Material: Machined from solid steel bars (e.g., Stainless Steel or Carbon Steel). This forged/bar stock construction offers higher density and strength compared to castings.
- End Connections: Female threaded ends conforming to ASME B1.20.1 (NPT) standards.
- Ball Design: Floating ball principle. The ball is not fixed; under pressure, it floats downstream against the seat to ensure a tight seal.
- Blowout-Proof Stem: The stem is inserted from inside the body and features a blowout-proof shoulder, preventing stem ejection due to internal pressure.
- Port Type: Full Port (full bore) or Reduced Port depending on size (Full Port minimizes pressure drop and turbulence).
- Operation: Standard lever handle with locking device (material: plated carbon steel or stainless steel). Suitable for mounting extensions or actuators.
- Applicable Standards & Specifications
|
Item
|
Standard / Specification
|
|
Design & Manufacturing
|
API 608, API 6D, ASME B16.34, MSS SP-110
|
|
End Connections
|
ASME B1.20.1 (NPT)
|
|
Pressure-Temperature Rating
|
ASME B16.34
|
|
Inspection & Testing
|
API 598, MSS SP-110
|
- Operating Parameters
|
Item
|
Specification
|
|
Size Range
|
1/4″ to 2″ (DN15 to DN50)
|
|
Pressure Rating
|
1000 PSI (WOG) *(approx. 6.9 MPa / 69 bar)*
|
|
Shell Test Pressure
|
1500 PSI (Hydrostatic)
|
|
Seat Test Pressure
|
1100 PSI (Hydrostatic / Pneumatic)
|
|
Temperature Range
|
-20°F to +350°F (-20°C to +180°C) Dependent on seat material (PTFE typical)
|
|
Suitable Media
|
Water, Oil, Gas (WOG) and general corrosive fluids
|
|
Fire Safe
|
Optional, designed per API 607
|
- Bill of Materials (Typical Material Selection)
Note: The following is based on a standard stainless steel build. Carbon steel options are listed for reference.
|
Item
|
Part Name
|
Stainless Steel Construction
|
Carbon Steel Construction (Optional)
|
|
1
|
Body
|
A182 F316 / F304 (SS Bar Stock)
|
A105 (CS Bar Stock)
|
|
2
|
End Cap
|
A182 F316 / F304 (SS Bar Stock)
|
A105 (CS Bar Stock)
|
|
3
|
Ball
|
AISI 316 / A182 F316 (Solid Ball)
|
A105 Chrome Plated / SS
|
|
4
|
Stem
|
A276 316 / 304 (Stainless Steel)
|
A276 410 / A182 F304
|
|
5
|
Seat (Seal)
|
Reinforced PTFE (RPTFE)
|
PTFE / RPTFE
|
|
6
|
Body Seal / Gasket
|
PTFE / Graphite
|
PTFE / Graphite
|
|
7
|
Stem Packing
|
PTFE V-Rings
|
PTFE
|
|
8
|
Gland Nut
|
Stainless Steel 304
|
Stainless Steel 304
|
|
9
|
Thrust Washer
|
PTFE
|
PTFE
|
|
10
|
Handle / Lever
|
Stainless Steel 304 / Plated CS
|
Plated Carbon Steel
|
|
11
|
Handle Sleeve
|
Plastic (PVC)
|
Plastic
|
|
12
|
Locking Device
|
Integrated locking plate or handle holes
|
Integrated locking plate
|
- Dimensional Data (Reference)
Note: Dimensions are industry standard references. Please verify with the specific manufacturer’s drawing.
|
NPS Size
|
Thread Size (NPT)
|
Length L (in / mm)
|
Height H (in / mm)
|
Handle Length (in / mm)
|
Bore Diameter (in / mm)
|
|
1/4″
|
1/4″
|
2.17″ (55 mm)
|
2.00″ (51 mm)
|
3.94″ (100 mm)
|
0.31″ (8 mm)
|
|
3/8″
|
3/8″
|
2.17″ (55 mm)
|
2.00″ (51 mm)
|
3.94″ (100 mm)
|
0.39″ (10 mm)
|
|
1/2″
|
1/2″
|
2.56″ (65 mm)
|
2.28″ (58 mm)
|
4.72″ (120 mm)
|
0.59″ (15 mm)
|
|
3/4″
|
3/4″
|
2.91″ (74 mm)
|
2.48″ (63 mm)
|
5.12″ (130 mm)
|
0.79″ (20 mm)
|
|
1″
|
1″
|
3.46″ (88 mm)
|
2.91″ (74 mm)
|
6.50″ (165 mm)
|
1.00″ (25 mm)
|
|
1-1/4″
|
1-1/4″
|
3.94″ (100 mm)
|
3.15″ (80 mm)
|
6.50″ (165 mm)
|
1.26″ (32 mm)
|
|
1-1/2″
|
1-1/2″
|
4.33″ (110 mm)
|
3.54″ (90 mm)
|
6.89″ (175 mm)
|
1.50″ (38 mm)
|
|
2″
|
2″
|
4.92″ (125 mm)
|
4.13″ (105 mm)
|
7.48″ (190 mm)
|
1.89″ (48 mm)
|
- Inspection & Testing Procedure
- Shell Test: Valve partially open. Hydrostatic test at 1.5 times the rated pressure. Check body, end cap joints, and stem area for leaks.
- Seat Test: Valve closed. Hydrostatic or pneumatic test at 1.1 times the rated pressure. Check for leakage across the seat.
- Low-Pressure Seat Test: Air test at 80 PSI (approx. 0.6 MPa) to verify sealing integrity at low pressure.
- Options & Special Features
- Antistatic Device: Optional springs between ball and stem to ensure electrical continuity (per API 608).
- Fire-Safe Design: Optional design qualified to API 607 / ISO 10497.
- Actuator Mounting: Top flange designed to ISO 5211 for direct mounting of pneumatic, electric, or worm gear actuators.
- Stem Extension: Available for buried service or insulated piping.
