2″-1500LB-SW Full Welded Floating Ball Valve

Technical Data Sheet

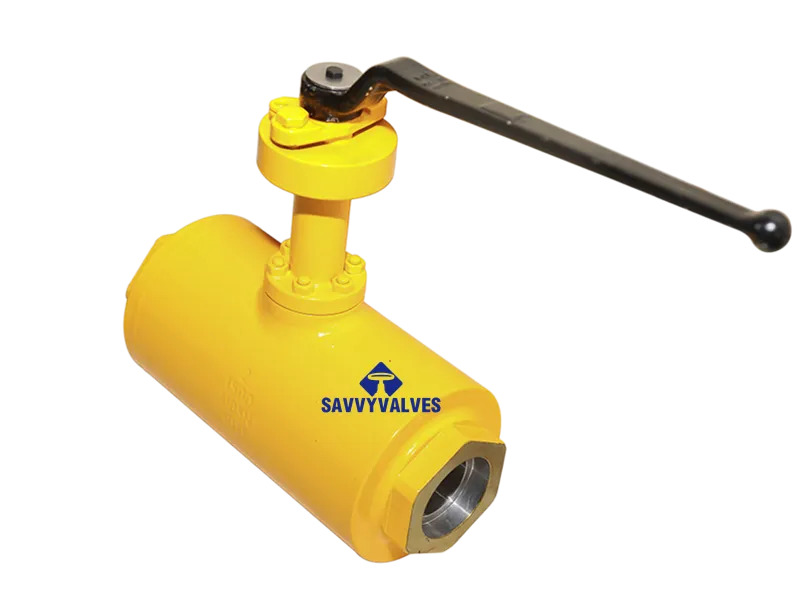

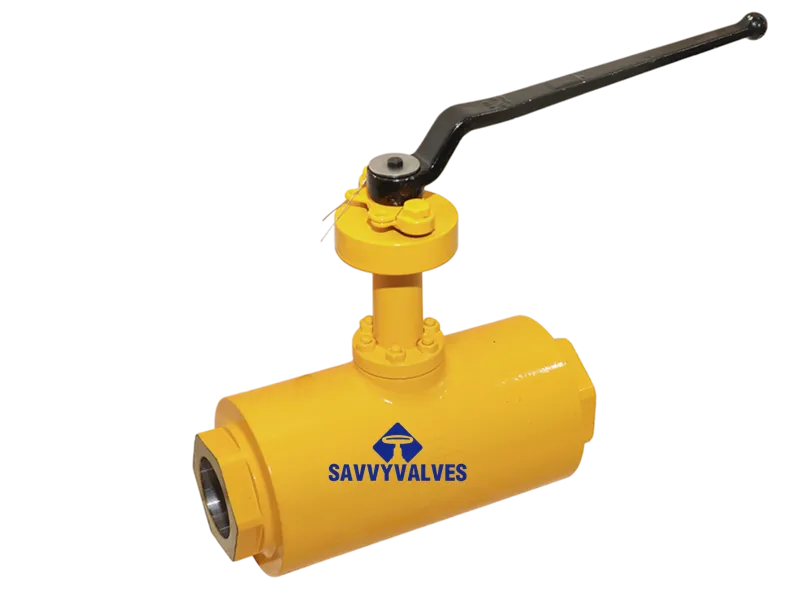

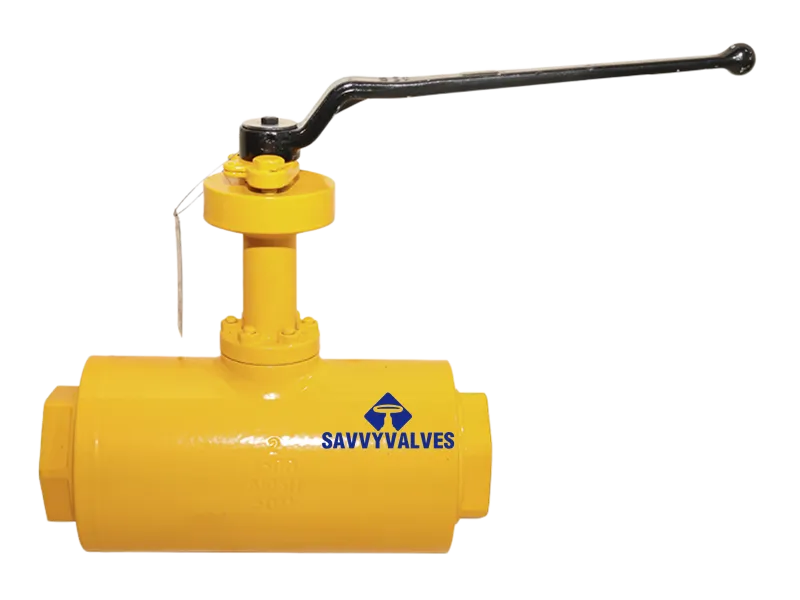

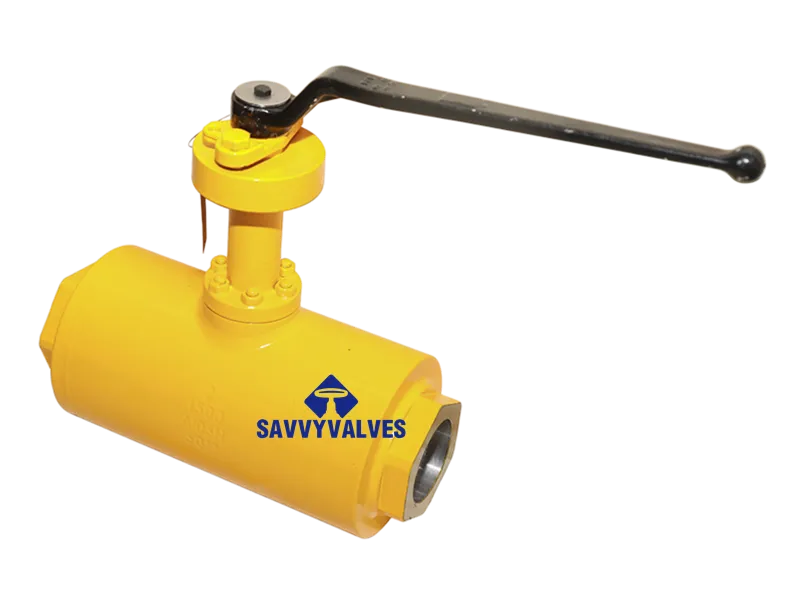

Product: 2″ – 1500LB Socket Weld Full Welded Floating Ball Valve
Construction: Full Welded Body

1. Product Description

This floating ball valve features a full welded body design combined with Class 1500 pressure rating, providing exceptional structural integrity and leak tightness for high‑pressure applications. The fully welded construction eliminates bolted body joints, minimizing potential leak paths and fugitive emissions. Socket weld ends offer permanent, high‑strength connections suitable for demanding service conditions. This valve is ideal for high‑pressure oil & gas, petrochemical, power generation, and critical industrial services.

2. Main Technical Parameters

3. Bill of Materials (Typical for High‑Pressure Service)

Note: No body gasket is required due to the full welded construction.

4. Key Features

1. Full Welded Body

• Eliminates bolted flange or bonnet joints, drastically reducing potential leak paths.
• Provides superior resistance to external leakage and fugitive emissions.
• Enhances structural strength and resistance to pressure surges and thermal cycling.
• Compact design with reduced weight compared to bolted counterparts.

• Class 1500 rating suitable for demanding high‑pressure systems.
• Robust wall thickness and welded construction ensure integrity under extreme conditions.

• Stem retained internally; cannot be ejected under pressure, ensuring operational safety.

• Seats available in reinforced PTFE, PEEK, or metal‑seated designs to withstand high pressure and temperature.

• Provides electrical continuity across the valve to prevent static discharge in hazardous environments.

• Designed per API 607 / ISO 10497; secondary metal‑to‑metal sealing after seat burnout.

5. Dimensions & Weight (Reference)

Final dimensions to be confirmed from certified GA drawings. Bonnet extension height varies with temperature.

6. Design & Manufacturing Standards

Testing:

• Shell strength test: 1.5 × rated pressure (no visible leakage)
• High‑pressure seat test: 1.1 × rated pressure
• Low‑pressure seat test: 0.6 MPa (for soft‑seated versions)

7. Ordering Information

Please specify the following for accurate quotation and manufacturing:

1. Operating temperature and media — determines seat material, bonnet length, and body material
2. Seat type — reinforced PTFE, PEEK, metal‑seated, or reinforced graphite
3. Body and trim materials — carbon steel, stainless steel, or chrome‑moly alloy
4. Actuation type — lever, gear operator, pneumatic actuator, electric actuator
5. Special requirements — fire safe, antistatic, NACE MR0175/MR0103, ATEX, material test reports (EN 10204 3.1), etc.
