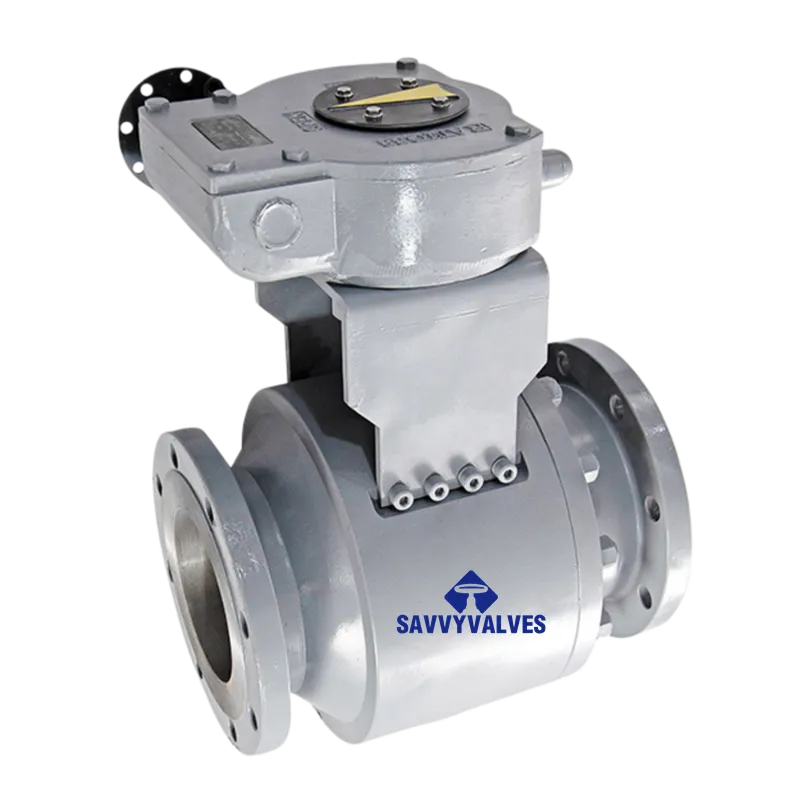

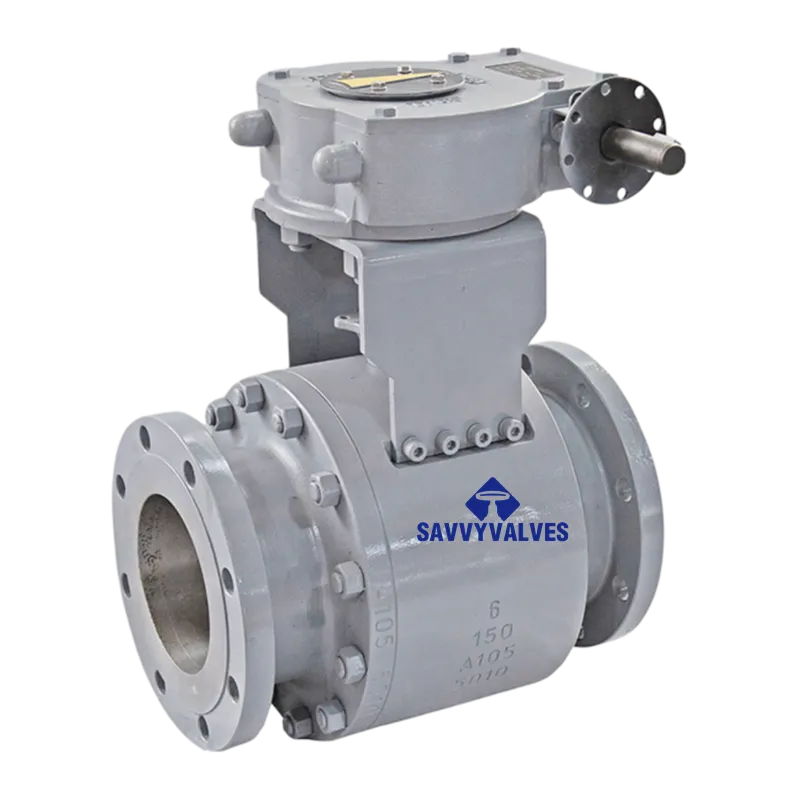

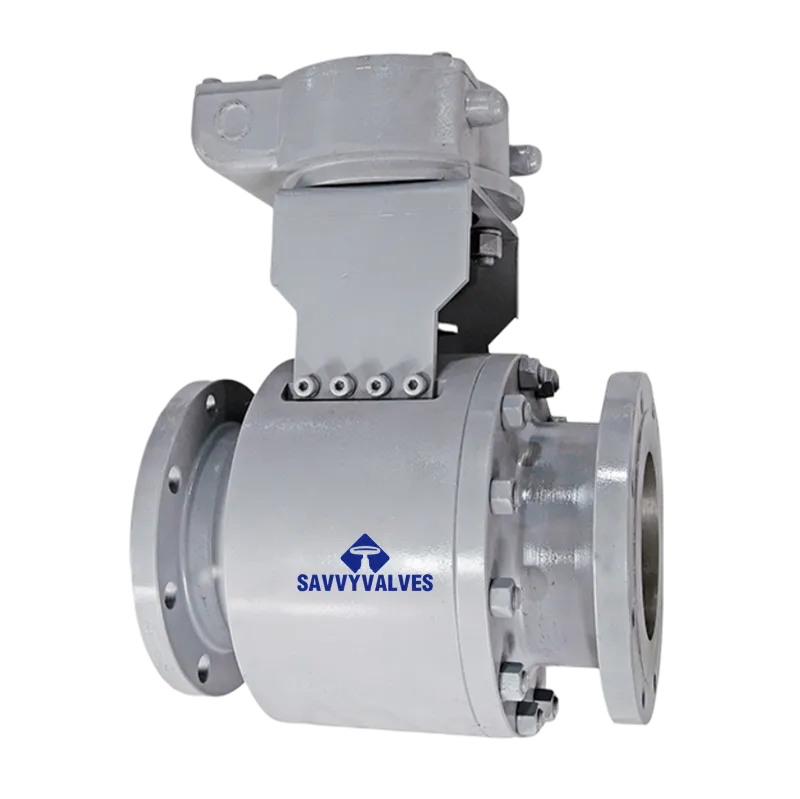

6″-150LB-RF A105 Floating Ball Valve

Technical Data Sheet

Product: 2‑Piece Floating Ball Valve
Size / Rating: 6″ – Class 150 – RF (Raised Face)
Construction: 2‑Piece
Body Material: A105 (Carbon Steel)

1. General Description

This 2‑piece floating ball valve features an A105 carbon steel body constructed from a main body and an end piece joined by bolts. The 2‑piece design offers compact dimensions, reliable sealing, and easy maintenance. It is suitable for water, oil, gas, steam, and mild corrosive media in industrial piping systems. With its 6‑inch size, it handles high‑flow applications and can be equipped with a gearbox or actuator for automated control.

2. Basic Specifications

3. Material Specification

4. Key Features

4.1 2‑Piece Construction Advantages

• Compact design – Fewer flange connections result in shorter overall length and lighter weight, requiring less installation space.
• Easy maintenance – Remove the end piece bolts to access the ball, seats, and stem for inspection or replacement without removing the valve from the pipeline.
• Reliable sealing – Precision‑machined body joint with a gasket ensures leak‑tight sealing.

4.2 Floating Ball Sealing Performance

• Low flow resistance – Full‑port design offers minimal pressure drop.
• Quarter‑turn operation – Fast 90‑degree operation suitable for frequent cycling.
• Bidirectional sealing – Upstream pressure forces the ball against the downstream seat for reliable zero‑leakage shut‑off.

4.3 Safety & Operation

• Anti‑static design – A grounding spring ensures electrical continuity between stem, ball, and body to prevent static buildup.
• Blowout‑proof stem – Stem is designed to prevent ejection under pressure.
• Operation options:
• 6″: Lever with lock (standard)

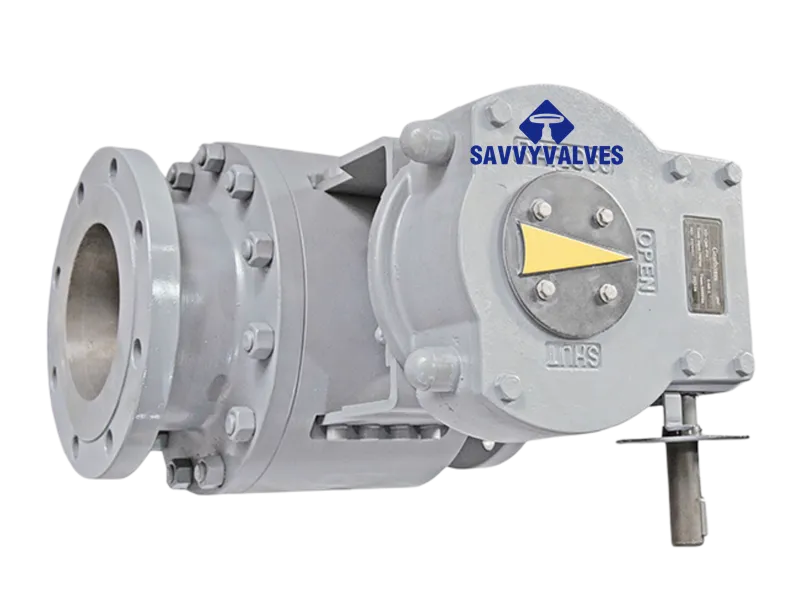

• Worm gearbox optional – Reduces operating torque for easier manual operation
• ISO 5211 actuator mounting pad available for pneumatic/electric actuators

5. Testing & Standards

6. Installation & Maintenance Notes

6.1 Installation Precautions

• Flow direction – Bidirectional; installing according to the body arrow is recommended to maximize seat life.
• Flange installation – Use appropriate gaskets (spiral wound recommended). Tighten bolts evenly in a cross pattern.

6.2 Maintenance & Repair

• Packing adjustment – If slight leakage occurs at the packing, carefully tighten the packing gland. If leakage persists, replace the packing.
• Seat / ball replacement:

1. Close the valve and depressurize the line
2. Remove end piece bolts and separate the end piece
3. Extract ball, seats, and stem assembly
4. Replace worn components and reassemble in reverse order

7. Approximate Dimensions (for reference)

Note: Final dimensions are subject to the specific design; certified GA drawings should be referenced for engineering purposes.

Remarks:

1. This valve is suitable for general service applications. For high‑temperature (>200°C) or highly corrosive media, consider metal‑seated or special alloy versions.
2. For actuated versions (electric or pneumatic), an ISO 5211 top mounting flange (F10 / F12, etc.) is available.
