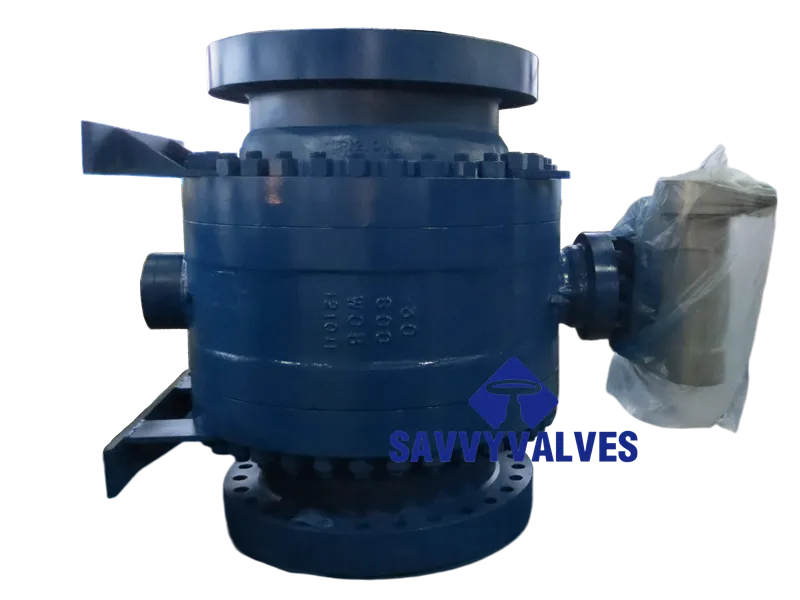

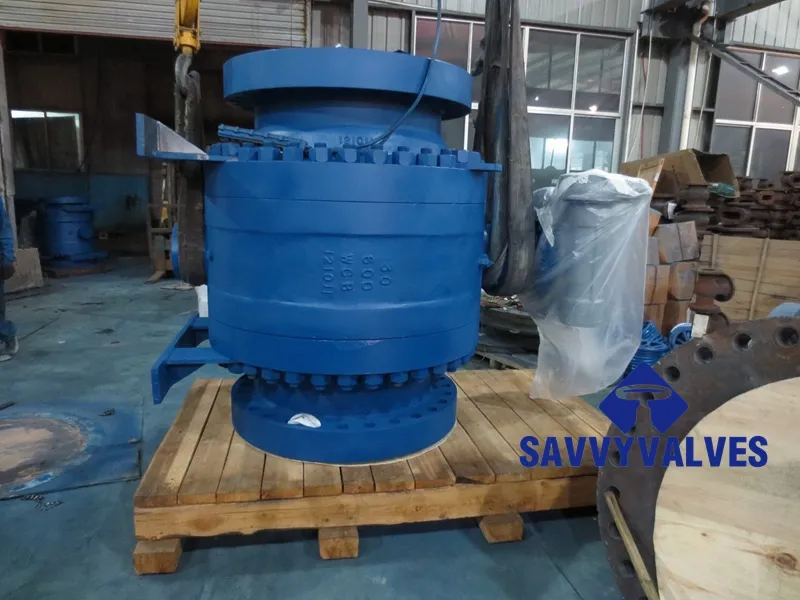

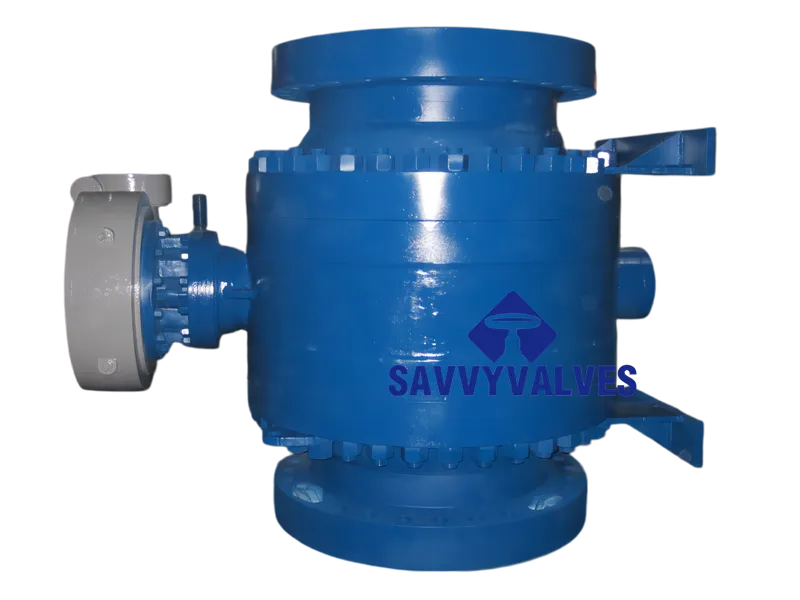

30″-600LB 3-Piece Trunnion Mounted Ball Valve

Description

Technical Data Sheet

3-Piece Trunnion Mounted Ball Valve

Project/Item: 3-Piece Fixed Ball Valve
Valve Size: 30 inches (DN750)
Pressure Rating: 600LB (Class 600)

1. General Information

2. Main Technical Parameters & Performance

3. Main Material Specifications

*(Materials remain the same – WCB Body + 316 Trim)*

4. Main Dimensions (For 30″ Class 600)

Typical dimensions per ASME standards. Note: 30″ Class 600 flanges are very large and heavy. Variations may occur between manufacturers.

5. Design Features & Requirements

(Design features remain the same, but structural integrity is even more critical for 600LB)

1. 3-Piece Bolted Body: The body consists of three parts (Body + 2 End Caps) bolted together with heavy-duty studs. This allows for easy maintenance without removing the entire valve from the pipeline, a major advantage for a large, heavy 30″ 600LB valve.
2. Trunnion Mounted Ball: The ball is fixed and supported by heavy-duty upper and lower stems/bearings. This design is essential for 30″ Class 600 applications, managing high thrust loads and reducing operating torque.
3. Double Piston Effect (DPE) Seats: Standard seats provide bidirectional sealing. The valve typically features automatic cavity pressure relief to protect the body in case of thermal expansion.
4. Emergency Sealant Injection: The valve body is equipped with sealant injection fittings. In case of seat damage at high pressure, sealant can be injected to temporarily restore sealing.
5. Anti-Static Device: A spring-loaded plunger/ball ensures electrical continuity between the ball, stem, and body.
6. Secondary Metal Seal: In the event the soft seat is destroyed by fire, the ball will contact the metal seat support, providing a metal-to-metal seal (Fire Safe feature).

Note:

• This data sheet is based on standard ASME/API specifications for a 30″ Class 600 valve.
• 30″ Class 600 is a very high-pressure, large-diameter valve. The flange dimensions provided are per ASME B16.5. Please confirm if ASME B16.5 or ASME B16.47 (Series A or B) is required for your project, as large diameter high-pressure flanges sometimes fall under the larger flange standards.

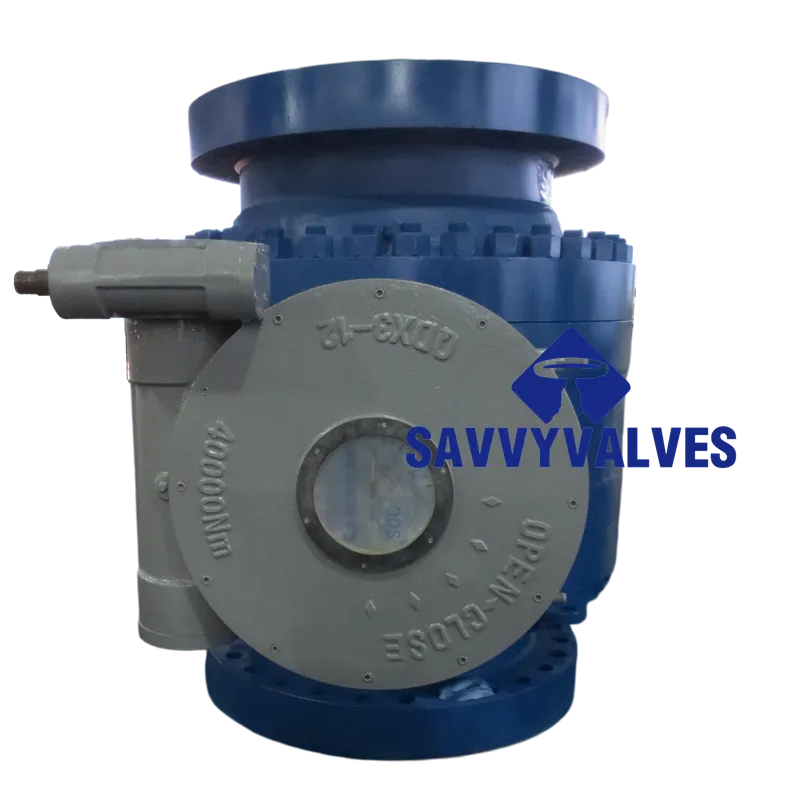

• The gearbox dimensions, handwheel size, and overall weight are estimates and will vary significantly by manufacturer. A heavy-duty gearbox is mandatory for this pressure class. Certified drawings are essential for installation and lifting planning.
