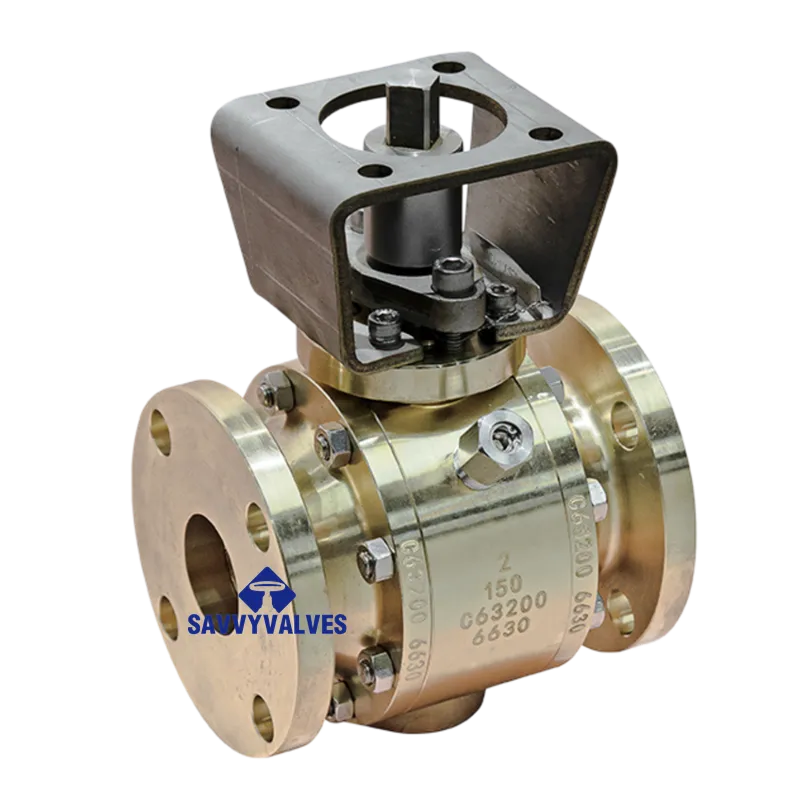

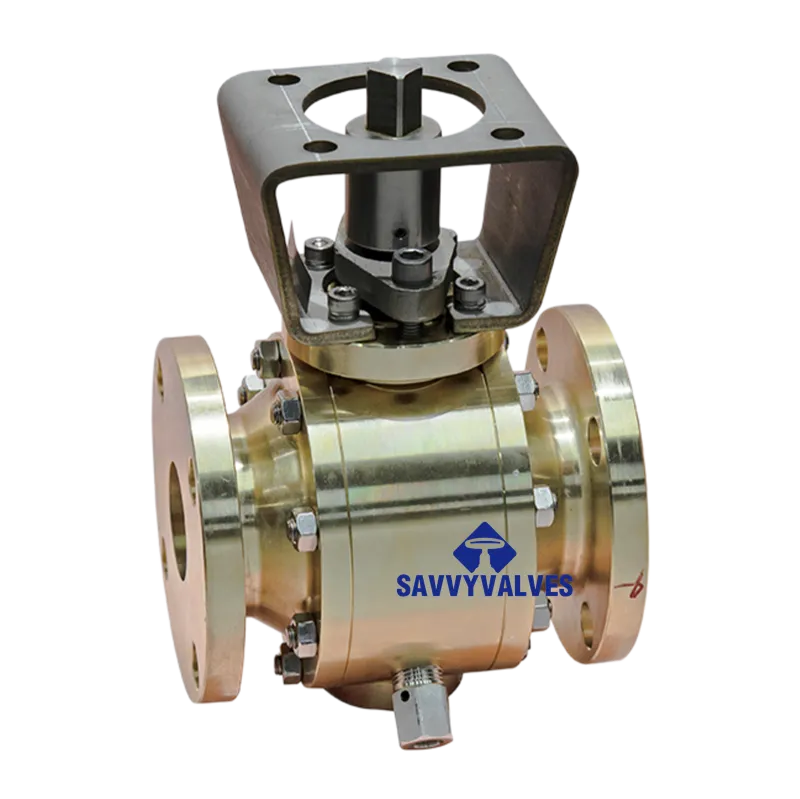

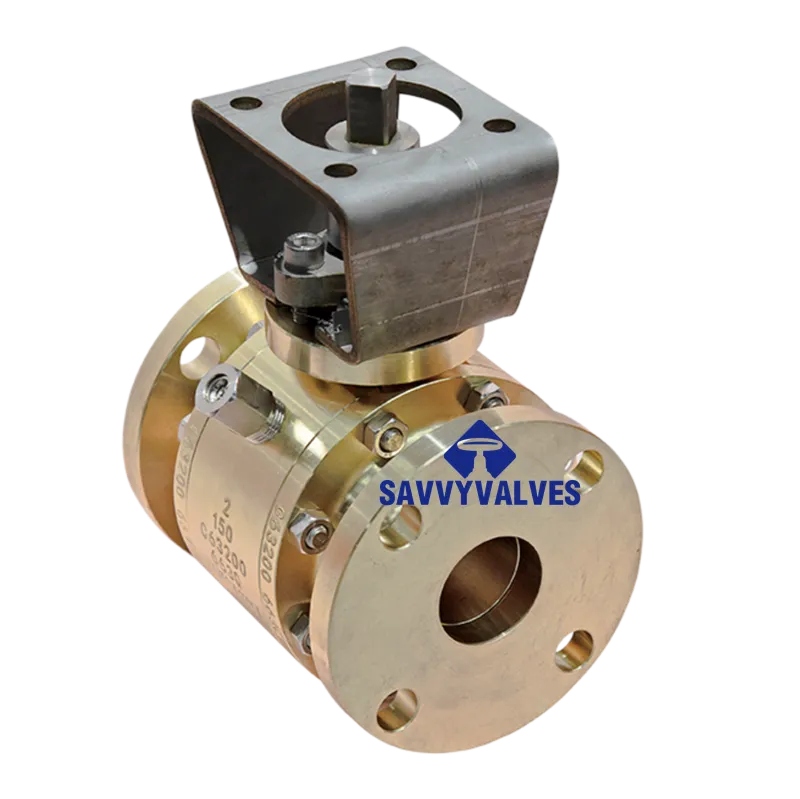

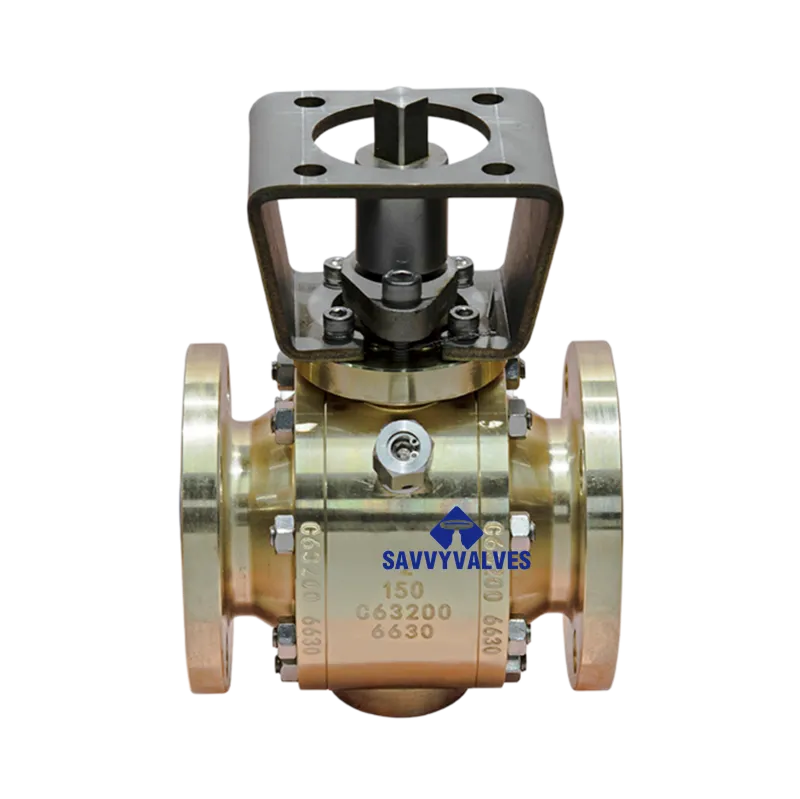

B150 C63200 Floating Ball Valve ready for Actuators

TECHNICAL DATA SHEET

Product: Three-Piece Trunnion Mounted Ball Valve
Material: ASTM B150 C63200 (Forged Aluminum Bronze)
Actuation: Actuator-Ready (ISO 5211 Direct Mount Platform)

1. General Description

This valve is manufactured from ASTM B150 C63200 forged aluminum bronze. The three-piece body design allows easy in-line maintenance without removing the valve from the pipeline. The trunnion-mounted ball provides low operating torque and reliable sealing under high pressure and large bore conditions. Forged C63200 offers a dense grain structure, superior yield strength, and excellent resistance to seawater corrosion, cavitation, and fatigue. The valve features an integrated ISO 5211 top flange for direct actuator mounting without brackets.

2. Specifications

3. Material Specification

4. Key Features

• Three-Piece Body Construction: Center section and two end caps allow quick disassembly for maintenance without removing the valve from the pipeline.
• Trunnion Mounted Ball: Ball is supported by upper and lower trunnion bearings, reducing stem torque and enabling smooth operation even at high pressures and large diameters.
• High-Strength Forged Material: Manufactured from ASTM B150 C63200 forged aluminum bronze with typical tensile strength exceeding 620 MPa (90 ksi) . Provides outstanding resistance to seawater corrosion, cavitation erosion, and flow abrasion.
• ISO 5211 Direct Mount Platform: Top flange machined to ISO 5211 standards. Enables direct actuator attachment without a mounting bracket, ensuring perfect alignment and reducing potential leak paths.
• Blowout-Proof Stem: Stem is positively retained against internal pressure for enhanced safety.
• Anti-Static Device: Conductive path between ball, stem, and body dissipates static charges for applications in flammable environments.

5. Actuator Interface (ISO 5211)

The valve top flange complies with ISO 5211 for easy automation.

6. Testing & Compliance

• Pressure Testing: API 598 / EN 12266
• Fire Safe (Optional): API 607 / ISO 10497
• Material Certification: EN 10204 Type 3.1 (chemical composition and mechanical properties)

7. Notes for Ordering / Sales

• Key Advantage: The combination of ASTM B150 C63200 forged material with a trunnion-mounted, three-piece design ensures superior mechanical strength, easy maintenance, and suitability for automated systems under high pressure and cyclic operation.
• “Ready for Actuators”: ISO 5211 direct mount eliminates field fabrication of brackets, reduces installation time, and simplifies actuator removal for maintenance.
