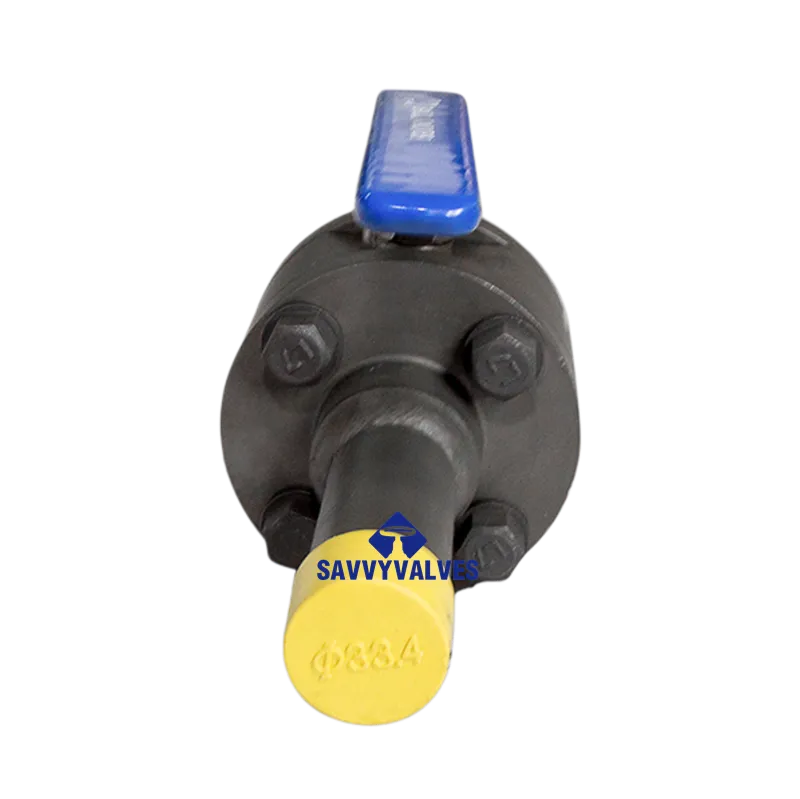

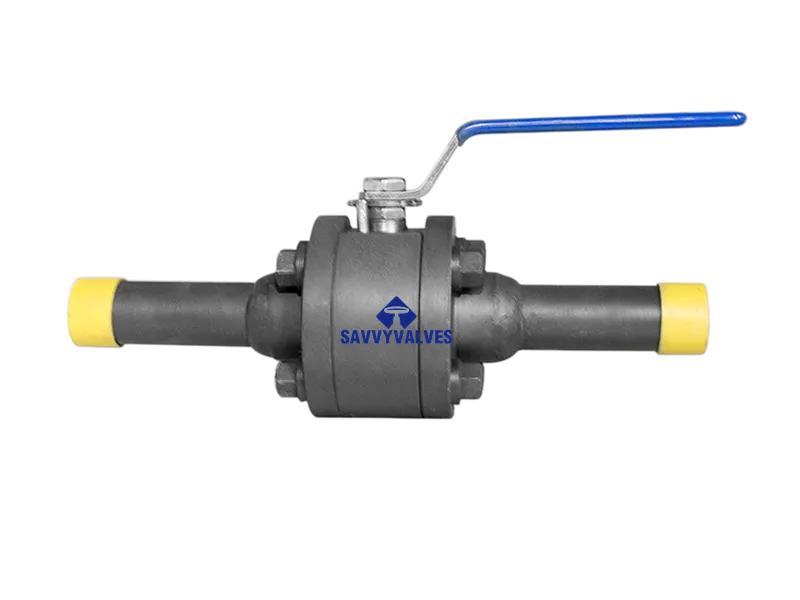

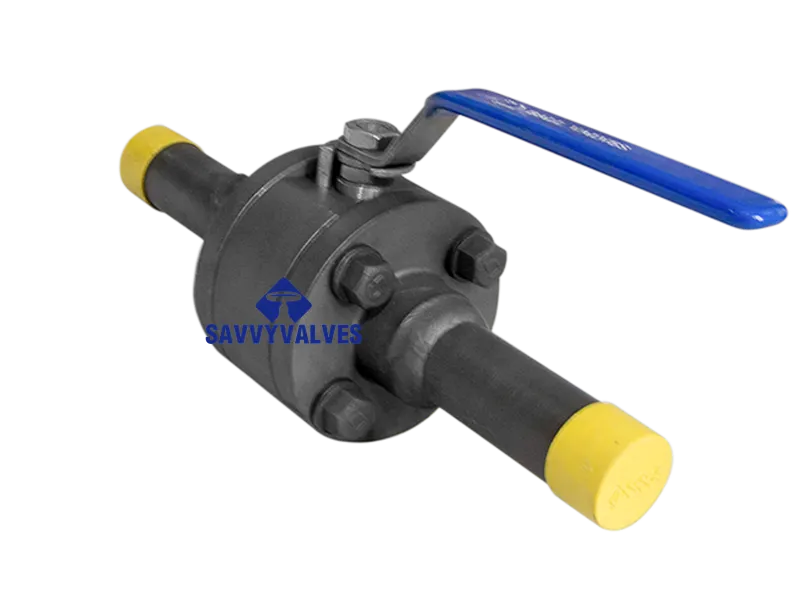

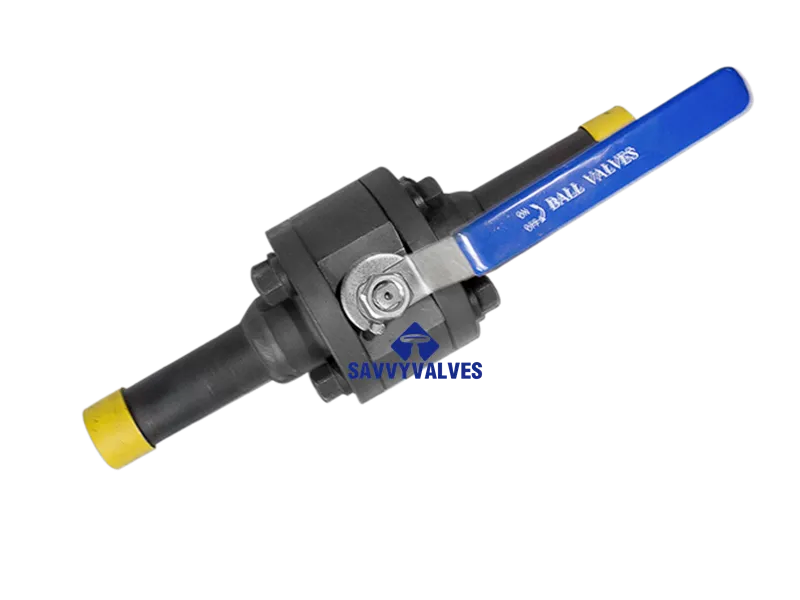

1″-800LB-Nipples 3-Piece Floating Ball Valve

TECHNICAL DATA SHEET

1″-800LB-Nipples 3-Piece Floating Ball Valve

1. Design Basis

1. Technical Specifications

III. Bill of Materials (Typical Options)

Note: Final material selection must conform to valve nameplate or manufacturer’s material certificate.

1. Dimensions & Weight (Reference)

• Face‑to‑face per manufacturer standard; NPT threads per ASME B1.20.1.

1. Key Features

1. 3‑Piece Body Construction – Easy inline maintenance without removing the valve from the pipeline.
2. Floating Ball Design – Line pressure pushes the ball against the downstream seat for bidirectional sealing.
3. Full Bore – Low flow resistance and pressure drop.
4. Anti‑static Device – Electrical continuity ≤10Ω between ball, stem and body; prevents static build‑up.
5. Blow‑out Proof Stem – Bottom‑mounted stem with blow‑out proof design for safety.
6. Multiple Material Options – Carbon steel, 304/316 stainless steel, duplex, etc.
7. Fire Safe Design Available – Optional API 607.

1. Applications

• Petrochemical pipelines
• Natural gas, compressed air systems
• Water treatment
• Pharmaceutical & bio‑engineering
• Food & beverage
• General industrial fluid control

VII. Testing & Inspection

VIII. Ordering Information

Please provide when ordering:

1. Nominal size (1″)
2. Pressure class (Class 800)
3. Body and trim material (e.g. A105 or 316SS)
4. End connection type (NPT, with nipples)
5. Seat / sealing material (PTFE, PEEK, metal, etc.)
6. Medium and operating temperature
7. Actuation type (manual / pneumatic / electric)
8. Additional requirements (fire safe, anti‑static, low emission, etc.)

1. Remarks

• This data sheet applies to 1″-800LB-Nipples 3-Piece Floating Ball Valve (non‑vacuum service). For vacuum version, refer to previous data sheets.
• For specific material (e.g. A105 or F316), supplementary mechanical properties and pressure‑temperature ratings can be provided.
