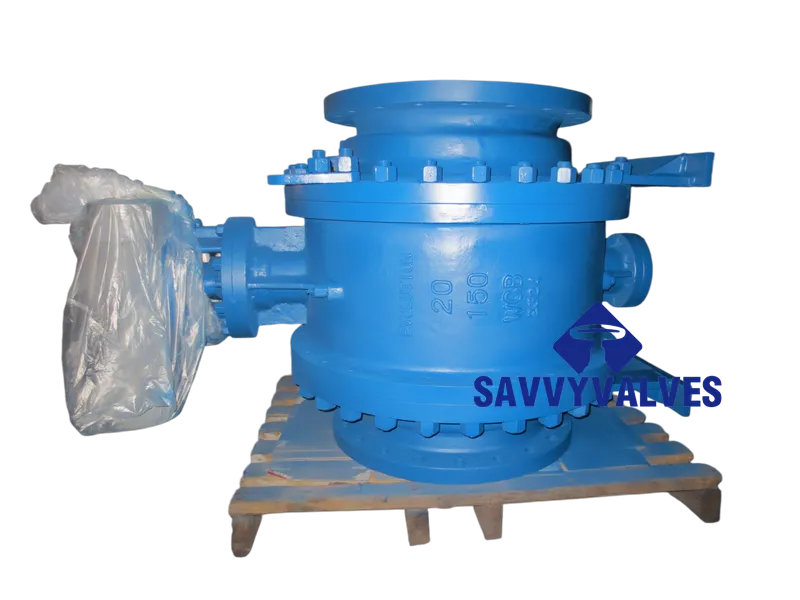

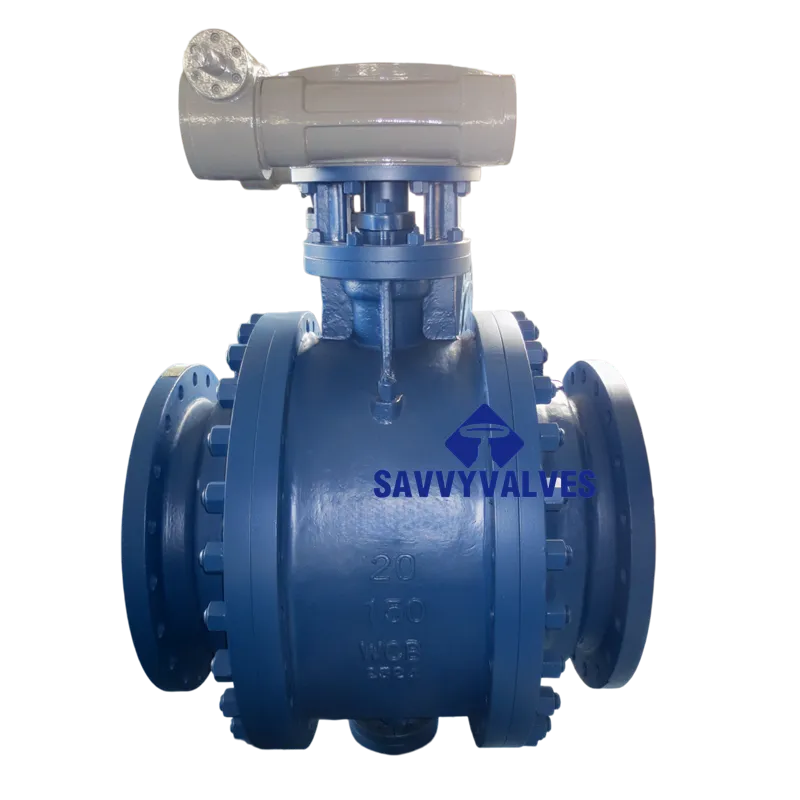

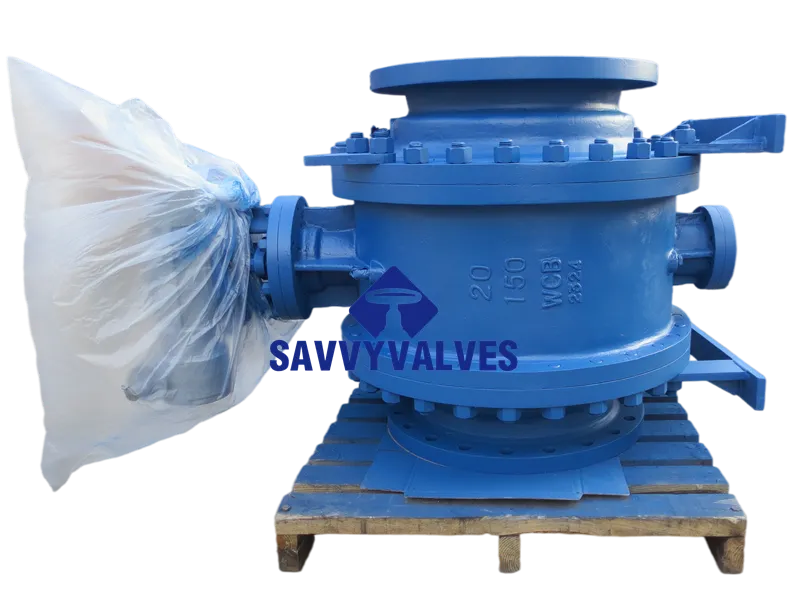

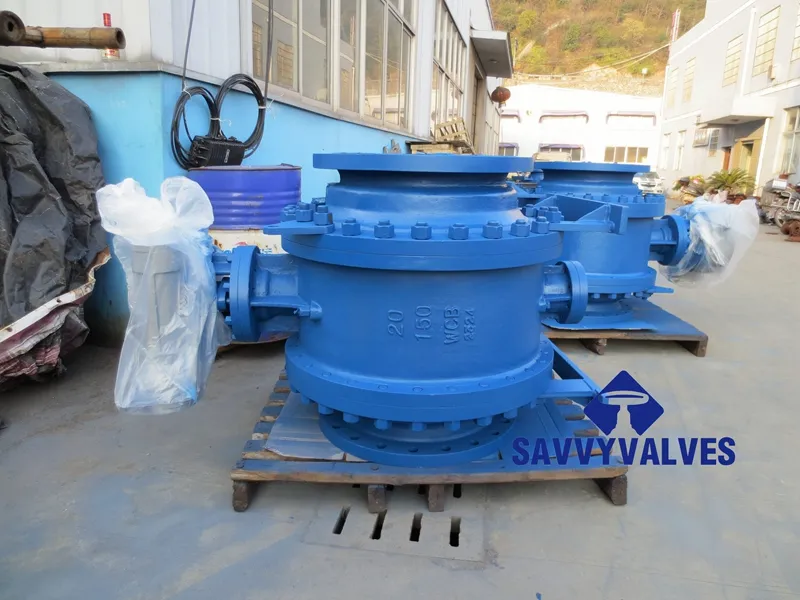

20″-150LB 3-Piece Trunnion Mounted Ball Valve

Description

Technical Data Sheet

3-Piece Trunnion Mounted Ball Valve

Project/Item: 3-Piece Fixed Ball Valve
Valve Size: 20 inches (20″)
Pressure Rating: 150LB (Class 150)

1. General Information

2. Main Technical Parameters & Performance

3. Main Material Specifications

Based on WCB Body + 316 Trim requirements:

4. Main Dimensions (For 20″ Class 150)

Typical dimensions per ASME standards. Variations may occur between manufacturers.

5. Design Features & Requirements

1. 3-Piece Bolted Body: The body consists of three parts (Body + 2 End Caps) bolted together. This allows for easy maintenance (seat/ball replacement) without removing the entire valve from the pipeline.
2. Trunnion Mounted Ball: The ball is fixed and supported by upper and lower stems/bearings. This design is ideal for 20″ large bore applications, reducing operating torque and ensuring stable performance under high differential pressure.
3. Double Piston Effect (DPE) Seats: Standard seats provide bidirectional sealing. The valve typically features automatic cavity pressure relief (the upstream seat acts as a piston, allowing overpressure in the body cavity to vent into the pipeline).
4. Emergency Sealant Injection: The valve body is equipped with sealant injection fittings. In case of seat damage, sealant can be injected to temporarily restore sealing.
5. Anti-Static Device: A spring-loaded plunger/ball ensures electrical continuity between the ball, stem, and body to prevent static spark buildup.
6. Secondary Metal Seal: In the event the soft seat is destroyed by fire, the ball will contact the metal seat support, providing a metal-to-metal seal (Fire Safe feature).

Note:

• This data sheet is based on standard ASME/API specifications.
• The gearbox dimensions (height, handwheel size) and overall weight may vary depending on the manufacturer and gearbox model. Please refer to the final manufacturer’s drawing for certified dimensions.
