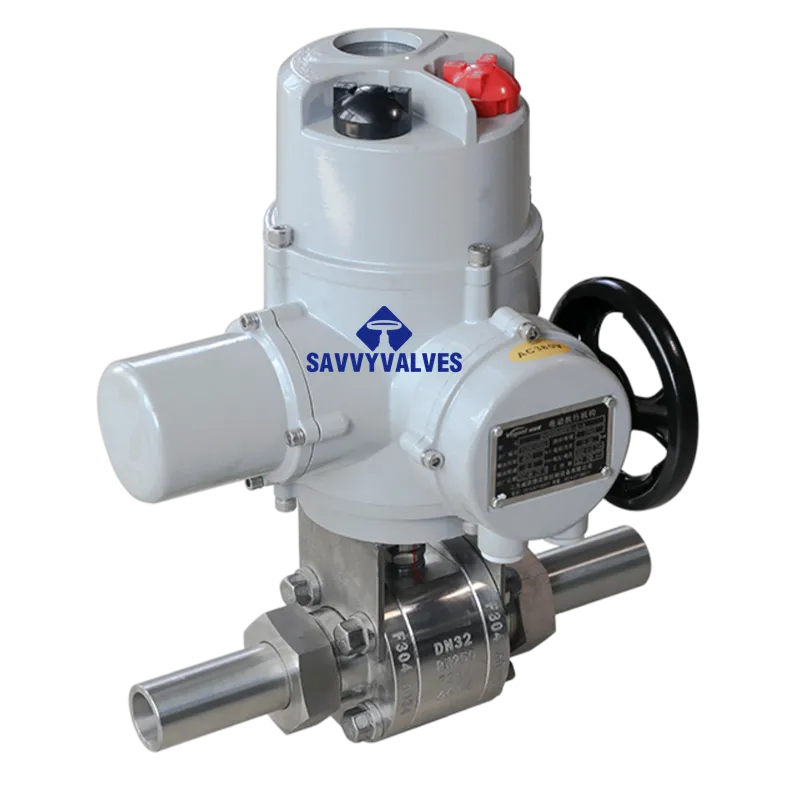

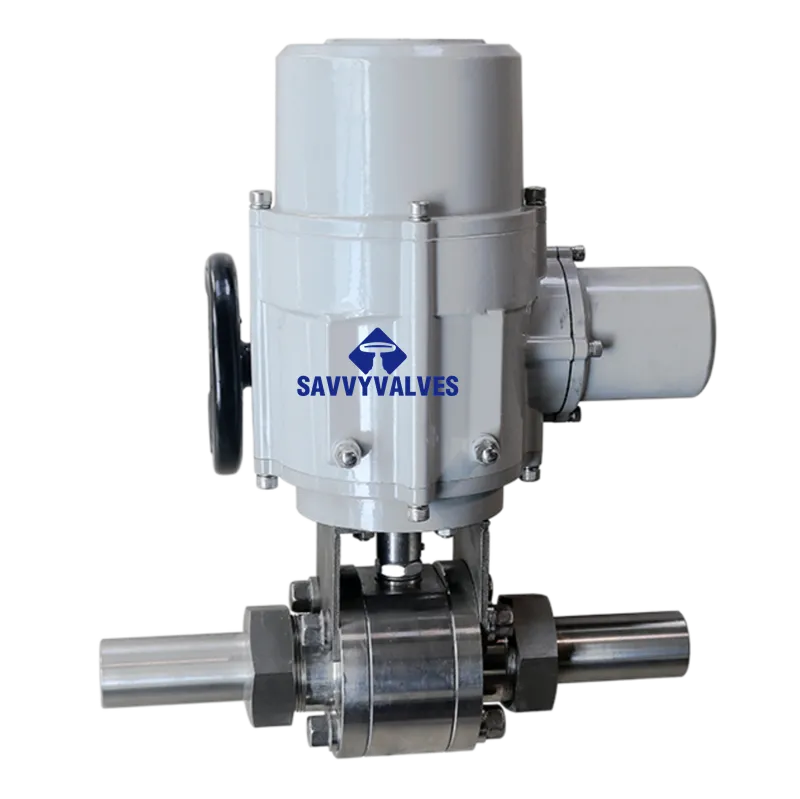

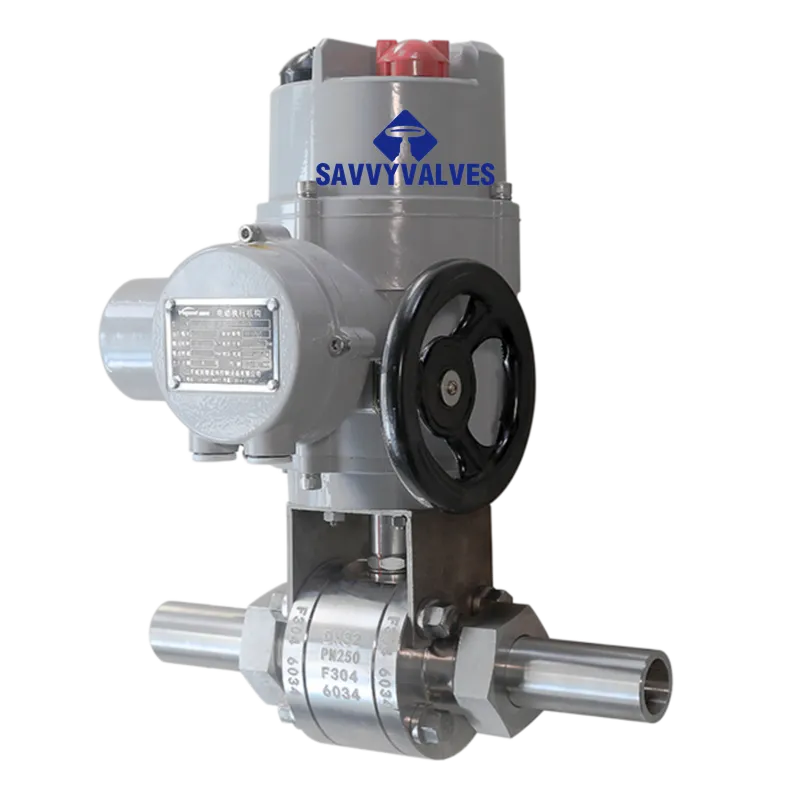

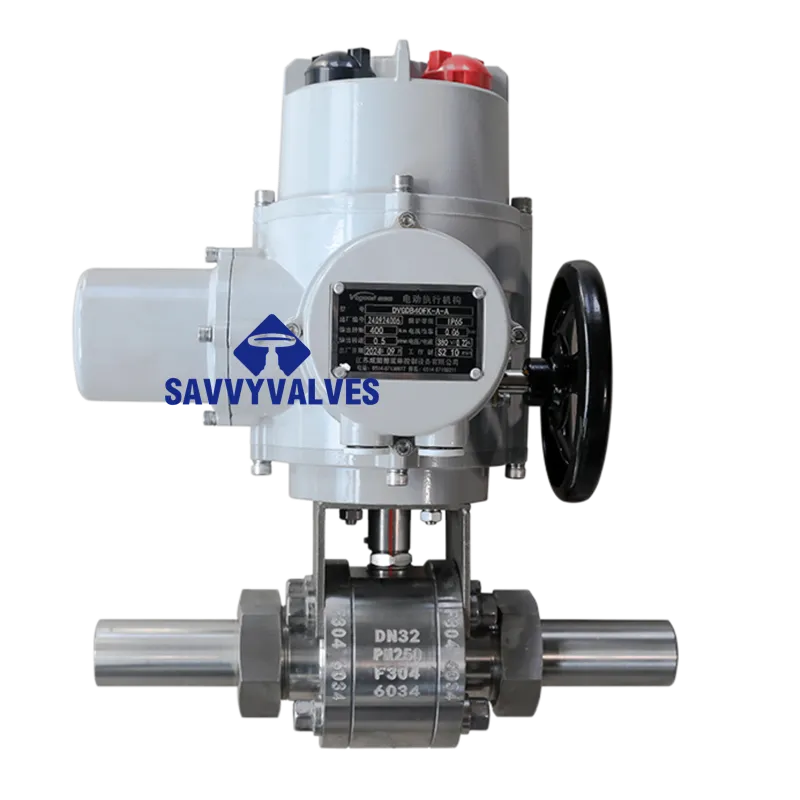

DN32-PN250-Nipples Motorized Floating Ball Valve

Motorized Floating Ball Valve – Technical Data Sheet

High Pressure Series | PN250 | Threaded Ends (Nipples)

1. Main Parts & Materials

2. Dimensions & Weight (Reference)

3. Motorized Actuator Specifications

4. Performance Features

1. High-Pressure Capability (PN250)
   – Forged steel body ensures structural integrity under extreme pressures up to 25 MPa.
2. Floating Ball Design
   – Ball presses against downstream seat under pressure, providing tight sealing.
3. Threaded End Connections (Nipples)
   – Easy installation in high-pressure piping systems without welding; suitable for compact layouts.
4. Electric Motorized Actuation
   – Enables remote automated operation; available with fail-in-place or fail-last functionality.
5. Versatile Seating Options
   – PTFE for standard service (bubble-tight shut-off)
   – PEEK or metal seat for high-temperature or abrasive applications
6. Compact & Robust
   – Small footprint suitable for skid-mounted systems and high-pressure hydraulic circuits.

5. Applications

• Hydraulic power units (HPU)
• High-pressure water jetting systems
• Oil & gas test benches
• Chemical injection skids
• Industrial high-pressure process lines

6. Testing & Compliance

7. Ordering Information

When ordering, please specify:

• Valve size: DN32
• Pressure rating: PN250
• Connection type: Threaded (NPT / BSP)
• Body material: A105N / 316 SS
• Seat material: PTFE / PEEK / Metal seated
• Actuator voltage and control type: On-off or modulating
• Optional accessories: Feedback potentiometer, heater, explosion-proof enclosure (if required)

Notes:

• The term “Nipples” indicates threaded end connections (male threads) for direct coupling into piping systems.
• Actuator sizing is critical for PN250 applications due to high operating torque; final selection depends on actual operating pressure and media.
• For high-temperature service (>150°C), PEEK seats or metal seats are recommended.
• Final dimensions and specifications are subject to approved engineering drawings and project requirements.
