TECHNICAL DATA SHEET

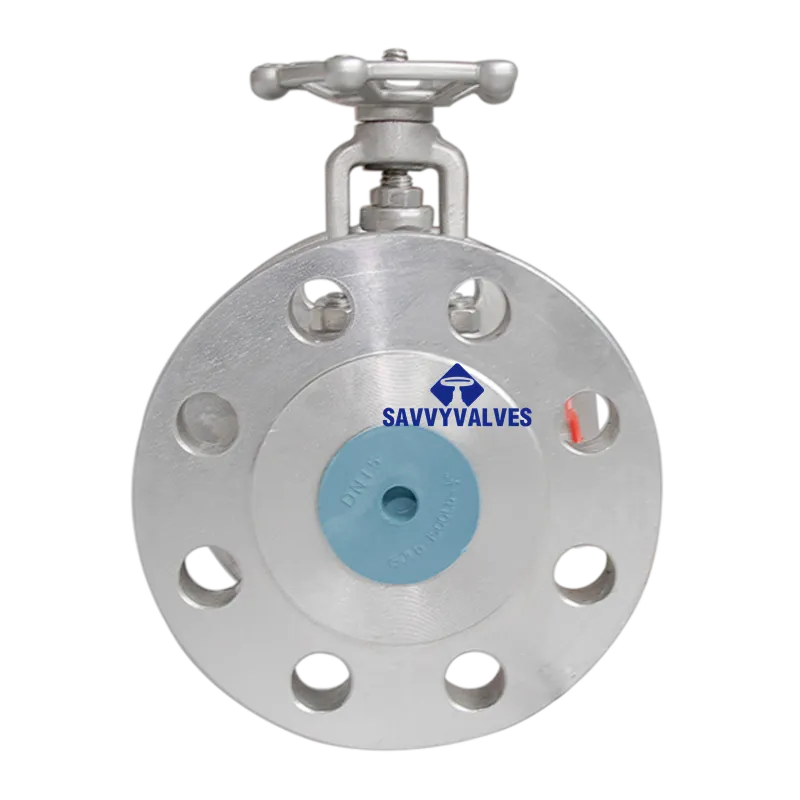

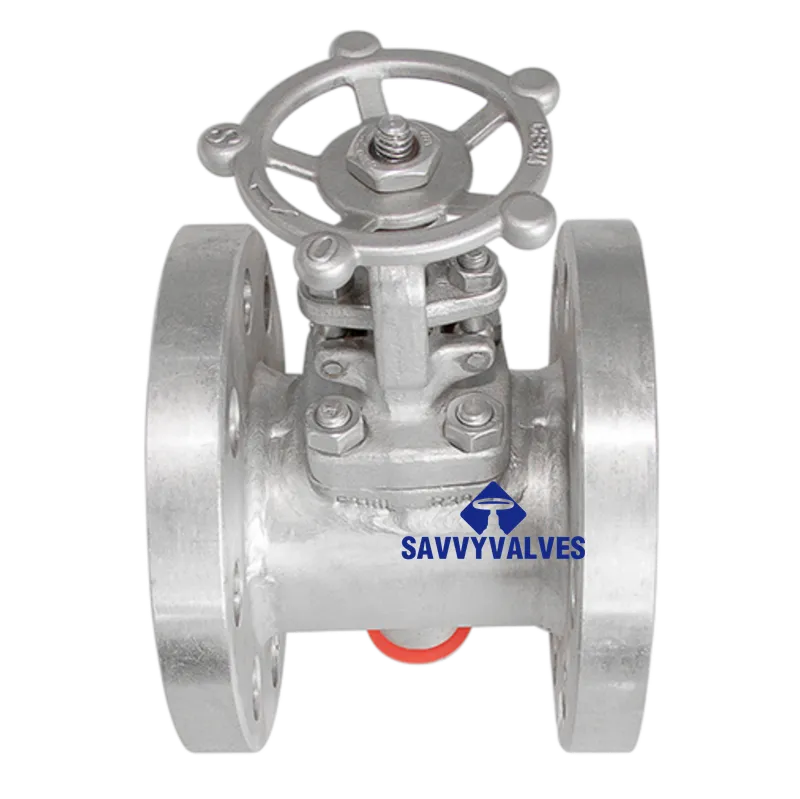

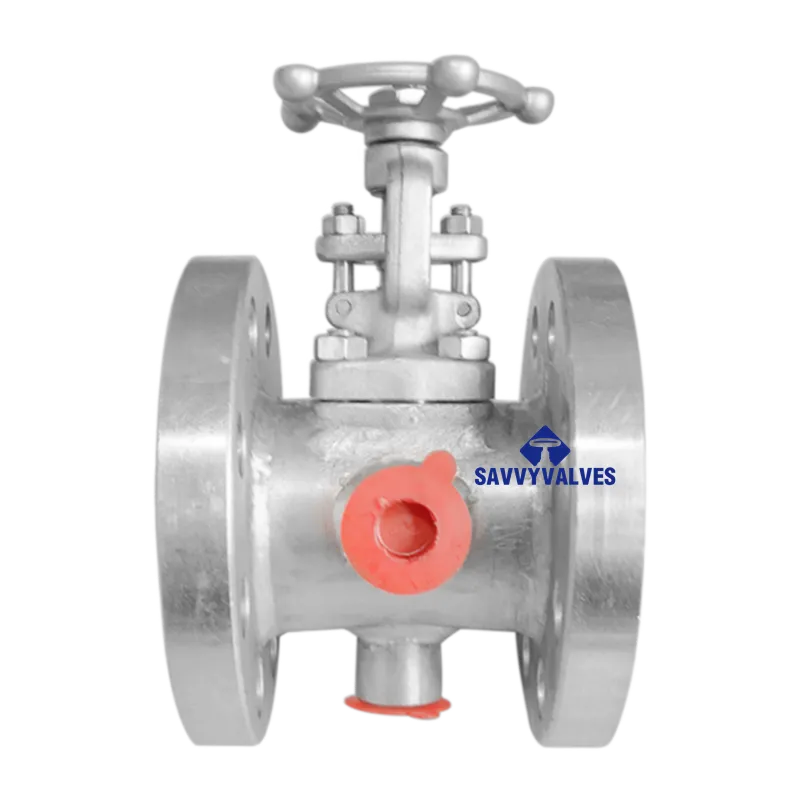

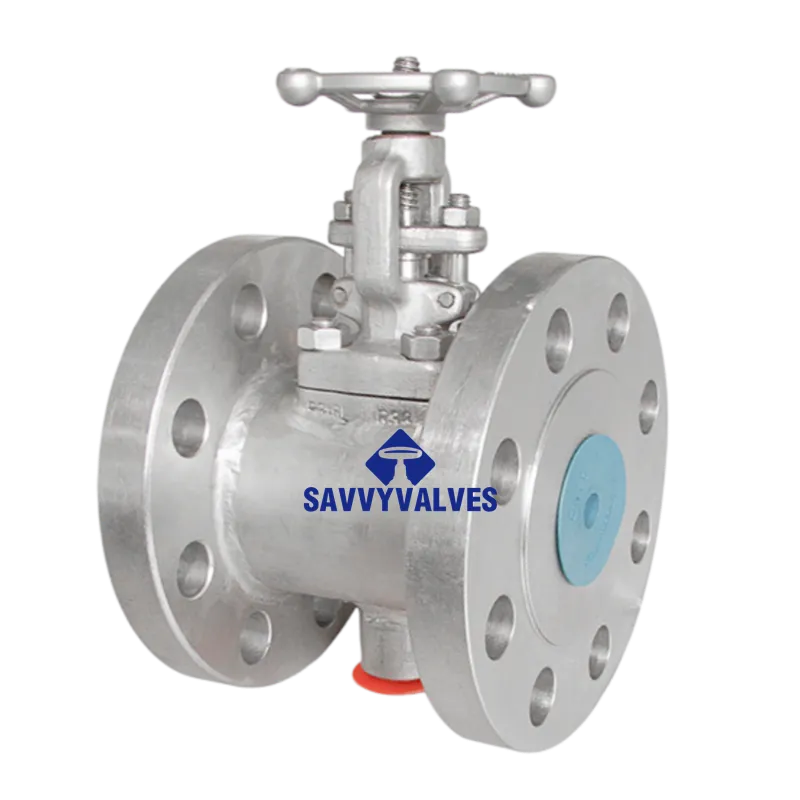

DN25-PN100-RF SS Jacket Floating Ball Valve
Item | Description |
Product Name | DN25 PN100 Raised Face Stainless Steel Jacketed Floating Ball Valve |
Model | DN25-PN100-RF-SS-JACKET |
Nominal Size | DN25 (1 inch) |
Pressure Class | PN100 (100 bar / 10.0 MPa / approx. 1450 psi) |
Construction | Floating ball, 2‑piece or 3‑piece (depending on manufacturer) |
End Connection | Raised Face (RF) flange per EN 1092-1 or ISO 7005 (PN100) |
Jacket Design | Integral jacket (welded), for steam or thermal oil heating |
Body Material | Stainless steel (typically CF8M / F316 or CF8 / F304) |
Jacket Material | Stainless steel (same as body or compatible) |
Service Condition | Viscous, crystallizing or high‑temperature media requiring heating, with corrosion resistance |
Parameter | Standard / Description |
Valve Design Standard | EN 12516 / ASME B16.34 (reference) |
Flange Connection Standard | EN 1092-1 (Type B1 or B2) or ISO 7005-1 PN100 |
Face‑to‑Face Dimension | Manufacturer standard (or EN 558) |
Jacket Design Standard | Per customer requirement or manufacturer standard (jacket pressure typically ≤1.6 MPa) |
Inspection & Testing | EN 12266 / API 598 |
Pressure Testing | Shell: 1.5× rated pressure; Seat: 1.1× rated pressure |
Parameter | Description |
Valve Type | Floating ball, full bore or reduced bore (full bore recommended) |
Jacket Type | Integral jacket with jacket connections (usually NPT or BSP threaded) |
Working Pressure (Main Valve) | PN100 (max. allowable pressure depends on material temperature; 10.0 MPa @ 20°C) |
Working Temperature (Main Valve) | Depends on seat material: |
Jacket Design Pressure | Typically 0.6 ~ 1.6 MPa (150 ~ 230 psi) |
Jacket Connections | Standard 1/4″ NPT or 1/2″ NPT female threads (both sides); customisable |
Suitable Media | Viscous liquids, polymers, bitumen, molten sulphur, hot melt adhesives, chocolate, corrosive hot media, etc. |
Operation | Lever handle (standard) / gear operator / pneumatic or electric actuator (optional) |
Anti‑static Device | Compliant with API 608 (standard) |
Blow‑out Proof Stem | Standard |
Fire Safe Design | Optional API 607 / ISO 10497 |
III. Bill of Materials (Stainless Steel Version)
Part Name | Material | Grade / Standard |
Main Body | Stainless steel | CF8M (ASTM A351) / F316 / CF8 (F304) |
End Caps | Stainless steel | Same as body |
Jacket | Stainless steel | 304 or 316 (welded to body) |
Ball | Stainless steel | Same as body + hard chrome / electroless nickel / Stellite (optional) |
Stem | Stainless steel | A182 F304 / F316 / 17-4PH |
Main Seat | PTFE / RPTFE / PEEK / metal seated | |
Stem Seal / Packing | PTFE / Graphite / flexible graphite | |
Body Gasket | Stainless steel + graphite spiral wound / PTFE | |
Anti‑static Spring | Stainless steel | 301 or 316 |
Studs / Nuts | Stainless steel | A193 B8 / A194 8 or equivalent |
Handle | Stainless steel or carbon steel (with plastic grip) |
Note: Final material selection must conform to valve nameplate or manufacturer’s certificate.
Size | Pressure Class | Flange Standard | Face‑to‑Face L (mm) | Center Height H (mm) | Flange OD (mm) | Weight (kg) |
DN25 | PN100 | EN 1092-1 RF | ~160 | ~70 | ~140 | approx. 6–9 (stainless steel) |
Parameter | Description |
Jacket Coverage | Covers entire body and part of ends for even heating of ball cavity |
Heating Media | Steam, hot water, thermal oil |
Maximum Jacket Pressure | 1.6 MPa (higher on request) |
Maximum Jacket Temperature | Depends on body material and seals; typically ≤300°C |
Connection Type | One NPT or BSP female thread on each side (inlet/outlet); flanged optional |
Jacket Material | Stainless steel 304/316 (compatible with body) |
Welding Requirement | Full penetration weld between jacket and body; pressure tested |
VII. Applications
VIII. Testing & Inspection
Test Item | Standard | Requirement |
Shell Strength (Main Valve) | EN 12266 / API 598 | 1.5×PN100, no visible leakage |
Low Pressure Seat Test | EN 12266 | 0.6 MPa air, no visible bubbles |
High Pressure Seat Test | EN 12266 | 1.1×PN100, zero leakage across seats |
Jacket Strength Test | Per design pressure | 1.5× jacket design pressure, no leakage |
Jacket Seal Test | Per design pressure | No pressure drop during hold |
Anti‑static Test | API 608 | Resistance ≤10Ω |
Factory Testing | 100% | Each valve with unique serial number and quality tag |
