DN80-PN40-RF Soft Seated Floating Ball Valve

Technical Data Sheet

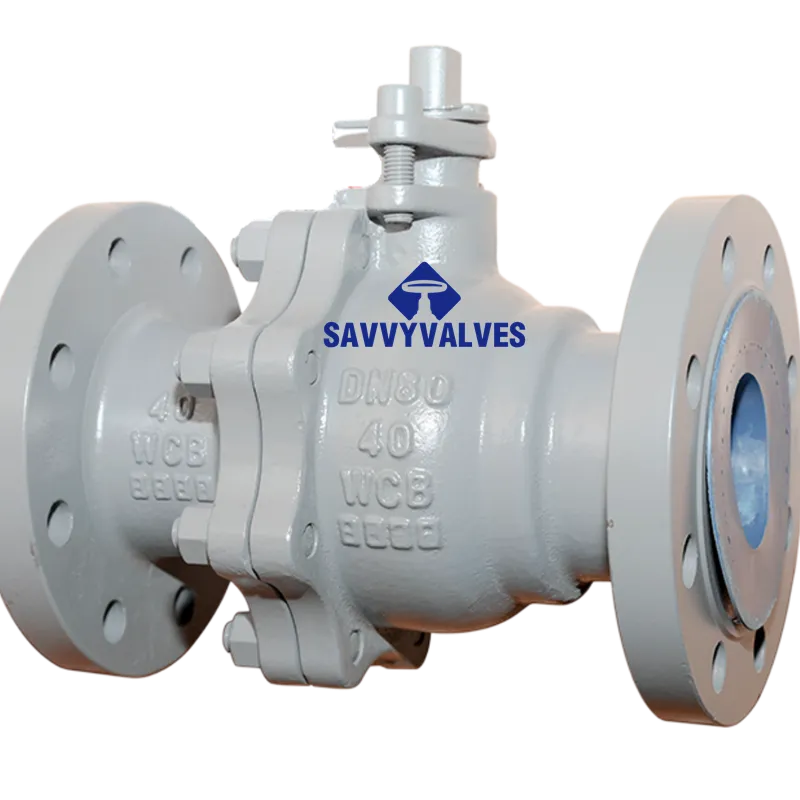

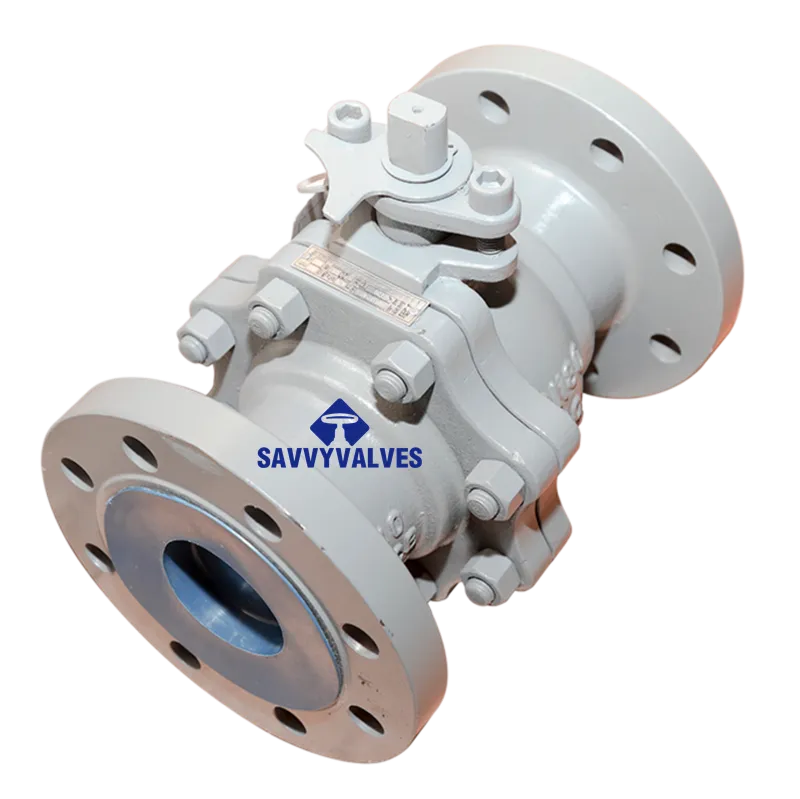

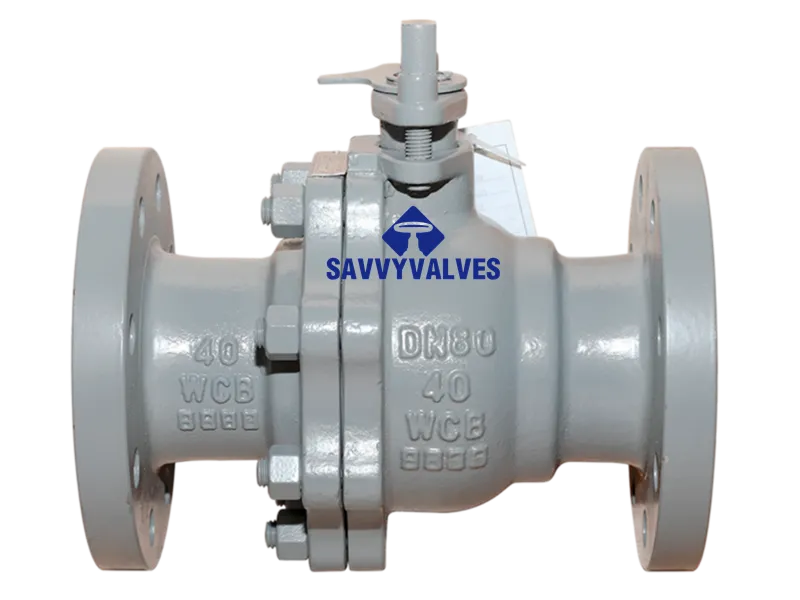

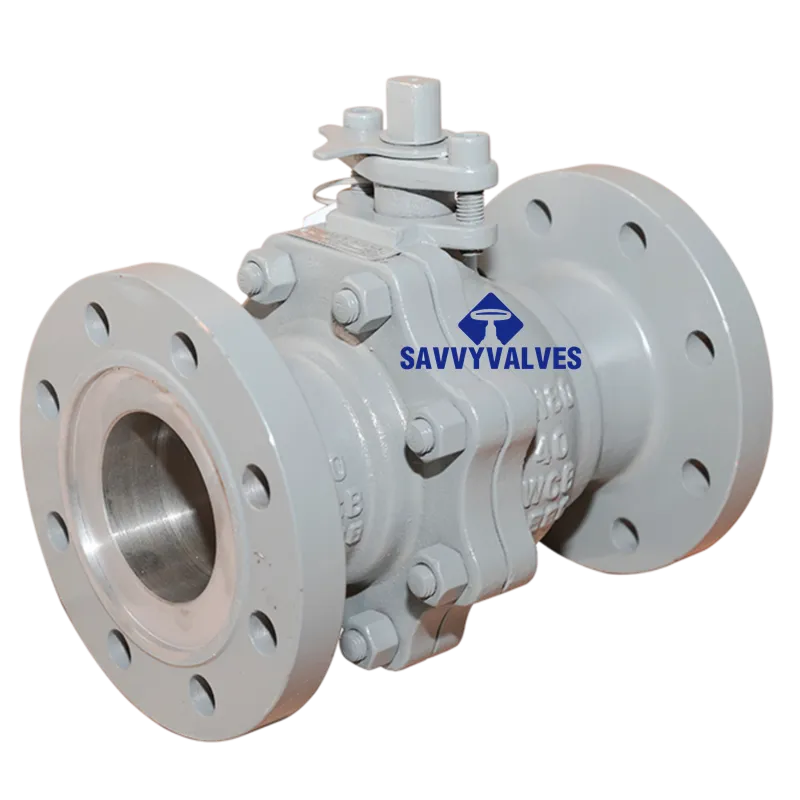

Product: DN80 – PN40 Flanged Soft Seated Floating Ball Valve

1. Product Description

This flanged floating ball valve features a soft‑seated design, providing excellent bidirectional shut‑off performance. Compact construction, low operating torque, and fast quarter‑turn operation make it suitable for a wide range of applications in oil, gas, petrochemical, water treatment, pharmaceutical, and general industrial services for on‑off control.

2. Main Technical Parameters

3. Bill of Materials (Typical)

4. Key Features

1. Soft Seating

• PTFE or reinforced PTFE seats offer excellent self‑lubrication and tight shut‑off (zero leakage).
• Low friction torque, smooth operation, and extended service life.

• Stem is inserted from inside the body, preventing ejection under pressure, ensuring safety even in abnormal pressure conditions.

• Grounding springs provide electrical continuity between ball, stem, and body to prevent static charge buildup in hazardous environments.

• Floating ball design allows equal sealing in both directions; no orientation limitation.

• Conforms to API 607 / ISO 10497. In case of soft seat burnout, secondary metal‑to‑metal sealing maintains basic integrity.

5. Dimensions & Weight (Reference)

Values are typical for EN 1092‑1 PN40 RF flanges. Final dimensions to be confirmed from certified GA drawings.

6. Design & Manufacturing Standards

Testing:

• Shell strength test: 1.5 × rated pressure
• Low‑pressure seat test: 0.6 MPa
• High‑pressure seat test: 1.1 × rated pressure

7. Ordering Information

Please specify the following when placing an order:

1. Media and operating temperature — determines seat and packing materials
2. Flange standard and facing — EN / ASME / GB; RF / FF / RTJ, etc.
3. Body and trim materials — based on corrosion resistance requirements
4. Actuation type — lever, gear, pneumatic, electric, etc.
5. Special requirements — antistatic, fire safe, NACE, ATEX, etc.
6. Additional documentation — material test reports (EN 10204 3.1), pressure test reports, NDT reports, etc.

Disclaimer: This technical data sheet is for reference only. Final product dimensions, materials, and specifications may vary based on actual service conditions and manufacturing processes. Please refer to the approved engineering drawings and the final purchase agreement.
