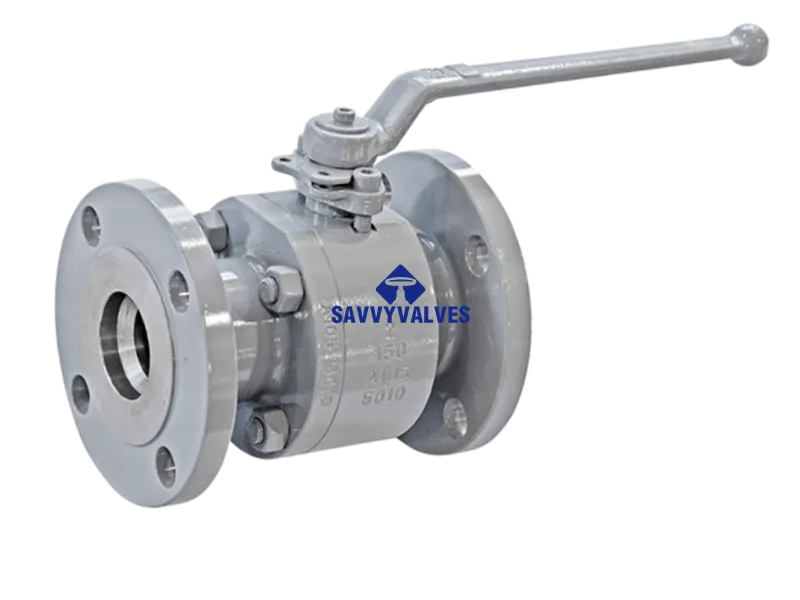

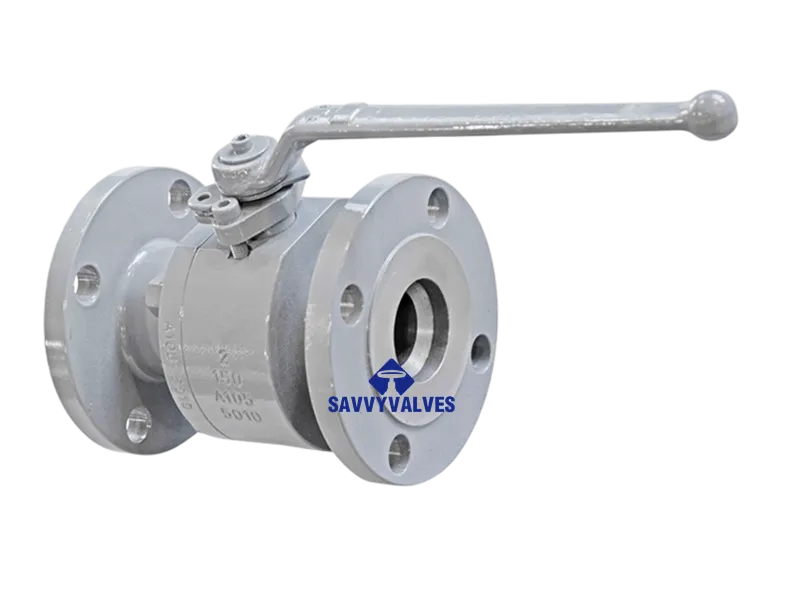

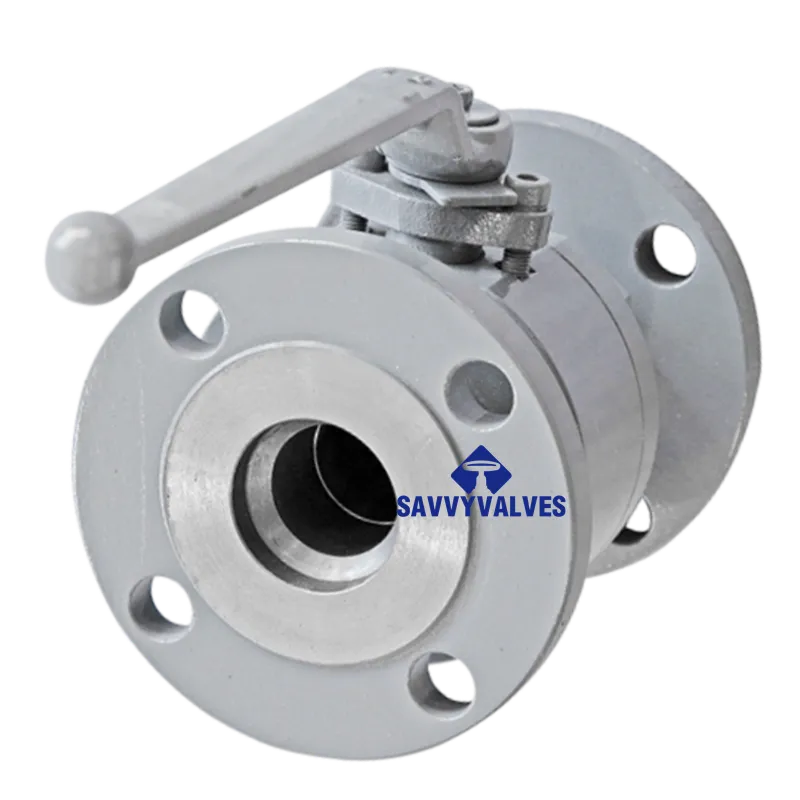

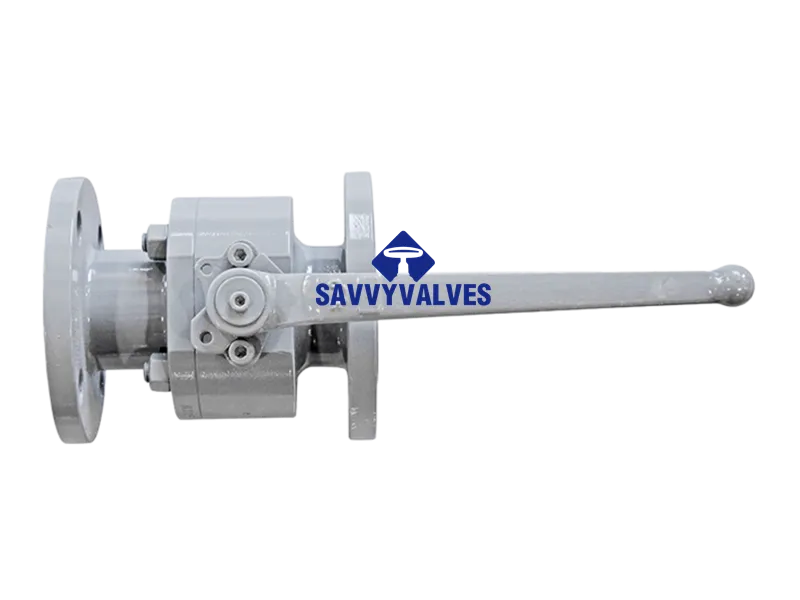

2″-150LB Flange Floating Ball Valve

Product Technical Data Sheet

Product Name: Flanged Floating Ball Valve
Model / Size: 2″ – 150LB (RF) / Floating Type

1. General

This product is a straight-through ball valve with flanged ends and a floating ball design. It is suitable for use in petroleum, chemical, natural gas, water treatment, and general industrial pipelines for isolating or connecting media. The valve features bidirectional sealing, low operating torque, and reliable sealing performance.

2. Basic Parameters

3. Design & Manufacturing Standards

4. Main Component Materials

5. Dimensions & Weight

6. Operating Data

7. Features

1. Bidirectional Sealing – The floating ball is pressed against the downstream seat by line pressure, providing tight shut‑off with no flow direction restriction.
2. Fire‑Safe Design (Optional) – Anti‑static design available; fire‑safe configuration with graphite backup seat meets API 607 / API 6FA.
3. Blow‑out Proof Stem – Stem is inserted from inside the body with a backseat to prevent blowout under sudden pressure surges.
4. Low Operating Torque – Precisely machined ball and seat offer low friction, quick quarter‑turn operation, and reduced torque.

8. Ordering Information

Please confirm the following when placing an order:

1. Size (2″) and pressure class (150LB);
2. Body material (carbon steel / stainless steel);
3. Flange standard (ASME B16.5 / HG/T 20615, etc.);
4. Locking device requirement (yes/no);
5. Fire‑safe and anti‑static requirements;
6. Actuation type (manual, pneumatic, electric).
