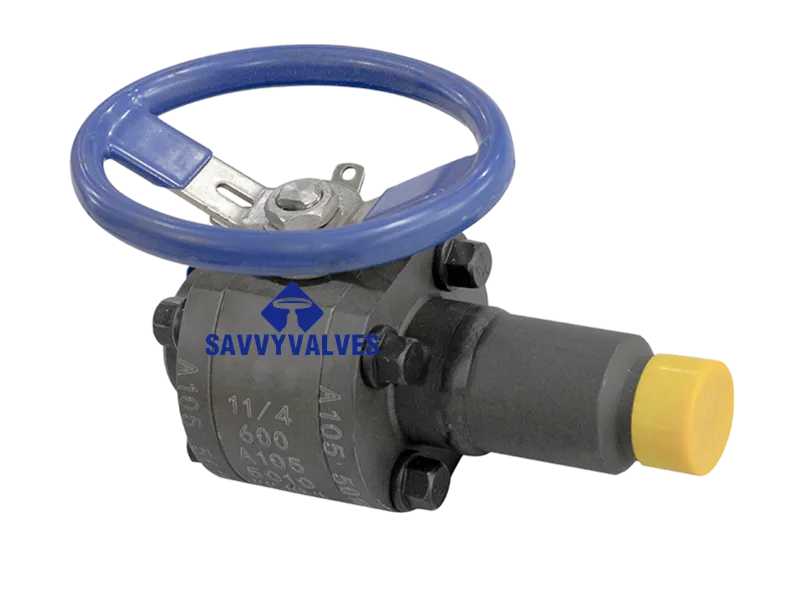

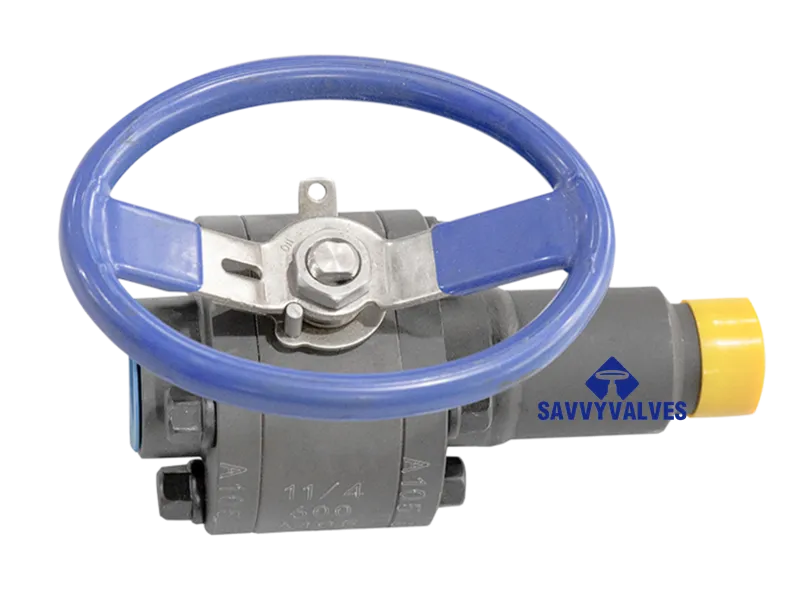

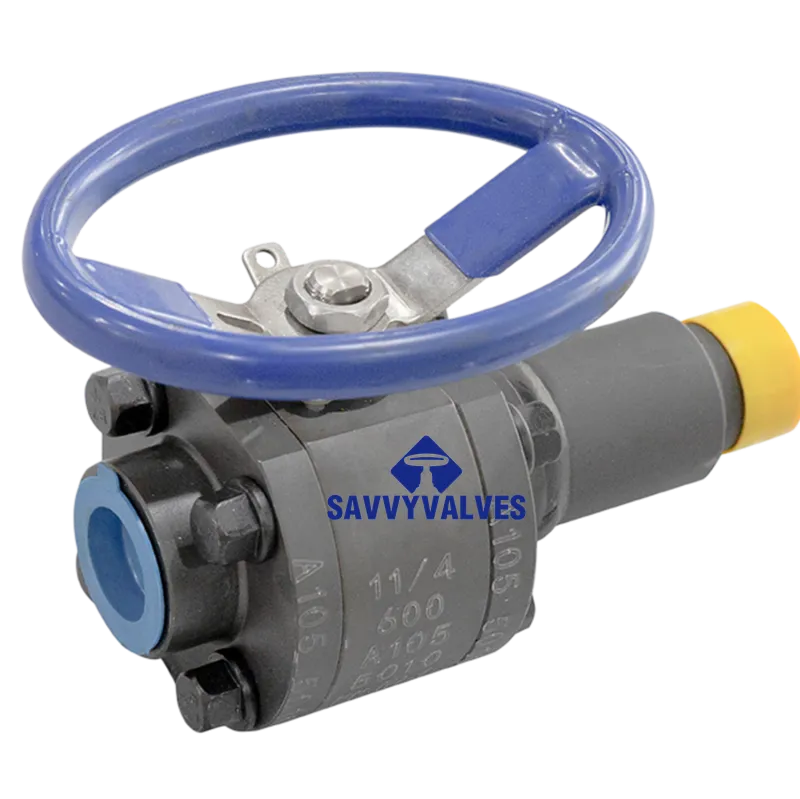

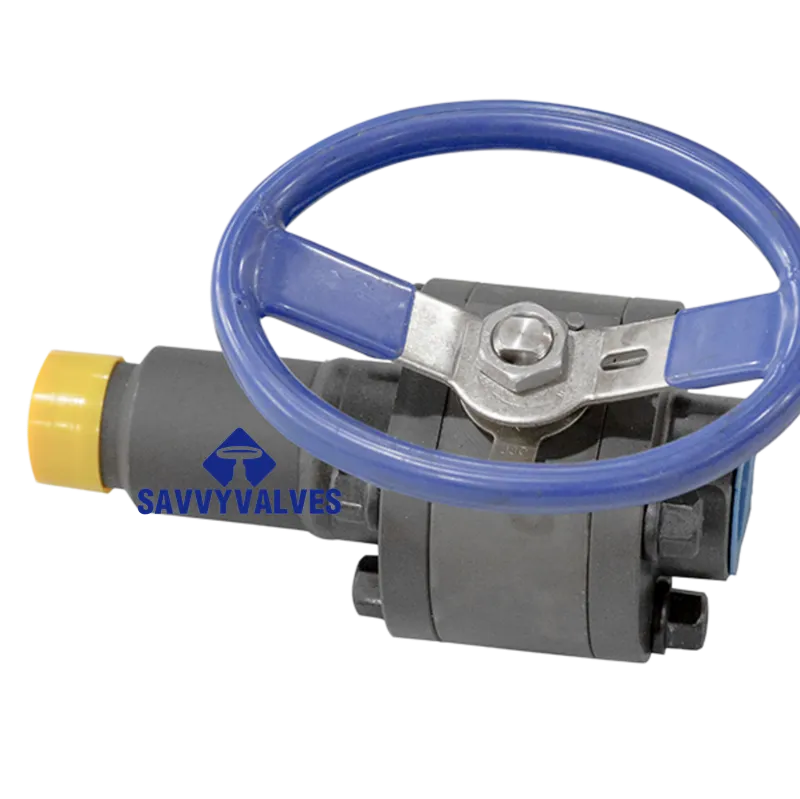

1-1/4″-600LB-SW 3-Piece Ball Valve

TECHNICAL DATA SHEET

PRODUCT: 3-Piece Ball Valve
MODEL / REFERENCE: 1-1/4″-600LB-SW*NPTM
TYPE: Full Port, Floating Ball, End Entry (3-Piece Bolted Body)

1.0 PRODUCT DESCRIPTION & APPLICATION
A robust 3-piece ball valve designed for reliable on/off service in high-pressure industrial applications. The three-piece bolted body construction (two end caps and a center section) allows for easy in-line maintenance and seat replacement without removing the valve from the pipeline. This model features a Socket Weld (SW) end on one side and a Male NPT (NPTM) threaded end on the other, providing installation flexibility for systems transitioning between welded and threaded piping. Suitable for a wide range of applications including process instrumentation, oil and gas, chemical transfer, power generation, and general industrial services.

2.0 DESIGN & STANDARDS

• Design Standard: ASME B16.34 (Valve Design)
• Pressure Rating: Class 600 (600 LB)
• Socket Weld End: ASME B16.11
• Threaded End: ASME B1.20.1 (NPT)
• Face-to-Face: Compliant with standard industry dimensions for 3-piece valves.
• Fire Safe: API 607 / ISO 10497 (Optional)
• Anti-Static: Per API 608 (Standard)
• Blow-Out Proof Stem: Per API 608 (Standard)

3.0 GENERAL SPECIFICATIONS

4.0 PRESSURE-TEMPERATURE RATINGS

• Rated per ASME B16.34 for Class 600. The maximum allowable working pressure depends on the selected body and seat materials and the operating temperature.
• Example (CF8M Body with PTFE Seats): 1440 psi @ 100°F (38°C), ~285 psi @ 450°F (232°C). Consult detailed P-T chart.

5.0 MATERIALS OF CONSTRUCTION (STANDARD)

6.0 KEY DESIGN FEATURES

• 3-Piece Bolted Body: Enables easy maintenance, seat inspection/replacement, and cleaning without removing valve ends from the pipeline.
• Dual End Connections: Offers versatile installation where welded and threaded connections are required. Socket Weld provides a strong, leak-proof joint. Male NPT allows for straightforward threaded installation.
• Full Port Design: Provides a flow area approximately equal to the pipe ID, minimizing pressure loss.
• Blow-Out Proof Stem: Stem is securely retained, ensuring safety under full pressure.
• Anti-Static Device: Ensures electrical continuity between ball and body.
• Locking Device Tab: On the handle for padlock application (safety isolation).

7.0 TESTING & INSPECTION

• Shell & Seat Pressure Test: Per API 598 / ISO 5208 standard.
• Hydrostatic Shell Test: 1.5 x Class Rating (900 psi for Class 600).
• Seat Leak Test: 1.1 x Class Rating (660 psi for Class 600) with air or water.
• High-Pressure Gas Test: Optional (per customer request).
• Documentation: Certificate of Compliance (COC) with test results. Material Test Reports (MTRs) available upon request.

8.0 DIMENSIONS & WEIGHT

• Socket Weld (SW) End: Prepared per ASME B16.11. Customer must ensure pipe end is prepared correctly for insertion.
• NPT Male (NPTM) Thread: Tapered thread per ASME B1.20.1. Sealant (e.g., thread tape/paste) is required for leak-tight joint.
• Face-to-Face: Standard dimension for 1-1/4″ Class 600 3-piece ball valve. Detailed drawing available upon request.
• Weight: Approximately [e.g., 8-10 lbs / 3.6-4.5 kg] depending on material.

9.0 INSTALLATION & MAINTENANCE NOTES

• Ensure the valve is in the fully open position during welding of the Socket Weld end to prevent heat damage to internal seals.
• Use appropriate thread sealant compatible with the process fluid on the NPTM end.
• For disassembly, relieve line pressure completely before loosening the two body bolts.
• Regular maintenance (cleaning, seal replacement) is simplified due to the 3-piece design.

10.0 OPTIONS & ACCESSORIES

• Actuation: Pneumatic (double-acting/spring-return), Electric, Hydraulic actuators with mounting kits.
• Gear Operator for high-cycle or high-torque applications.
• Mounting Pad / ISO 5211 Top Flange for easy actuator installation.
• Locking Handle / Limit Switch Kit
• Stem Extension for insulation or buried service.
• Drain / Vent Port on the body cavity.
• Fire-Safe Seats & Stem Seals (per API 607)
• Special Materials & Coatings

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
