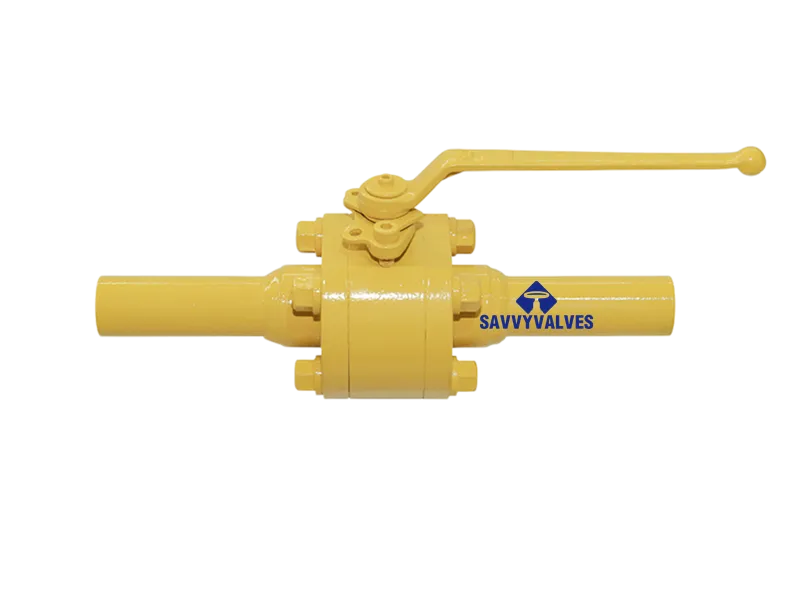

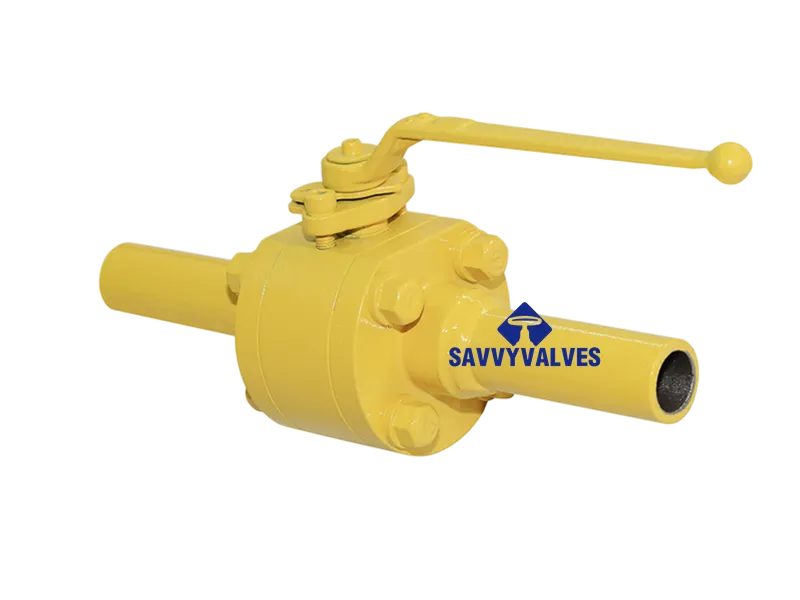

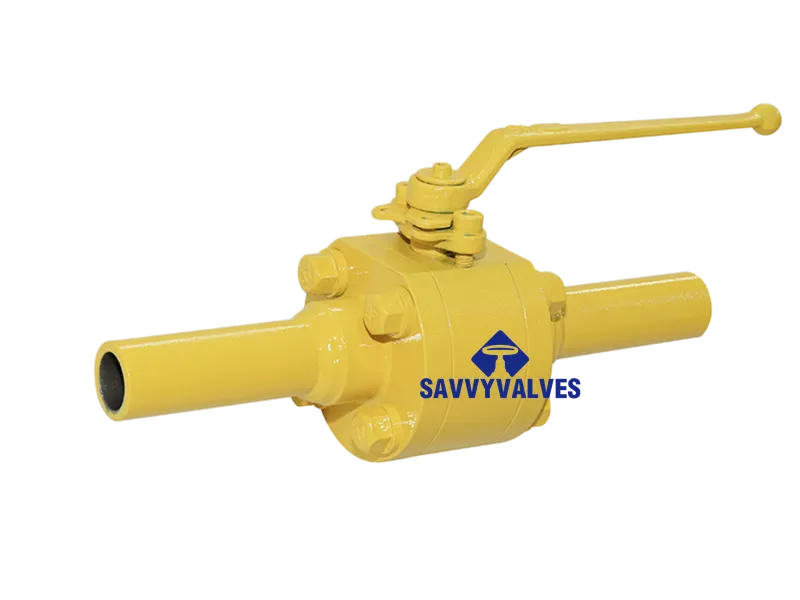

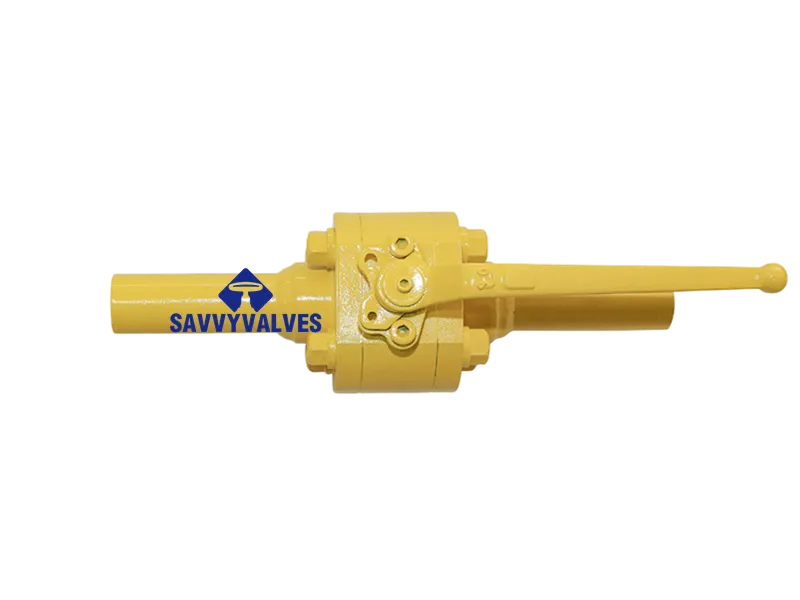

1″-600LB-Nipples End Metal Seated 3-Piece Floating Ball Valve

Technical Datasheet

Product Name: 3-Piece Metal Seated Floating Ball Valve with Nipples End
Model: 1″-600LB Nipples End Metal Seated 3-Piece Floating Ball Valve

1. General Information

2. Technical Specifications

3. Main Material of Parts

4. Main Dimensions & Connection Data (Unit: mm/in)

Note: Nipples ends typically include male NPT threads (ASME B1.20.1) or socket weld ends on both sides for direct connection to pipe.

Note: Dimensions above are typical. Final dimensions should be based on approved manufacturer drawings.

5. Applicable Design Standards

• Design & Manufacture: API 608 / ASME B16.34 / ISO 17292
• End Connections: ASME B1.20.1 (NPT Threads) / ASME B16.11 (Socket Weld)
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598 / ISO 5208 (Leakage Class V or VI)
• Fire Safe Design: API 607 / ISO 10497
• Anti-Static: API 608 / ISO 17292

6. Product Features

1. Metal Seated Design: Hard-faced seat and ball (Stellite, Tungsten Carbide, or Hard Chrome) provide exceptional wear resistance, high-temperature capability (up to 500°C+), and resistance to abrasive media.
2. 3-Piece Construction: Swing-out design allows for easy in-line maintenance; seats, ball, and seals can be replaced without removing the valve body from the pipeline.
3. Nipples End Connection: Factory-installed nipples (threaded or socket weld) provide a compact, ready-to-install solution, eliminating the need for separate pipe nipples and reducing potential leak points.
4. Floating Ball Design: Ball is pressed against the downstream seat under pressure, ensuring tight shut-off; the spring-loaded metal seat ensures consistent contact even under low pressure or thermal cycling.
5. High Temperature Capability: Metal-to-metal sealing allows operation in high-temperature applications where soft seats (PTFE, PEEK) would fail.
6. Blow-out Proof Stem: Stem is designed to be retained within the body even if the gland nut is loosened under pressure.
7. Anti-Static Device: Spring-loaded ball/plunger ensures electrical continuity between ball, stem, and body to prevent static spark build-up.
8. Fire Safe Design: Compliant with API 607, ensuring secondary metal-to-metal sealing in the event of fire damage to primary seals.

Remarks:

• Material Options: Available in A105 Carbon Steel (for non-corrosive high-temperature services) or F316 Stainless Steel (for corrosive services). Specify material grade when ordering.
• Seat Material: Confirm required seat hard-facing material based on temperature and media abrasiveness (Stellite, Tungsten Carbide, etc.).
• Nipple Type: Confirm if NPT threaded or Socket Weld nipples are required.
• Locking Device: Lockable lever handle is available upon request for safety and security.
• For specific dimensional data and torque values, please refer to the official certified drawings from the manufacturer.
