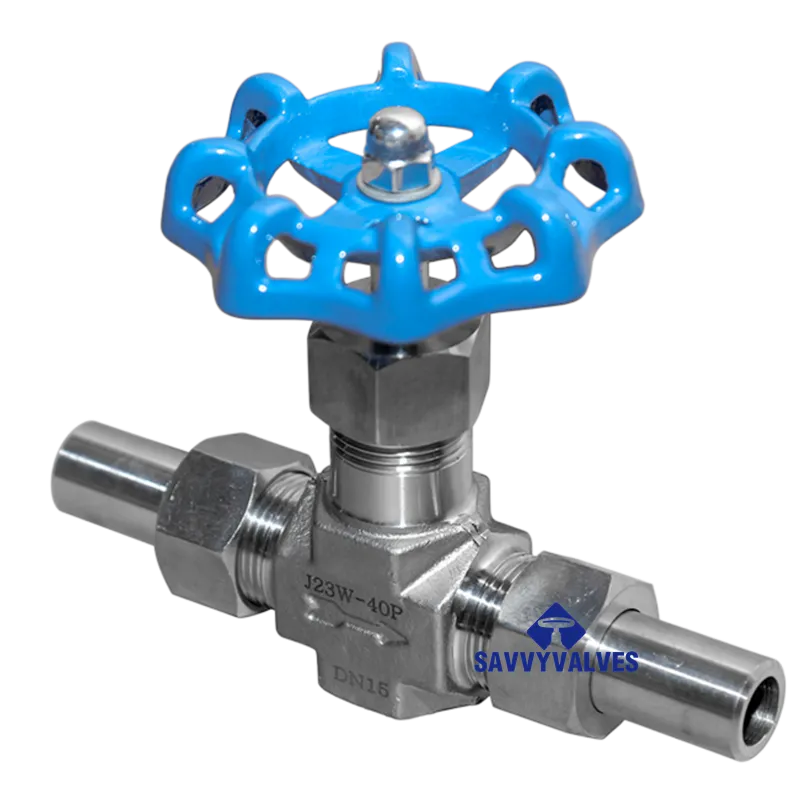

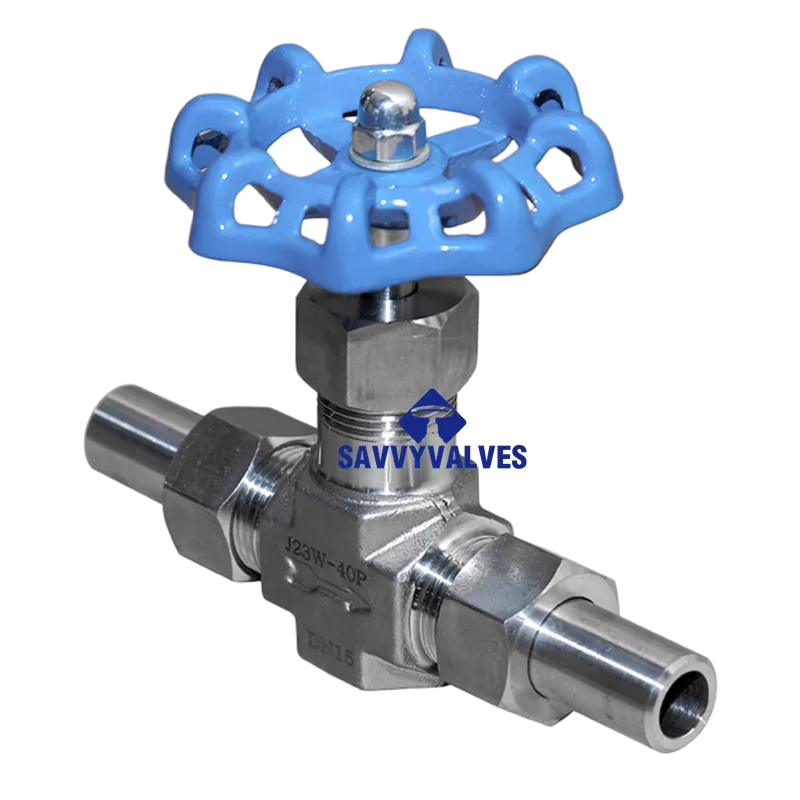

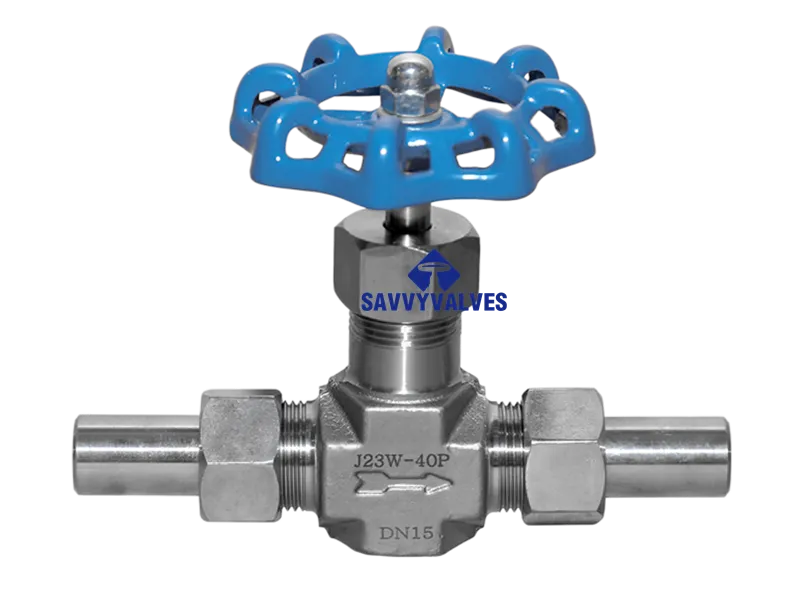

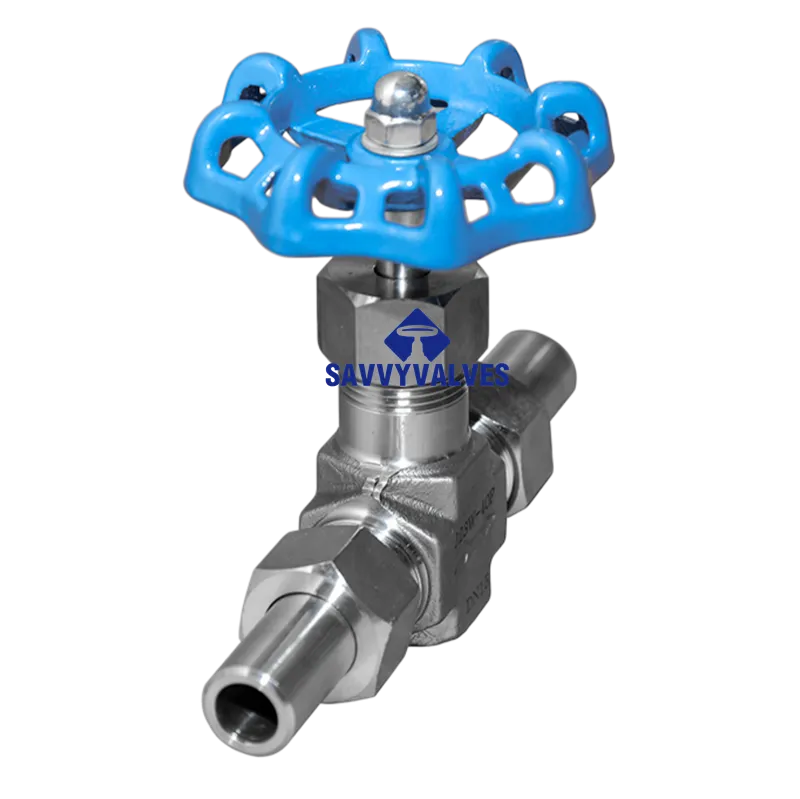

Stainless Steel Needle Valve – Technical Data Sheet
Size: DN15 | Pressure: PN40 | Connection: NPT with Nipples
Item | Specification |
Product Name | Needle Valve, Integral Bonnet, Non‑rotating Stem |
Nominal Size | DN15 (1/2″) |
Pressure Rating | PN40 (4.0 MPa / 40 bar / 580 psi) |
Connection Type | Female NPT (both ends) c/w Nipples – two stainless steel male NPT nipples included (threaded both ends) |
Nipple Specification | 1/2″ NPT male × 1/2″ NPT male, length ~50–80 mm (as specified) |
Body Material | Stainless Steel (SS304 / SS316) |
Stem Tip | Metal‑to‑metal (sharp needle) or soft tip (PTFE/PEEK) optional |
Packing | PTFE or Grafoil (graphite) |
Handle Type | Phenolic knob or metal T‑handle |
Temperature Range | -29°C ~ +200°C (PTFE packing) / -29°C ~ +400°C (graphite packing) |
Applicable Media | Water, oil, gas, steam, chemicals, instrumentation fluids |
Component | Material (Standard) | Optional Material |
Body | SS316 (forged) | SS304, Monel, Hastelloy |
Stem | SS316 (rolled threads) | SS316 with Stellite tip, Monel |
Stem Tip | Integral 316 (sharp angle) | PTFE, PEEK, Vespel |
Packing | PTFE (chest) | Flexible graphite, Grafoil |
Packing Nut | SS304 / SS316 | – |
Handle | Phenolic black knob | SS T‑handle, lockable handle |
Nipples (included) | SS316 seamless tube, NPT male both ends | SS304, length custom |
Gland / Bonnet | SS316 (integral or threaded) | – |
Dimension | mm (approx.) | inch (approx.) |
End Connection (valve) | 1/2″ NPT female | – |
Overall Length (valve body) | 65 – 80 | 2.56 – 3.15 |
Height (handle up) | ~110 – 130 | – |
Hex flats (body) | 22 mm (AF) | 7/8″ |
Panel mounting (optional) | 35 mm centre distance | – |
Weight (valve only) | ~0.3 – 0.5 kg | ~0.7 – 1.1 lbs |
Weight (with 2 nipples) | ~0.6 – 0.9 kg | – |
Note: Nipple length is typically 50 mm (2″) each unless specified otherwise.
Parameter | Value |
Cv (full open) | ~0.8 – 1.2 (depending on orifice) |
Orifice diameter | 6 mm (typical for DN15 needle valve) |
Maximum working pressure | 4.0 MPa (PN40) at ambient temperature |
Temperature derating | Reduce pressure by 1% per °C above 200°C (for PTFE packing) |
Leakage rate | Zero detectable leakage (metal seat) per API 598 |
Test | Standard / Requirement |
Hydrostatic shell test | 1.5 × PN40 (6.0 MPa) – no leakage |
Seat test (high pressure) | 1.1 × PN40 (4.4 MPa) – zero leakage |
Low pressure seat test | 0.6 MPa – zero leakage (bubble‑tight) |
Material traceability | EN 10204 3.1 (optional) |
Marking | Body marked: DN15, PN40, SS, flow direction arrow (if applicable) |
Parameter | Value |
Thread type | NPT male (ASME B1.20.1) |
Size | 1/2″ NPT both ends |
Material | SS316 seamless tube |
Length | 50 mm standard (custom available) |
Hex flat | 22 mm (AF) |
Wall thickness | Sch 40 or Sch 80 (as specified) |
Nipples are pre‑wrapped with PTFE tape or supplied without tape per customer request.
Please specify:
Notes:
