Product Technical Data Sheet

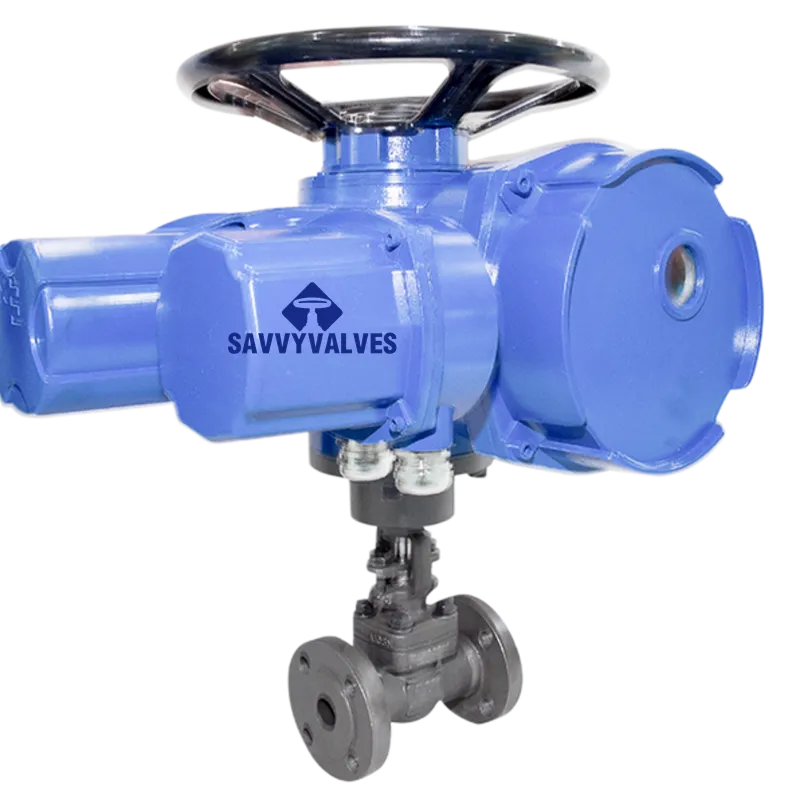

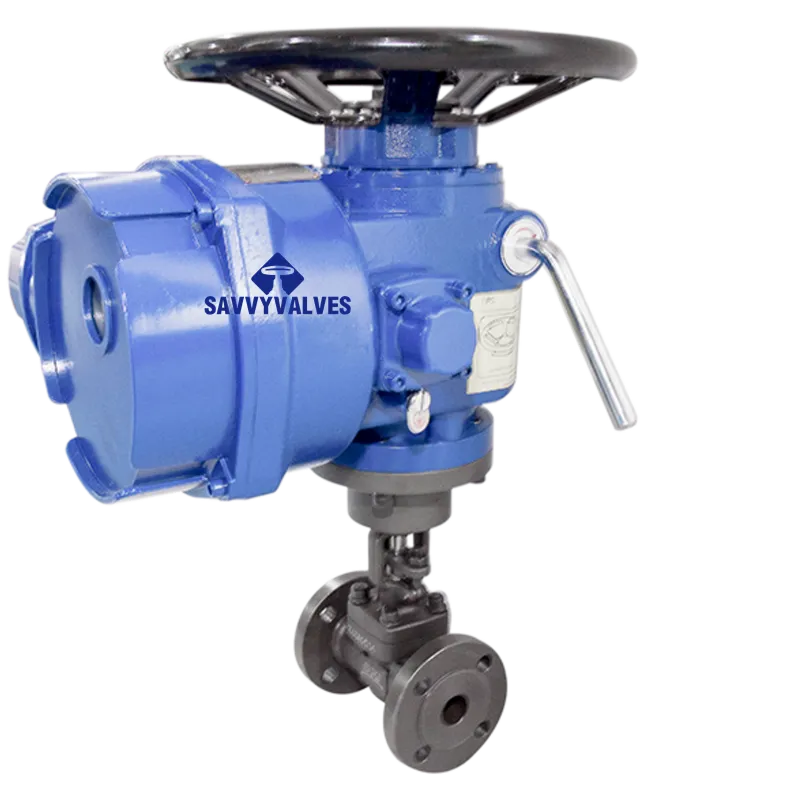

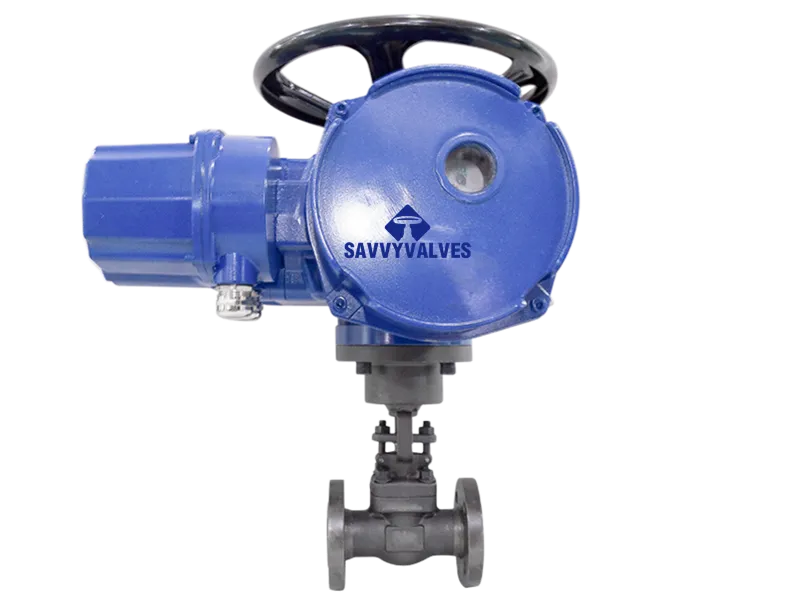

Product Name: Motorized Globe Valve
Model / Size: DN25 – PN25 – RF / Straight Pattern
This product is a motorized globe valve with flanged ends, designed for precise flow regulation and reliable shut‑off. The electric actuator enables remote on‑off or modulating control. Suitable for water, steam, oil, gas, and other industrial media in HVAC, power generation, petrochemical, and general process applications.
Parameter | Value |
Nominal Size | DN25 (1 inch) |
Pressure Rating | PN25 (2.5 MPa / 25 bar / Class 150 equivalent) |
End Connection | Flanged, Raised Face (RF) |
Body Pattern | Straight Through / Y‑pattern (optional) |
Applicable Media | Water, steam, oil, gas, non‑corrosive and mildly corrosive media |
Temperature Range | -10°C ~ 200°C (depending on seat and packing material) |
Item | Standard |
Design & Manufacture | GB/T 12235 / BS 1873 / ASME B16.34 (reference) |
Flange Dimensions | GB/T 9113 / EN 1092‑1 / ASME B16.5 (PN25 compatible) |
Face‑to‑Face Dimension | GB/T 12221 (typically 160 mm for DN25) |
Pressure‑Temperature Rating | ASME B16.34 / EN 12516 |
Inspection & Testing | GB/T 13927 / ISO 5208 / API 598 |
No. | Part | Material (Typical Configuration) |
1 | Body | WCB (Carbon Steel) / CF8 (304 SS) / CF8M (316 SS) |
2 | Bonnet | WCB / CF8 / CF8M (matching body) |
3 | Disc / Plug | Stainless Steel (13Cr / 304 / 316) + Stellite hardfacing (optional) |
4 | Stem | Stainless Steel (13Cr / 304 / 316) |
5 | Seat Ring | Integral with body or replaceable stainless steel |
6 | Packing | PTFE / Flexible Graphite |
7 | Gland Flange | Carbon Steel / Stainless Steel |
8 | Bolting | Carbon Steel / Stainless Steel (A193 B7 / B8) |
9 | Handwheel (Manual Override) | Cast Iron / Carbon Steel (if equipped) |
Note: Material selection can be customized based on media and temperature requirements. |
Dimension | Value |
Face‑to‑Face (L) | 160 mm (GB/T 12221 series) |
Flange OD (D) | 115 mm (DN25 PN25 per EN 1092‑1 / GB/T 9113) |
Flange Bolt Circle (K) | 85 mm |
Flange Bolt Holes | 4 × ø14 mm |
Height (H) (with actuator) | Approx. 350 – 450 mm (depending on actuator model) |
Weight (Valve Body Only) | Approx. 6 – 8 kg |
Weight (Complete with Actuator) | Approx. 10 – 15 kg (depending on actuator) |

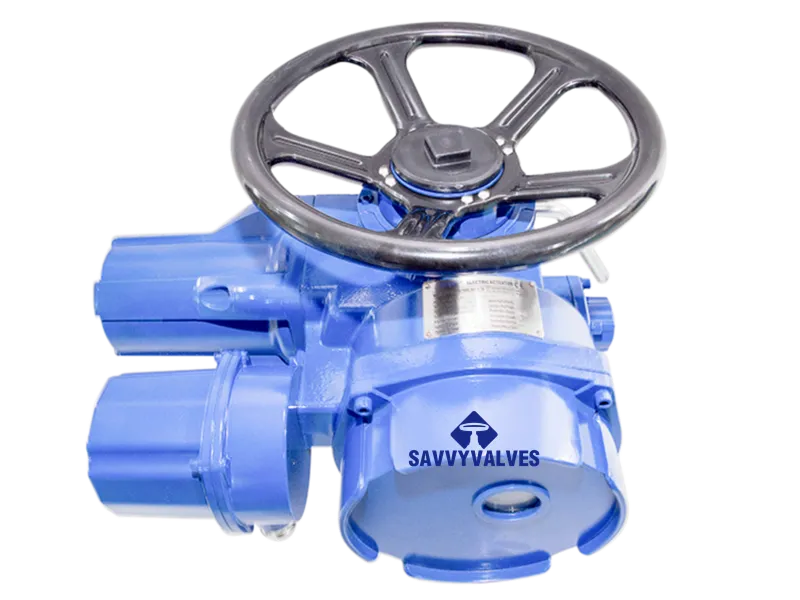

Parameter | Value |
Actuator Type | Electric (on‑off or modulating) |
Power Supply | 220V AC / 110V AC / 24V DC (optional) |
Control Signal | On‑off: Open / Close (with limit switches) |
Output Torque / Thrust | Sufficient for DN25 globe valve (typically 50 – 100 Nm) |
Protection Class | IP65 / IP67 (weatherproof) |
Duty Cycle | 80% (modulating) or S2 (on‑off) |
Manual Override | Handwheel (standard) |
Auxiliary Features | Position indicator, limit switches, heater (optional) |
Parameter | Value |
Operation | Electric Motorized |
Pressure Rating | PN25 (2.5 MPa / 25 bar) |
Shell Test Pressure | 3.75 MPa (37.5 bar) |
Seat Test Pressure | 2.75 MPa (27.5 bar) |
Leakage Rate | Zero leakage (soft seat) / Class IV or V (metal seat per FCI 70‑2) |
Flow Characteristics | Linear / Equal Percentage (depending on plug design) |
Please confirm the following when placing an order:
GUATANTEE:
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
