Double Offset Butterfly Valve Rubber Seated

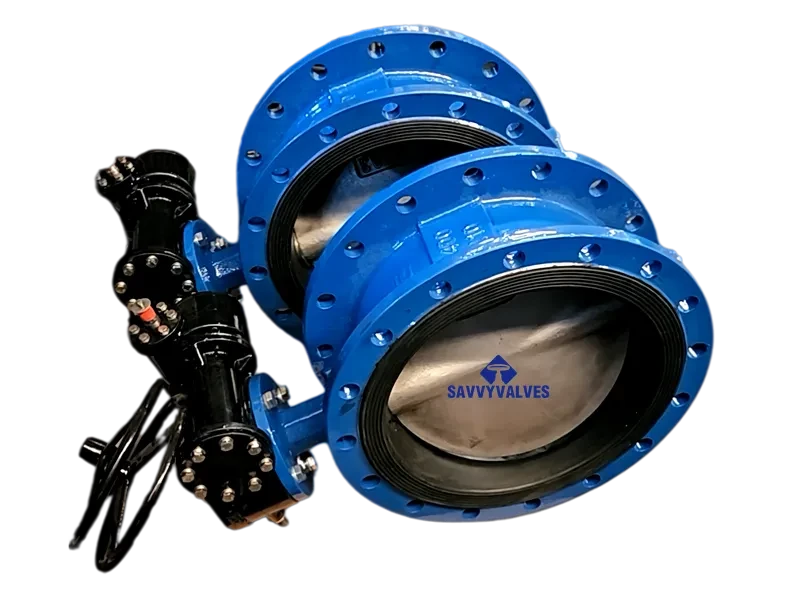

PHOTOS SHOWS SPECIFICATIONS AS BELOW
SIZE: DN1200
RATING: PN16
BODY: ASTM A536 DUCTILE IRON/ GGG50 +304SS BODY SEAT
DISC: ASTM A536 DUCTILE IRON/ GGG50
STEM: SS416
SEAT: EPDM
ACTUATION: GEAR UNIT

Description

GENERAL DESIGNED SPECIFICATIONS

Size: 4″~144″.
Pressure Rating: 150LB,PN6,PN10,PN16,PN20,JIS 5K, JIS 10K, JIS 16K, JIS 20K.
General applications: Water. Oil. Gas.
Design & Manufacture: API 609, BS5155, EN593 are basic, ASME B16.34 ,other norms could be used according to orders.
F TO F dimensions: API 609, ASME B16.10,BS EN 558， BS 5155
Connection: ASME B16.5, EN 1092, BS 4504, ASME B16.47 ,JIS 5K-20K.
Safety design: anti-blow out stem.

TYPICAL MATERIAL LIST

BODY: ASTM A 126, ASTM A 395, ASTM A536 65-45-12, ASTM A351 CF8 CF8M CF3 CF3M , 4A ,5A, C95400, C95800, B62, B148 ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

DISC: ASTM A 126, ASTM A 395, ASTM A536 65-45-12, ASTM A351 CF8 CF8M CF3 CF3M , 4A ,5A, C95400, C95800, B62, B148 ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276

SEAT: STAINLESS STEEL HARD FACED OR INTEGRAL BODY SEAT

SEAL: EPDM, NBR, VITON

OPERATOR: GEAR UNIT

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
