TECHNICAL DATA SHEET

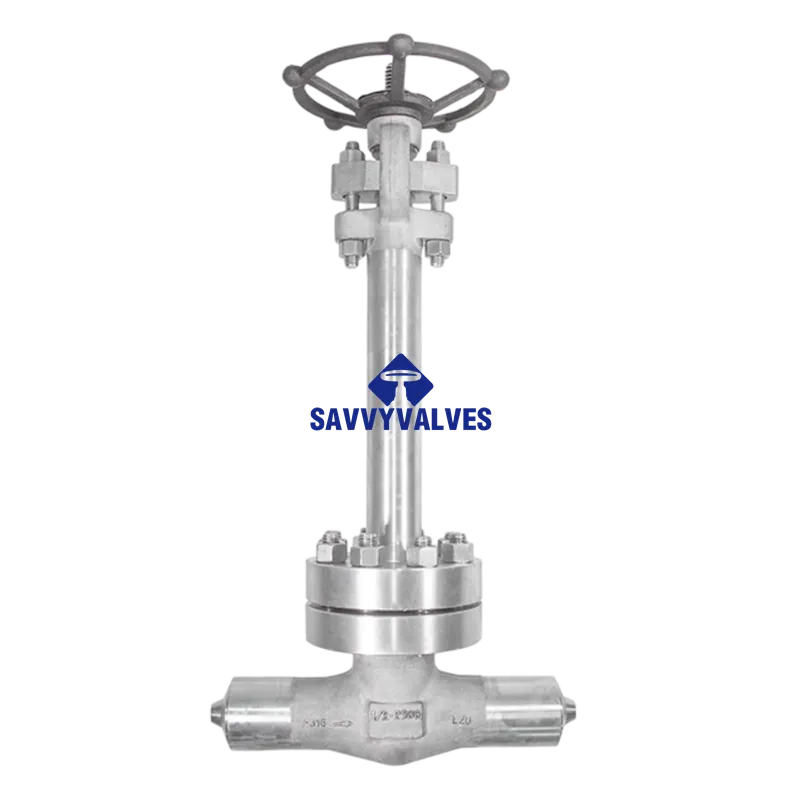

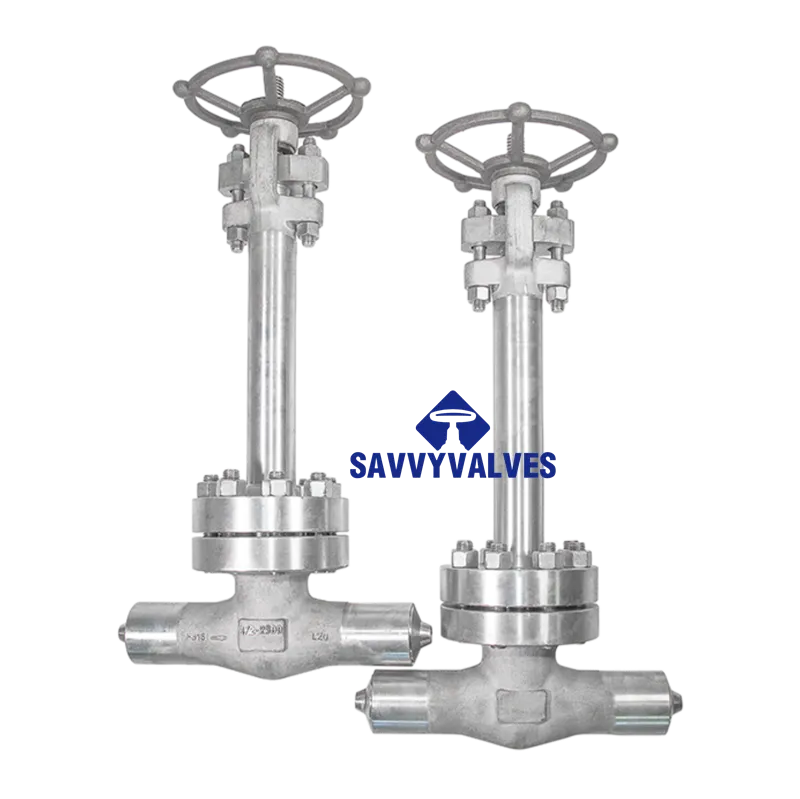

Product Name: 1/2-inch 2500LB Stainless Steel Cryogenic Globe Valve
Model/Specification: 1/2″-2500LB-CRYO-GLOBE
Valve Type: Globe Valve (Cryogenic Service)
Connection Type: Butt Weld (BW) / Socket Weld (SW) / Threaded (NPT) User specified

1. Basic Design Parameters

2. Technical Specifications

3. Material of Construction (Recommended – Stainless Steel for Cryogenic)

4. Main Dimensions & End Connection Details

*Note: Dimensions are for 1/2″ Forged Steel Cryogenic Globe Valve. BW/SW/NPT dimensions may vary by manufacturer. Consult manufacturer for exact dimensions.*

4.1 End-to-End Dimensions (Approximate)

4.2 Extended Bonnet (Cryogenic Feature)

• Extension Length: Designed to keep packing box above frost line (typically 150mm – 200mm for 1/2″ valve, depending on service temperature [-196°C]).
• Drip Plate: Included to prevent ice formation on the body/bonnet joint.

4.3 End Preparation Details (Per ASME Standards)

5. Pressure-Temperature Rating (ASME B16.34)

*Material Group: Stainless Steel (A182 F304/F316)*

*Note: For cryogenic service (below -46°C), valves are typically tested and certified per BS 6364 at -196°C.*

6. Flow Characteristics (1/2″ – Full Bore)

7. Test Pressure (API 598 / BS 6364)

8. Features & Applications

• Key Features:
• Cryogenic Service Capability: Designed for temperatures as low as -196°C (-320°F) , suitable for LNG, LOX, LIN, and other liquefied gases .
• Extended Bonnet: Protects the stem seals and packing from extreme cold, ensuring operability and preventing ice formation .
• Forged Body Construction: Provides superior strength and reliability at high pressures (2500LB) and low temperatures .
• Excellent Throttling Capability: Globe valve design provides precise flow control and regulation.
• OS&Y Design: Provides visual indication of valve position and prevents stem thread exposure to media .
• Backseat Design: Protects packing from system pressure when valve is fully open.
• BS 6364 Certification: Designed and tested to international cryogenic valve standard .
• Low Fugitive Emissions: Optional ISO 15848-1 certification for environmental compliance .
• Main Applications:
• LNG (Liquefied Natural Gas): Liquefaction, storage, transportation, and regasification plants .
• Air Separation Units (ASU): Handling LOX (Liquid Oxygen), LIN (Liquid Nitrogen), LAr (Liquid Argon) .
• Petrochemical: Handling ethylene, methane, and other cryogenic hydrocarbons.
• Industrial Gas: Cryogenic storage tanks and transfer lines .
• Refinery: High-pressure cryogenic applications .

Disclaimer: The above data is prepared based on common standards for cryogenic globe valves. Specific dimensions, materials, and pressure ratings may vary by manufacturer. The final technical agreement shall prevail.
