TECHNICAL DATA SHEET

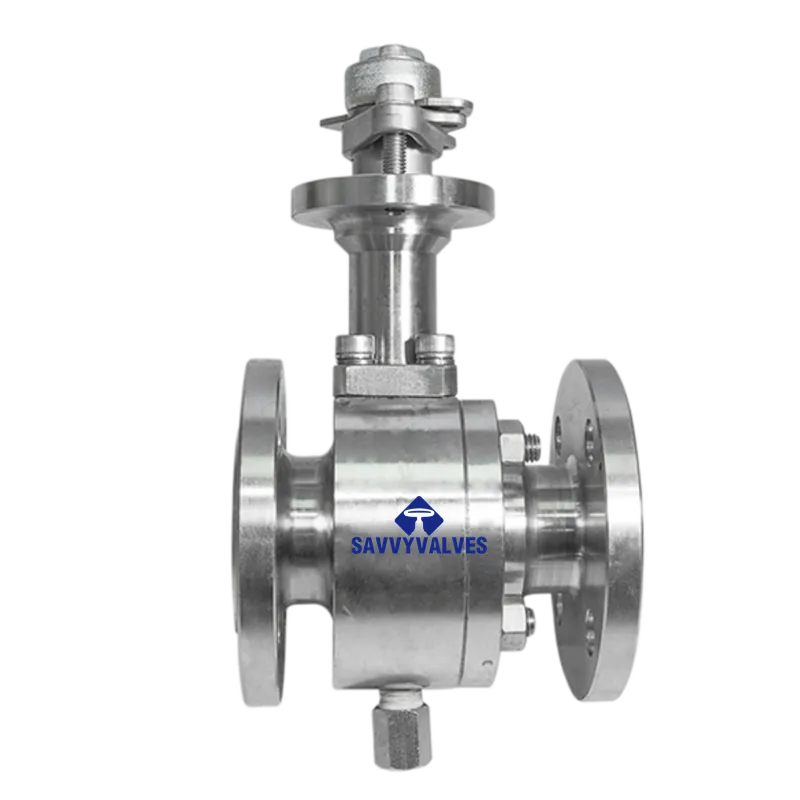

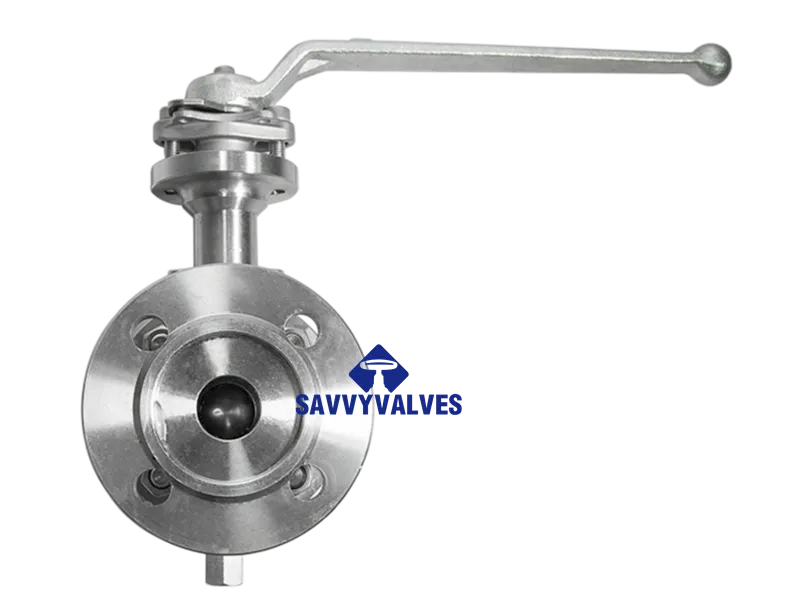

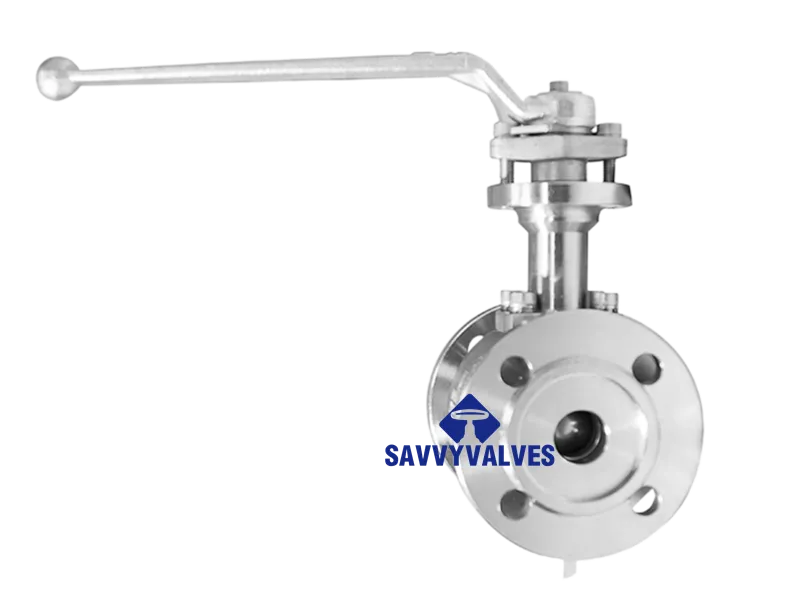

Product: 2-Piece Cryogenic Ball Valve
Size: DN25 (1 inch)
Pressure Rating: PN16 (Class 150)
Body Material: F304 Stainless Steel (ASTM A182 F304)
Body Construction: 2-Piece, Floating Ball
Seat Type: Soft Seated (PCTFE / PEEK)
Parameter | Value |
Nominal Size | DN25 (1″) |
Pressure Rating | PN16 (Class 150) |
Valve Type | 2-Piece Floating Ball Valve |
Body Construction | 2-Piece (Body + End Cap) |
End Connections | Flanged (EN 1092‑1 PN16) / Threaded (ISO 7‑1 / NPT) / Socket Weld |
Temperature Range | –196°C ~ +80°C (for cryogenic service) |
Suitable Media | LNG (Liquefied Natural Gas), LPG, liquid nitrogen, liquid oxygen, liquid argon, ethylene, and other cryogenic fluids |
Fire Safe Design | API 607 / ISO 10497 (optional) |
Item | Part | Standard Material |
1 | Body | F304 (ASTM A182 F304) |
2 | End Cap | F304 |
3 | Ball | F304 + Chromium Plating / Chromium Carbide Coating (optional) |
4 | Seat Rings | PCTFE (Polychlorotrifluoroethylene) or PEEK(Polyetheretherketone) |
5 | Stem | F304 / 17-4PH |
6 | Stem Packing | PCTFE / PTFE (low‑temperature grade) or Flexible Graphite |
7 | Body Gasket | Spiral Wound, F304 + PCTFE / PTFE / Graphite |
8 | Bolting | A193 B8 / A194 B8 (304 stainless steel) |
9 | Extended Bonnet | F304 (provides thermal isolation) |
10 | Handle / Operator | Stainless Steel or Carbon Steel with insulation (optional) |
*Note: PCTFE is preferred for cryogenic applications down to –196°C due to its excellent low-temperature sealing properties; PEEK is suitable for higher-pressure cryogenic applications with good wear resistance.*
Seat Material | Temperature Range | Characteristics | Typical Application |
PCTFE | –196°C ~ +80°C | Excellent low-temperature sealing, low permeability, good dimensional stability | LNG, liquid oxygen, liquid nitrogen |
PEEK | –196°C ~ +250°C | Higher mechanical strength, wear resistance, suitable for higher pressures | High-pressure cryogenic, cycling service |
PTFE (Not Recommended) | –196°C ~ +80°C | Prone to cold flow and deformation at cryogenic temperatures; not preferred for critical cryogenic service | General purpose only |
Parameter | Value |
Face‑to‑Face Length (L) | ~120 mm (flanged per EN 558) / ~80 mm (threaded) |
Extended Bonnet Height | ~100 – 150 mm (to ensure proper thermal gradient) |
End Connections | Flanged – EN 1092‑1 PN16 (RF / FF) / Threaded (ISO 7‑1 / NPT) |
Flange Facing (if flanged) | Raised Face (RF) or Flat Face (FF) |
Top Height (H) | ~160 – 200 mm (with handle) |
Operating Torque | ~10 – 25 N·m (soft seated, floating ball) |
Approx. Weight | ~3 – 5 kg (flanged version) / ~1.5 – 2.5 kg (threaded version) |
Note: Final dimensions to be confirmed by manufacturing drawings.
Item | Standard |
Design & Manufacture | ASME B16.34 / EN 12516 / API 608 |
Flanged End Connections | EN 1092‑1 / ASME B16.5 |
Threaded End Connections | ISO 7‑1 (BSP) / ASME B1.20.1 (NPT) |
Pressure‑Temperature Rating | ASME B16.34 / EN 1092‑1 |
Fire Safe Test | API 607 / ISO 10497 (optional) |
Cryogenic Testing | BS 6364 (or customer specification) |
Pressure Testing | API 598 or ISO 5208 |
Low‑Pressure Air Test | 0.6 MPa (6 bar) – bubble‑tight (zero leakage) |
High‑Pressure Hydrostatic Test | 1.5 × rated pressure (body), 1.1 × rated pressure (seat) |
Consideration | Requirement |
Material Toughness | Materials must pass Charpy impact tests at service temperature (e.g., –196°C for F304) |
Extended Bonnet | Minimum height ensures packing temperature remains above freezing point of moisture in the air |
Seat Material | PCTFE or PEEK required for reliable low-temperature sealing; PTFE is not recommended due to cold flow |
Leakage Rate | Cryogenic valves typically require bubble‑tight shut‑off (helium leak testing often specified) |
Thermal Cycling | Valve design must accommodate thermal contraction and expansion without loss of sealing |
Packing | Low‑temperature packing (e.g., PCTFE or PTFE) must be used to maintain seal flexibility |
Anti-Static | Essential to prevent static discharge in flammable cryogenic services |
When ordering, please specify:
This data sheet reflects the DN25 – PN16 2-Piece Cryogenic Ball Valve with F304 material and PCTFE / PEEK seats. For specific dimensions, torque curves, or actuator sizing support, please contact us with your detailed requirements.
