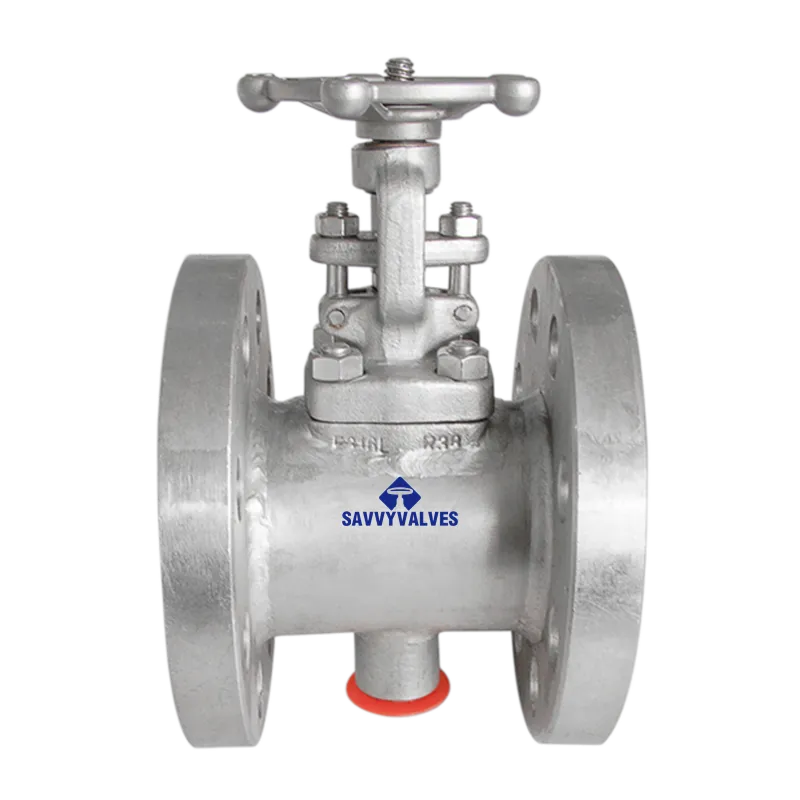

1″-600LB Jacked Gate Valve

TECHNICAL DATA SHEET

Product Name: 1-inch 600LB Jacketed Gate Valve
Model/Specification: 1″-600LB-JACKETED-GATE
Valve Type: Gate Valve (Jacketed / Steam Traced)
Connection Type: Flanged (RF) / Butt Weld (BW) / Socket Weld (SW) User specified

1. Basic Design Parameters

2. Technical Specifications

3. Material of Construction (Recommended – Carbon Steel with Jacket)

4. Main Dimensions & Connection Details

*Note: Dimensions are for 1″ Class 600 Jacketed Gate Valve. Jacket adds approximately 20-30mm to body width.*

4.1 End-to-End Dimensions (Face-to-Face)

4.2 Flange Details (Per ASME B16.5 – Class 600)

4.3 Jacket Connection Details

5. Pressure-Temperature Rating (ASME B16.34 / Class 600)

Material Group: Carbon Steel (ASTM A105)

*Note: Process pressure rating is independent of jacket pressure. Jacket pressure is typically lower (6-10 bar).*

6. Test Pressure (API 598)

7. Features & Applications

• Key Features:
• Integral Heating Jacket: Full body jacket allows circulation of steam or thermal fluid to maintain process temperature and prevent solidification of high-viscosity media .
• Forged Body Construction: Provides superior strength and reliability at high pressures (600LB) .
• OS&Y Design: Rising stem provides visual indication of valve position .
• Flexible Wedge Design: Accommodates thermal expansion and provides tight shut-off .
• Jacket Connections: Standard 1/2″ or 3/4″ NPT connections for easy integration with heating systems .
• High Temperature Capability: Suitable for process temperatures up to 425°C with appropriate materials .
• Bolted Bonnet: Allows for easy maintenance and inspection .
• Backseat Design: Protects packing when valve is fully open .
• Versatile Applications: Handles media that solidify or become highly viscous at ambient temperatures .
• Customizable Jacket: Partial or full jacket options available based on application requirements .
• Main Applications:
• Molten Sulfur Handling: Sulfur recovery units, sulfur pits, and loading stations (sulfur solidifies at ~115°C) .
• Bitumen / Asphalt Processing: Storage, transfer, and loading where product solidifies at ambient temperature .
• Polymer & Resin Manufacturing: Handling viscous polymers that require elevated temperatures for flow .
• Wax & Paraffin Service: Preventing wax crystallization and solidification .
• Heavy Crude Oil: Transporting high-viscosity crude that requires heating .
• Chemical Processing: Handling high melting point chemicals .
• Food Industry: Chocolate, molasses, and other viscous food products .
• Tank Heating Systems: Jacketed valves in tank bottoms and suction lines .

8. Jacket Design Options

*Disclaimer: The above data is prepared based on common industry standards (API 602, ASME B16.34, MSS SP-145) for jacketed gate valves. Specific dimensions, materials, and pressure ratings may vary by manufacturer. Jacketed valves are specially designed for maintaining elevated process temperatures. The final technical agreement and certified drawings shall prevail.*
