TECHNICAL DATASHEET

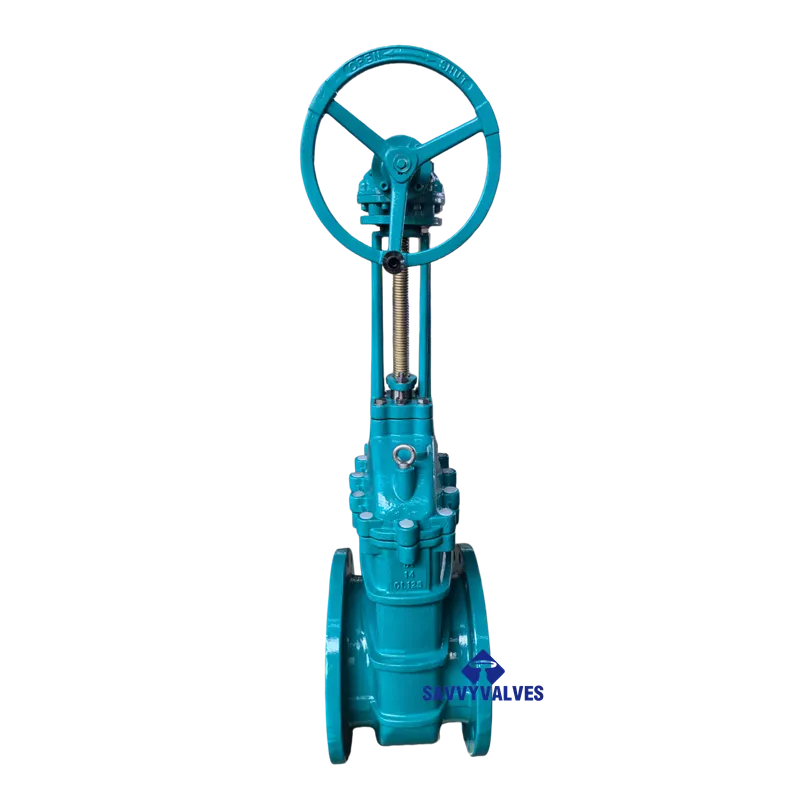

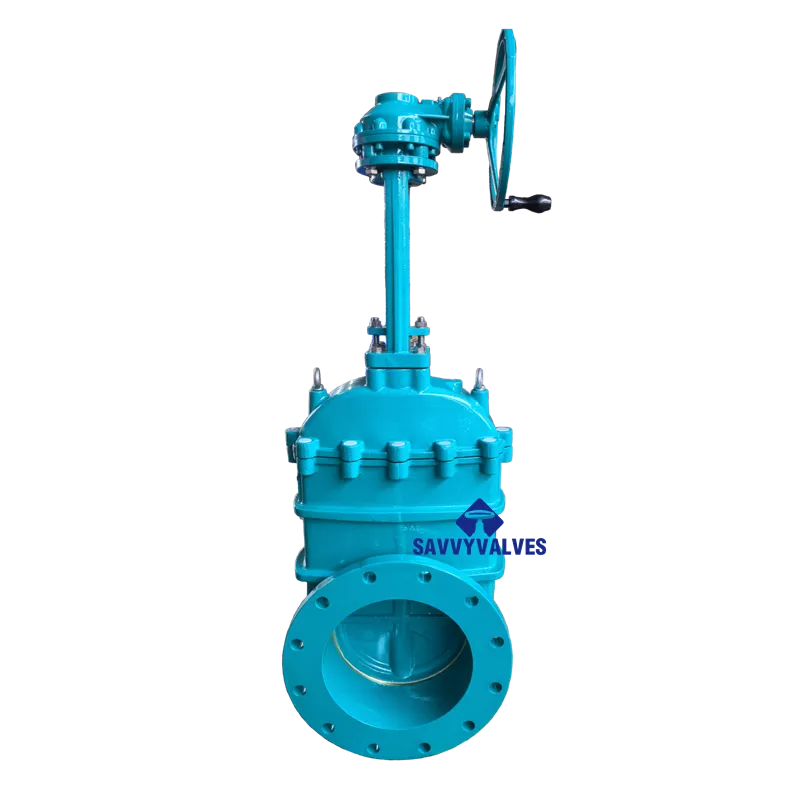

14″ 125LB Ductile Iron Rising Stem Gate Valve
- General Specifications
|
Item
|
Specification
|
|
Valve Type
|
Rising Stem Gate Valve (OS&Y)
|
|
Nominal Size
|
14 inches (14″) / DN350
|
|
Pressure Class
|
125 LB (Class 125)
|
|
End Connection
|
Flanged Ends
|
|
Flange Standard
|
ASME B16.1 Class 125 (Cast Iron Flange, RF/FF)
|
|
Face-to-Face Dimension
|
MSS SP-70 / ASME B16.10
|
|
Design & Manufacture Standard
|
MSS SP-70
|
|
Test & Inspection Standard
|
API 598
|
- Design Parameters
|
Item
|
Unit/Standard
|
Parameter
|
|
Max. Allowable Pressure
|
psi
|
200 psi @ Saturated Steam / 175 psi @ WOG (Non-Shock)
|
|
Service Media
|
–
|
Water, Oil, Gas (WOG) or Steam (depending on conditions)
|
|
Operating Temperature
|
°C / °F
|
-29°C to 220°C (-20°F to 430°F)
|
|
Operation
|
–
|
Handwheel / Gearbox (Recommended for this size)
|
- Material of Construction (M.O.C.)
|
Part Name
|
Material Required
|
Standard / Grade (Ref.)
|
|
1. Body
|
Ductile Iron (DI)
|
ASTM A536 (60-40-18) or ASTM A395
|
|
2. Bonnet
|
Ductile Iron (DI)
|
ASTM A536
|
|
3. Wedge (Gate)
|
Ductile Iron (DI) with Bronze seat face
|
ASTM A536, Bronze overlay/inlay on seat faces
|
|
4. Seat Ring (Seat Face)
|
Bronze
|
ASTM B62 (C83600) or ASTM B61
|
|
5. Stem
|
Stainless Steel
|
ASTM A276 Type 410 / 304 / 316
|
|
6. Stem Nut
|
Bronze / Aluminum Bronze
|
High-strength wear-resistant alloy
|
|
7. Packing
|
Flexible Graphite / PTFE
|
–
|
|
8. Gasket
|
Non-asbestos fiber / Graphite
|
–
|
|
9. Bolts/Nuts
|
Carbon Steel
|
ASTM A307 Grade B / A194 2H (Zinc plated)
|
|
10. Handwheel
|
Ductile Iron / Malleable Iron
|
–
|
- Main Dimensions (Reference)
Note: Dimensions for reference only. Final dimensions to be verified per manufacturer’s drawing. (Unit: mm / inch)
|
Description
|
Dimension (mm)
|
Dimension (inch)
|
Remarks
|
|
Face-to-Face (L)
|
584
|
23.0
|
Per MSS SP-70 / ASME B16.10
|
|
Flange Diameter (D)
|
470
|
18.5
|
ASME B16.1 Class 125
|
|
Bolt Circle Diameter (C)
|
419.1
|
16.5
|
ASME B16.1 Class 125
|
|
Bolt Holes (n-ød)
|
12-ø25.4
|
12-1.0″
|
12 holes
|
|
Flange Thickness (T)
|
32
|
1.26
|
ASME B16.1 Class 125
|
|
Handwheel Diameter (W)
|
Approx. 500
|
Approx. 19.7
|
Varies by manufacturer; gearbox recommended
|
|
Top-to-Open Height (H)
|
Approx. 1100
|
Approx. 43.3
|
From stem top to handwheel (Reference)
|
|
Approx. Weight
|
450 kg
|
990 lbs
|
Estimated, varies by manufacturer
|
- Inspection & Testing (API 598)
|
Test Description
|
Medium
|
Pressure (psi)
|
Requirement
|
|
Shell (Hydrostatic)
|
Water
|
300
|
No visible leakage
|
|
Seat (High Pressure)
|
Water
|
220
|
Leakage Rate: Class D (or as specified)
|
|
Backseat Test
|
Water/Air
|
As required
|
No visible leakage
|
|
Low Pressure Pneumatic
|
Air
|
60 – 80
|
Optional, leakage rate ≤ specified rating
|
- Options & Accessories
|
Item
|
Options
|
|
Stem Upgrade
|
17-4PH / Monel / Inconel / AISI 316
|
|
Wedge Material
|
Full Stainless Steel / Nickel-Coated Ductile Iron
|
|
Operation
|
Gearbox (Recommended for 14″) / Electric Actuator / Pneumatic Actuator / Extension Stem
|
|
Flange Facing
|
Flat Face (FF) or Raised Face (RF) to match counter flange
|
|
Coating
|
Epoxy Coated (Blue RAL 5005 or Black), min. thickness 250μm per AWWA C550
|
|
By-Pass
|
By-Pass Assembly (for pressure equalization)
|
|
Position Indicator
|
Rising stem provides visual indication; optional limit switch for actuated versions
|
Notes / Remarks:
- Pressure Rating: Class 125 per ASME B16.1 standard. Maximum allowable working pressure is 175 psi for WOG (Water, Oil, Gas) and 200 psi for saturated steam at ambient temperature.
- Seat Design: Bronze seat faces are achieved by overlaying (welding) or inserting bronze rings on both body and wedge, ensuring corrosion resistance and long service life.
- Stem Design: Outside Screw and Yoke (OS&Y) design isolates the stem threads from the media, allowing in-line maintenance and providing visual indication of valve position.
- Gearbox Recommendation: Due to the large size (14″), a gearbox operator is strongly recommended for ease of operation and to reduce manual effort.
- Applicable Standards: This datasheet is based on MSS SP-70 and ASME standards. Please confirm specific standard revisions and project special requirements before procurement.
