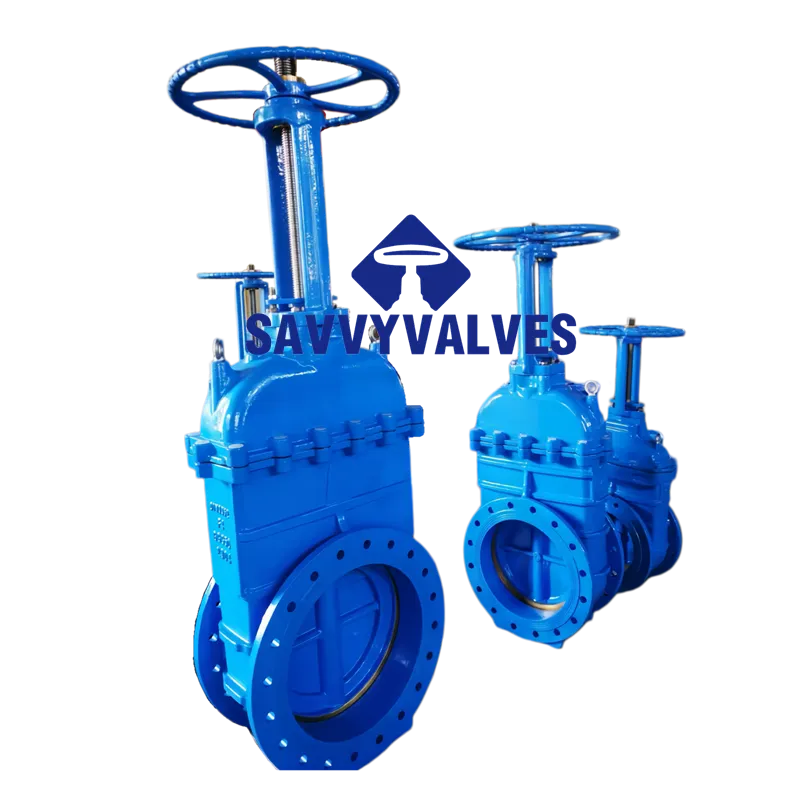

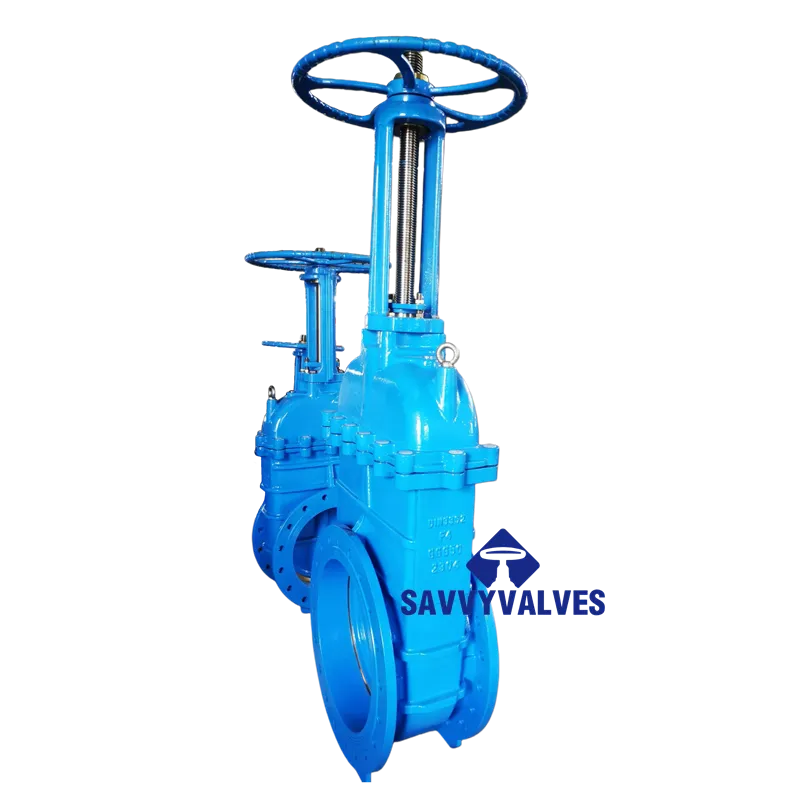

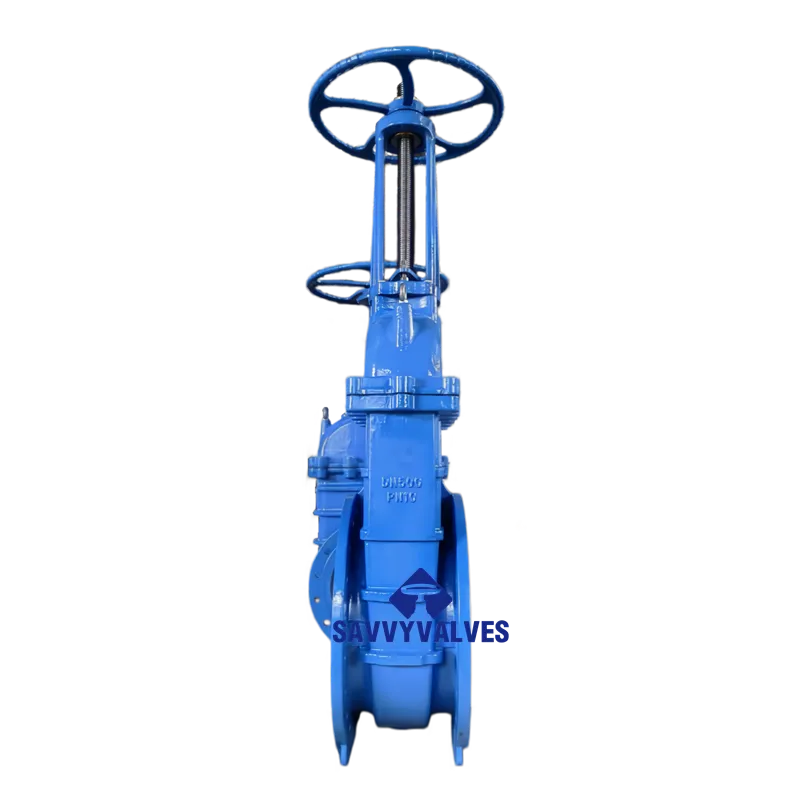

DN500-PN10 Cast Iron Metal Seated Rising Stem Gate Valve

Description

Technical Data Sheet

Outside Screw and Yoke (OS&Y) Gate Valve
(Bronze-Seated, Metal-to-Metal Design)

Product Name: OS&Y Solid Wedge Gate Valve (Bronze Seated)
Standard: DIN 3352
Size: DN500 (20 inches)
Pressure: PN10

1. General Design Features

• Type: Outside Screw and Yoke (OS&Y), Solid Wedge, Flanged Ends
• Design Standard: DIN 3352
• Face-to-Face Standard: DIN 3202 F4
• Seat Type: Metal-to-Metal (Bronze Seated)
• Stem Design: Rising stem (indicates open/close position)
• Operation: Handwheel Operated (Gearbox is mandatory for DN500 metal-seated valves due to high seating torque)
• Application: High-temperature fluids, Oils, Steam, Abrasive media, or where rubber is not suitable.

2. Applicable Standards

• Design & Manufacturing: DIN 3352 (Part 1 & applicable parts)
• Face-to-Face Dimension: DIN 3202 F4 (Short pattern)
• Flange Drilling: DIN 2501 / EN 1092-2 PN10
• Test & Inspection: EN 12266-1 (formerly DIN 3230)

3. Technical Parameters

*Note: Temperature range depends on the specific bronze alloy and gland packing material.

4. Main Component Materials

5. Dimensions & Connection Data (DN500 PN10 Reference)

*Note: Dimensions based on DIN standards. Request certified drawing for exact values. *

6. Critical Notes & Selection Tips

1. “Bronze Seated” Definition:

• This data sheet reflects a true Bronze-to-Bronze seal. The wedge has a Bronze ring/face that mates with the Bronze seat in the body.

• For a DN500 PN10 metal-seated valve, a gearbox (worm gear) is NOT optional – it is mandatory. The solid wedge and metal-to-metal contact create very high seating and unseating torque. Please confirm the gearbox ratio with the supplier.

• Metal-seated valves cannot achieve “zero leakage” (bubble tight) like resilient-seated valves. They typically conform to ISO 5208 Rate D (0.1x DN mm³/s) or Rate E. Please confirm the acceptable leakage rate for your application.

• DIN 3352 is a multi-part standard. Your valve most likely conforms to DIN 3352 Part 4 or Part 5 for cast iron gate valves, or a specific metal-seated variant.

Action Required:
Please confirm with the manufacturer:

1. Gearbox Ratio & Output Torque (Is it suitable for manual operation under max differential pressure?)
2. Sealing Leakage Rate (ISO 5208 Rate D or better?)
3. Flange drilling details (DIN 2501 PN10) to match your pipeline.
