TECHNICAL DATASHEET

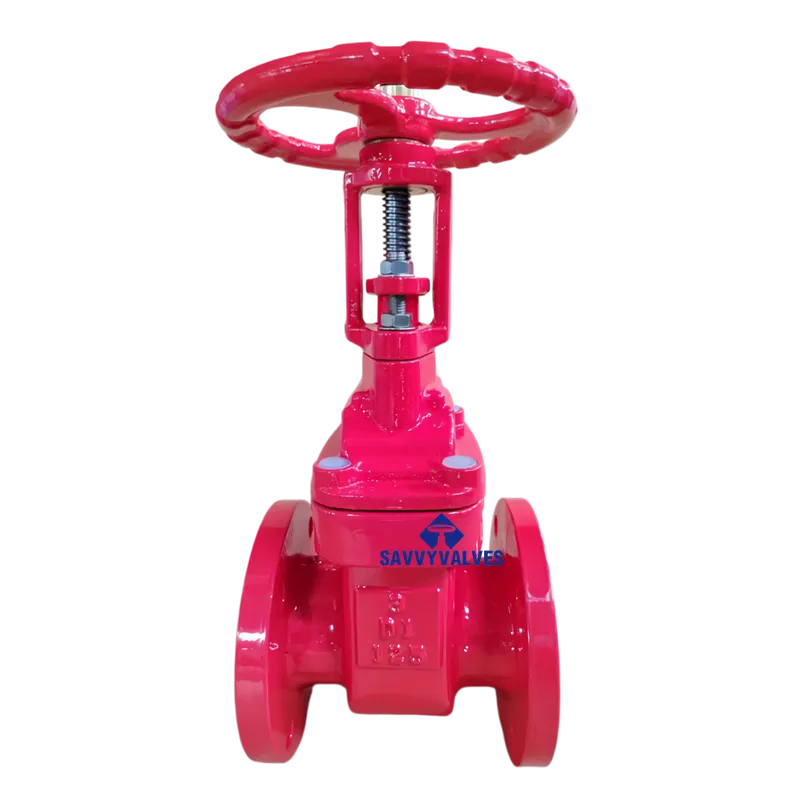

3″ 125LB GATE VALVE (OS&Y)
1. General Specifications
|
Item
|
Specification
|
|
Valve Type
|
Rising Stem Gate Valve (OS&Y – Outside Screw and Yoke)
|
|
Nominal Size
|
3 inches (3″) / DN80
|
|
Pressure Class
|
125 LB (Class 125)
|
|
End Connection
|
Flanged Ends
|
|
Flange Standard
|
ASME B16.1 (Class 125 Cast Iron Flange – Raised Face / Flat Face)
|
|
Face-to-Face Dimension
|
ASME B16.10 / MSS SP-70
|
|
Test Standard
|
API 598 / MSS SP-70
|
- Design Parameters
|
Item
|
Unit/Standard
|
Parameter
|
|
Design Pressure
|
psi
|
200 psi (Saturated Steam) / 175 psi (Non-Shock WOG) *
|
|
Service Media
|
–
|
Water, Oil, Gas (WOG) or Steam (depending on conditions)
|
|
Operating Temp.
|
°C / °F
|
-29°C to 220°C (-20°F to 430°F) **
|
|
Operation
|
–
|
Handwheel (Manual)
|
** Pressure rating per MSS SP-70 / ASME B16.1 for Class 125.*
*** Temperature range depends on trim materials (Seat/Seal).*
- Material of Construction (M.O.C.)
|
Part Name
|
Material Required
|
Standard / Grade (Ref.)
|
|
1. Body
|
DI (Ductile Iron)
|
ASTM A536 (60-40-18) or ASTM A395
|
|
2. Bonnet
|
Ductile Iron
|
ASTM A536
|
|
3. Wedge (Gate)
|
DI (Ductile Iron)
|
ASTM A536 (Fully Guided)
|
|
4. Seat Ring (Seat Face)
|
Bronze (Integral or Ring)
|
ASTM B62 (C83600) or ASTM B61
|
|
5. Stem
|
Stainless Steel
|
ASTM A276 Type 410 / 304 / 316
|
|
6. Stem Nut
|
Bronze / Aluminum Bronze
|
High-strength wear-resistant alloy
|
|
7. Packing
|
Flexible Graphite / PTFE
|
–
|
|
8. Gasket
|
Compressed Non-Asbestos / Graphite
|
–
|
|
9. Bolts/Nuts
|
Carbon / Alloy Steel
|
ASTM A193 B7 / A194 2H
|
|
10. Handwheel
|
Cast Iron / Ductile Iron
|
–
|
- Main Dimensions (Reference)
Note: Dimensions are for reference only. Final dimensions to be verified per manufacturer’s drawing. (Unit: mm / inch)
|
Description
|
Dimension
|
Remarks
|
|
Face-to-Face (L)
|
203 mm (8.0″)
|
Per ASME B16.10 / MSS SP-70
|
|
Flange Diameter (D)
|
191 mm (7.5″)
|
ASME B16.1 Class 125
|
|
Bolt Circle Diam. (C)
|
152.4 mm (6.0″)
|
ASME B16.1 Class 125
|
|
Bolt Holes (n-ød)
|
4-19 mm (4-0.75″)
|
Standard 4 holes
|
|
Flange Thickness (T)
|
23.9 mm (0.94″)
|
ASME B16.1 Class 125
|
|
Handwheel Diameter (W)
|
Approx. 250 mm (10″)
|
Varies by manufacturer
|
|
Top-to-Open Height (H)
|
Approx. 450 mm (17.7″)
|
From stem top to handwheel (Ref.)
|
- Inspection & Testing (Per API 598 / MSS SP-70)
|
Test Description
|
Medium
|
Pressure (psi)
|
Standard
|
|
Shell (Hydrostatic)
|
Water
|
300
|
API 598
|
|
Seat (High Pressure)
|
Water / Air
|
220
|
API 598
|
|
Backseat Test
|
Water / Air
|
As required
|
API 598
|
|
Low Pressure Pneumatic
|
Air
|
60 – 80
|
Optional / If required
|
- Options & Notes
- Stem Upgrade: 304/316 Stainless Steel, Monel.
- Seat Replacement: Renewable Bronze Seat Rings (optional).

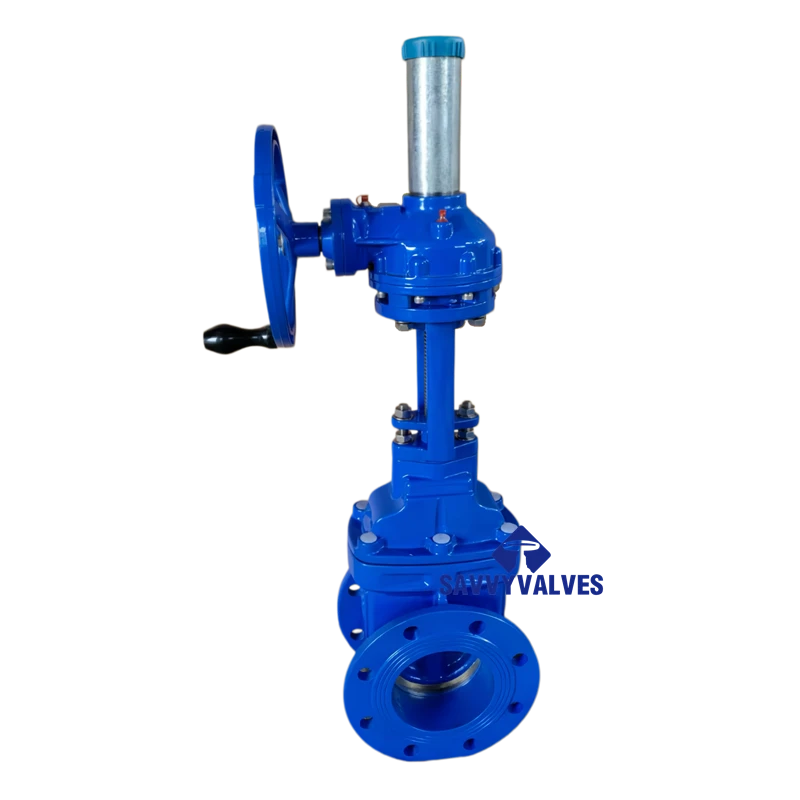

- Operation: Gear Operator (for higher torque applications).
- Coating: Epoxy Coated (Internal & External) per AWWA C550 (e.g., RAL 5005 Blue).
- Flange Face: Confirm if Flat Face (FF) is required for mating with cast iron flanges (recommended) or Raised Face (RF).
Remarks:
- Pressure Rating: This datasheet is based on Class 125 rating per MSS SP-70 and ASME B16.1 standards. Working pressure is typically 200 psi for saturated steam and 175 psi for cold water/oil/gas (non-shock) .
- Wedge Material: The wedge is specified as Ductile Iron with Bronze seating surfaces (integral or welded).
- Flange Standard: Flanges are designed per ASME B16.1 Class 125, which is the correct standard for cast iron and ductile iron flanges in this pressure class
