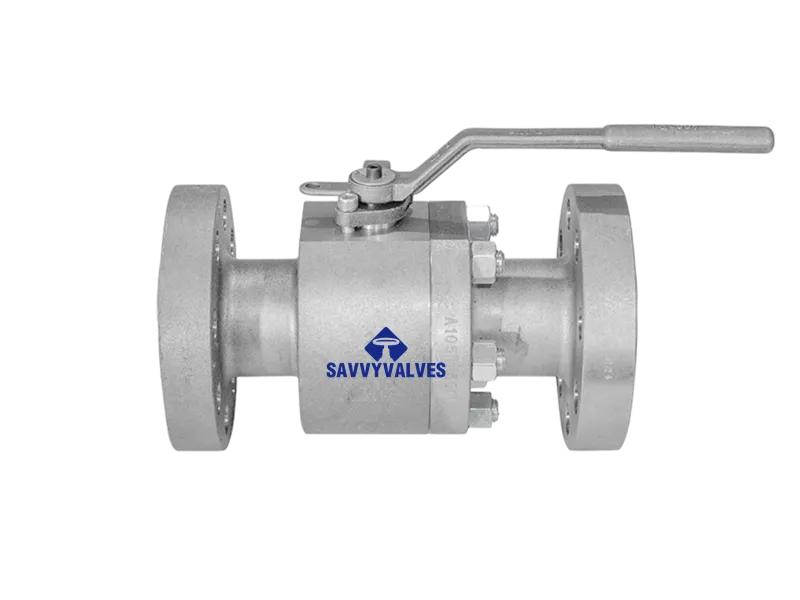

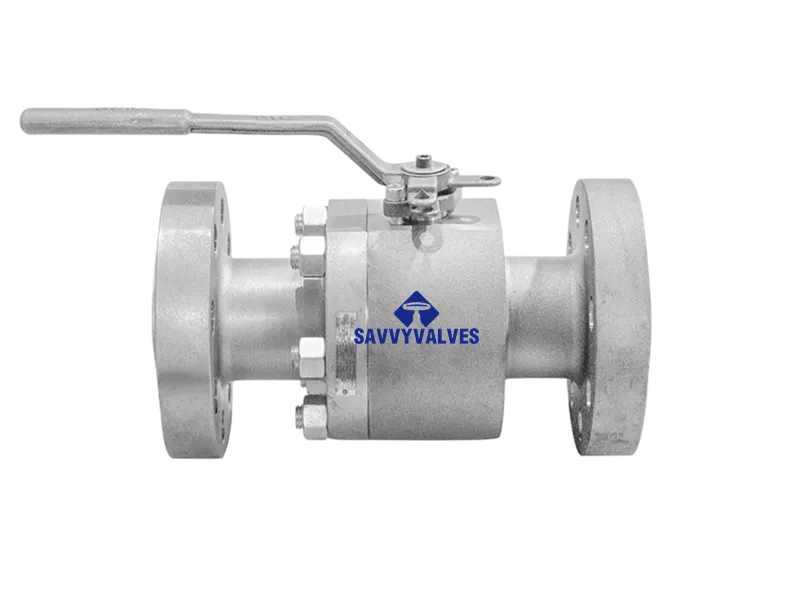

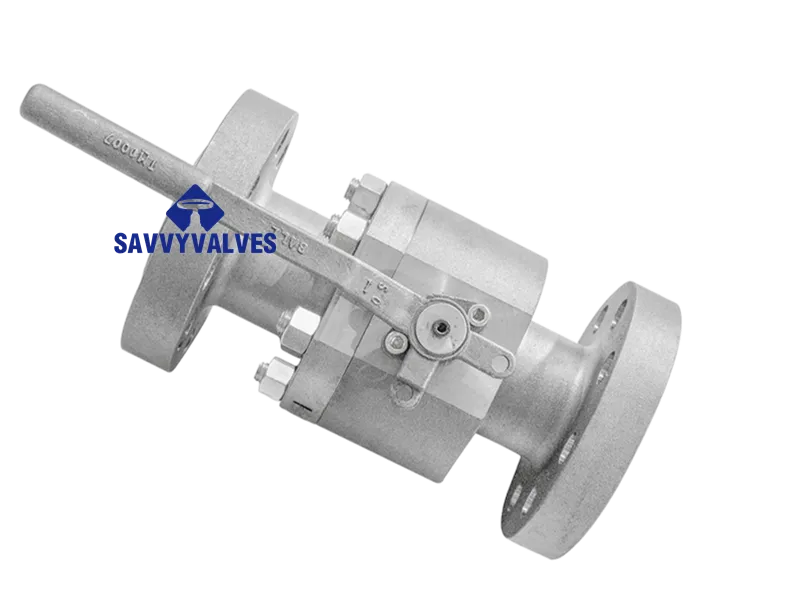

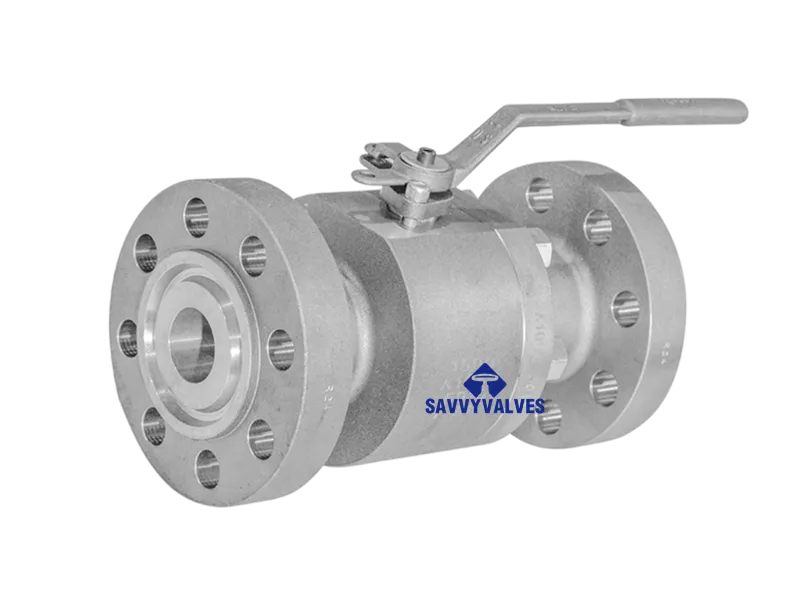

2″-1500LB 2-Piece Metal Seated Floating Ball Valve

TECHNICAL DATA SHEET

Product: 2-Piece Metal Seated Floating Ball Valve
Size: 2 inch (DN50)
Pressure Class: Class 1500
Body Material: A105N (Normalized Carbon Steel)
End Connections: Flanged (ASME B16.5)

1. Basic Specifications

2. Main Features

• Metal Seated: Ball coated with tungsten carbide or Stellite; seat hardfaced with Stellite alloy. Excellent wear, erosion, and high-temperature resistance.
• 2-Piece Body: Compact construction, easy maintenance. Body joint secured with high-strength bolting.
• Floating Ball: Under line pressure, the ball shifts slightly against the downstream seat, ensuring tight shut-off under high differential pressure.
• Blowout-Proof Stem: Stem is designed to prevent ejection under high-pressure conditions.
• A105N Body: Normalized carbon steel body provides improved toughness and grain structure, ideal for high-pressure and moderate high-temperature services.

3. Material List (Specified Configuration)

4. Dimensions & Structural Data (Flanged Ends)

Note: Final dimensions to be confirmed by manufacturing drawings.

5. Design & Testing Standards

6. Operating Torque & Actuator Sizing Considerations

• Seat Preload: Spring-loaded metal seats add initial breakaway torque.
• High-Temperature Effects: Thermal expansion increases torque at elevated temperatures.
• Safety Factor: Actuator output torque should be at least 1.2 to 1.5 times the maximum measured valve torque.

7. Typical Applications

• Refinery fluid catalytic cracking (FCC) units
• Power plant boiler feedwater and main steam systems
• High-temperature thermal oil circuits
• High-pressure natural gas transmission
• Coal chemical industry – ash water & black water service

This data sheet reflects the specified A105N body and flanged end connections. For further customization (e.g., NACE MR0175, special hardfacing, automation), please contact us.
