Nominal Size 3 Inch (DN80)
Pressure Rating Class 300 LB (PN50)
Body Material Carbon Steel WCB / Stainless Steel CF8M (as required)
Flange Connection RF (Raised Face) to ASME B16.5 Class 300
Actuator Type Piston Type Pneumatic Actuator (single-acting or double-acting)
Accessories Electro-Pneumatic (E/P) Positioner, 4-20mA input signal
Application Precise flow, pressure, or temperature control in oil, gas, chemical, power, and metallurgical industries

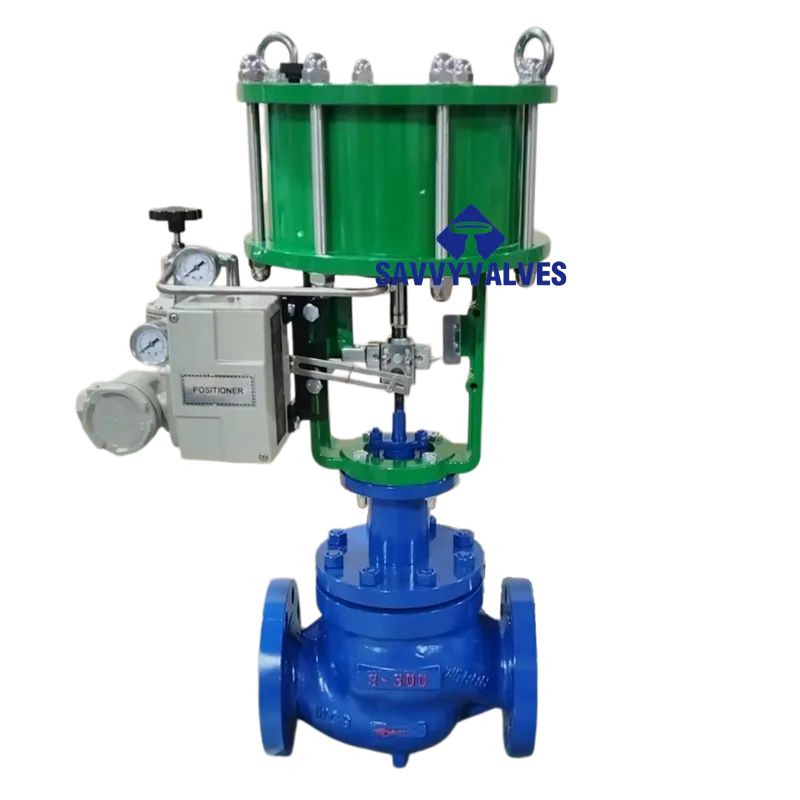

3″ – 300LB – RF Piston Type Pneumatic Actuated Control Valve with E/P Positioner
Technical Data Sheet
Item | Description |
Valve Type | Pneumatic Actuated Control Valve / Globe Control Valve |
Nominal Size | 3 Inch (DN80) |
Pressure Rating | Class 300 LB (PN50) |
Body Material | Carbon Steel WCB / Stainless Steel CF8M (as required) |
Flange Connection | RF (Raised Face) to ASME B16.5 Class 300 |
Actuator Type | Piston Type Pneumatic Actuator (single-acting or double-acting) |
Accessories | Electro-Pneumatic (E/P) Positioner, 4-20mA input signal |
Application | Precise flow, pressure, or temperature control in oil, gas, chemical, power, and metallurgical industries |
Standard | Description |
Valve Design Code | ANSI/ISA-75.08.01 / ASME B16.34 / IEC 60534 series |
Face-to-Face Dimension | ANSI/ISA-75.08.01 / ASME B16.10 |
Flange Dimensions | ASME B16.5 Class 300 RF |
Pressure-Temperature Rating | ASME B16.34 |
Leakage Class | FCI 70-2 / IEC 60534-4 (Class IV standard; Class V/VI optional) |
Inspection & Testing | IEC 60534-4 / ANSI/ISA-75.08.01 |
Actuator Standard | IEC 60534-6 / ISO 5210 (mounting interface) |
Positioner Standard | IEC 60534-6-1 (mounting and signal interface) |
Fire Safe Design | API 607 / ISO 10497 (optional) |
3.1 Valve Body Assembly
Component | Standard Material (Carbon Steel) | Optional Material (SS / Alloy) |
Body | ASTM A216 WCB Cast Steel | ASTM A351 CF8M (316 SS), Alloy Steel |
Bonnet | ASTM A216 WCB (matching body) | ASTM A351 CF8M |
Valve Plug (Trim) | ASTM A479 304/316 SS + Stellite hardfacing | 316L, Hastelloy, Monel |
Seat | ASTM A479 304/316 SS + Stellite hardfacing | 316L, Hastelloy, PEEK |
Stem | ASTM A276 304/316 SS | 17-4PH, Inconel |
Stem Packing | Flexible graphite + SS spacer rings | PTFE, low emission packing (ISO 15848) |
Gaskets | Flexible graphite + SS spiral wound | Metal ring gasket, PTFE |
Fasteners | ASTM A193 B7 Alloy Steel (zinc plated) | ASTM A193 B8 Stainless Steel |
3.2 Actuator Assembly
Component | Standard Material | Optional Materials |
Cylinder Body | Cast aluminum / Carbon steel | Stainless steel |
Piston | Carbon steel + chrome plating / Stainless steel | Bronze |
Piston Seal | NBR / PTFE + carbon graphite | FKM, Silicone |
Cylinder End Cap | Cast aluminum / Carbon steel | Stainless steel |
Spring (single-acting) | Alloy spring steel | Stainless steel |
Air Supply Port | G 1/4″ / NPT 1/4″ | Custom |
3.3 Positioner Assembly
Component | Standard Material / Specification | Optional Specifications |
Positioner Housing | Cast aluminum / Engineering plastic | Stainless steel (corrosion resistant) |
Input Signal | 4-20 mA DC (two-wire) | 0-10V, HART, Profibus PA |
Air Supply Port | G 1/4″ / NPT 1/4″ | — |
Enclosure Protection | IP66 (standard) | IP67, Explosion-proof Ex d / Ex ia |
Dimension Parameter | Value (Typical) |
Face-to-Face Length L | Approx. 295 mm (per ANSI/ISA-75.08.01) |
Flange Outer Diameter D | Approx. 210 mm (ASME B16.5 Class 300) |
Bolt Circle Diameter K | Approx. 168 mm |
Flange Thickness C | Approx. 28 mm |
Number / Diameter of Bolt Holes | 8 × 22 mm |
Center Height (flange face to center) | Approx. 150 mm |
Overall Height (incl. actuator & positioner) H | Approx. 800 – 1,100 mm (depending on actuator size and stroke) |
Valve Body Weight (excl. actuator) | Approx. 55 – 70 kg (depending on material) |
Actuator Weight (reference) | Approx. 40 – 100 kg (depending on bore and stroke) |
Dimensions and weights above are typical references. Final dimensions to be confirmed with manufacturer’s drawing.
Temperature (°C) | Max. Working Pressure (bar) | Max. Working Pressure (psig) |
-29 ~ 38 | 51.1 | 740 |
100 | 46.6 | 675 |
150 | 44.8 | 650 |
200 | 41.9 | 610 |
250 | 39.5 | 575 |
300 | 37.1 | 540 |
350 | 34.1 | 495 |
400 | 30.2 | 440 |
425 | 26.8 | 390 |
Data based on ASME B16.34 Material Group 1.1. For stainless steel bodies (Group 2.1), pressure-temperature ratings differ. Maximum allowable working pressure decreases with increasing temperature.
6.1 Valve Body
Parameter | Value |
Pressure Rating | Class 300 (51.1 bar @ 38°C) |
Shell Test Pressure | 1.5 × rated pressure (approx. 77 bar) |
Seat Test Pressure | 1.1 × rated pressure (approx. 56 bar) |
Low-Pressure Air Seat Test | 6 bar |
Leakage Class (standard) | Class IV (FCI 70-2 / IEC 60534-4) |
Leakage Class (optional) | Class V / Class VI (soft seat) |
Flow Characteristic | Equal Percentage (EQ%) / Linear (LIN) |
Flow Coefficient Cv (typical) | Approx. 100 – 150 (depending on trim and stroke) |
Rangeability | 50:1 (standard) |
Temperature Range (standard graphite packing) | -29°C ~ +425°C |
Temperature Range (low temp service) | -196°C ~ +260°C (with low temp materials) |
Suitable Media | Water, steam, oil, gas, chemical media, etc. |
6.2 Piston Actuator
Parameter | Value |
Action Type | Single-acting (spring return) / Double-acting (no spring) |
Air Supply Pressure | 4 – 8 bar (6 bar recommended) |
Stroke | 25 mm, 38 mm, 50 mm, etc. (sized based on valve size and differential pressure) |
Output Thrust (single-acting) | Depends on cylinder area and supply pressure; up to 5,000 – 50,000 N |
Output Thrust (double-acting) | Depends on cylinder area and supply pressure; up to 10,000 – 100,000 N |
Travel Speed | ≤ 1.5 sec / full stroke (adjustable) |
Explosion Proof | No electrical parts; not intrinsically explosion-proof; can be fitted with Ex accessories |
Enclosure Protection | IP65 / IP67 |
Ambient Temperature Range | -20°C ~ +80°C (standard seals) |
6.3 E/P Positioner
Parameter | Value |
Input Signal | 4-20 mA DC (two-wire, loop powered) |
Input Impedance | Approx. 250 Ω (4-20mA) |
Output Pneumatic Signal | 0.2 – 1.0 bar (standard) / 0 – 10 bar (optional) |
Supply Pressure | 1.4 – 7 bar (depending on actuator requirement) |
Air Consumption | Single-acting: approx. 5 L/min (at 0.14 MPa supply) |
Linearity | ≤ ±1.0% F.S. |
Repeatability | ≤ ±0.5% F.S. |
Sensitivity | ≤ 0.2% F.S. |
Stroke Range | 10 – 100 mm (linear valve) |
Ambient Temperature Range | -20°C ~ +70°C |
Enclosure Protection | IP66 (standard) |
Explosion Proof (optional) | Ex d IIC T4 / Ex ia IIC T4 |
Communication Protocol (optional) | HART, Profibus PA, Foundation Fieldbus |
Valve Position Feedback (optional) | 4-20 mA position feedback signal |
Action Type | Valve Position on Air Supply Loss | Valve Position on Signal Loss |
Air-to-Open (ATO / FC) | Spring return → Fail Closed | Positioner output goes to zero → Valve closes |
Air-to-Close (ATC / FO) | Spring return → Fail Open | Positioner output goes to zero → Valve opens |
Double-acting | No spring → Fail Lock (holds last position) | Depends on positioner configuration |
Note: Valve position on signal loss depends on the positioner configuration (single-acting positioners typically output zero signal, causing the valve to return to the spring-set position).
Accessory | Description |
Air Filter Regulator | Cleans and stabilizes air supply pressure |
Solenoid Valve | Provides emergency shut-off or remote on-off control |
Position Transmitter / Limit Switches | Provides 4-20mA position feedback or dry contact signals |
Lock-up Valve | Maintains valve position upon air supply failure |
Pneumatic Booster | Increases response speed for high flow applications |
Manual Override (Handwheel) | Allows manual operation when power/air is lost |
