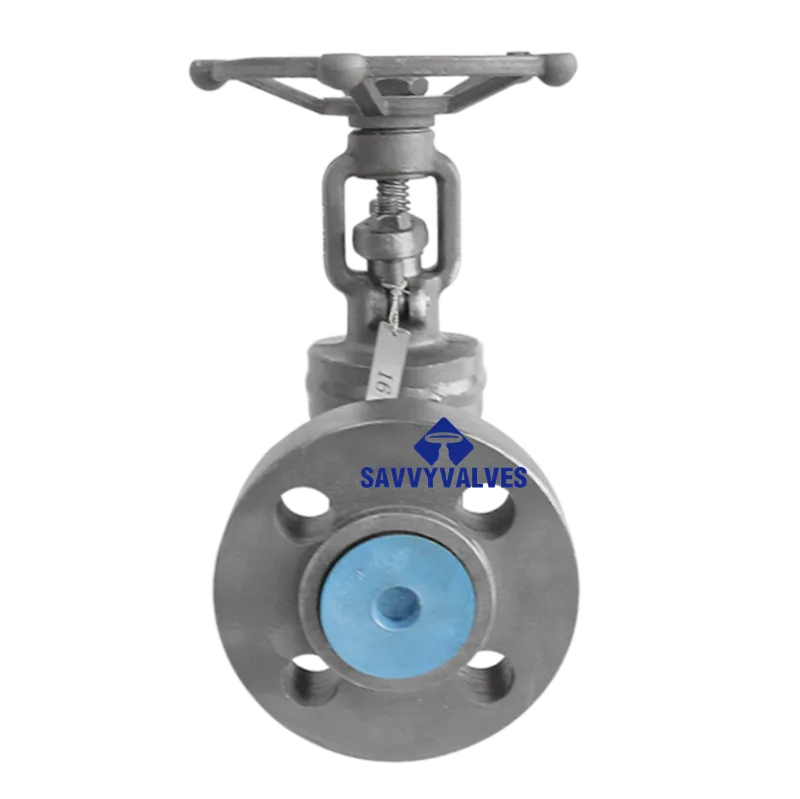

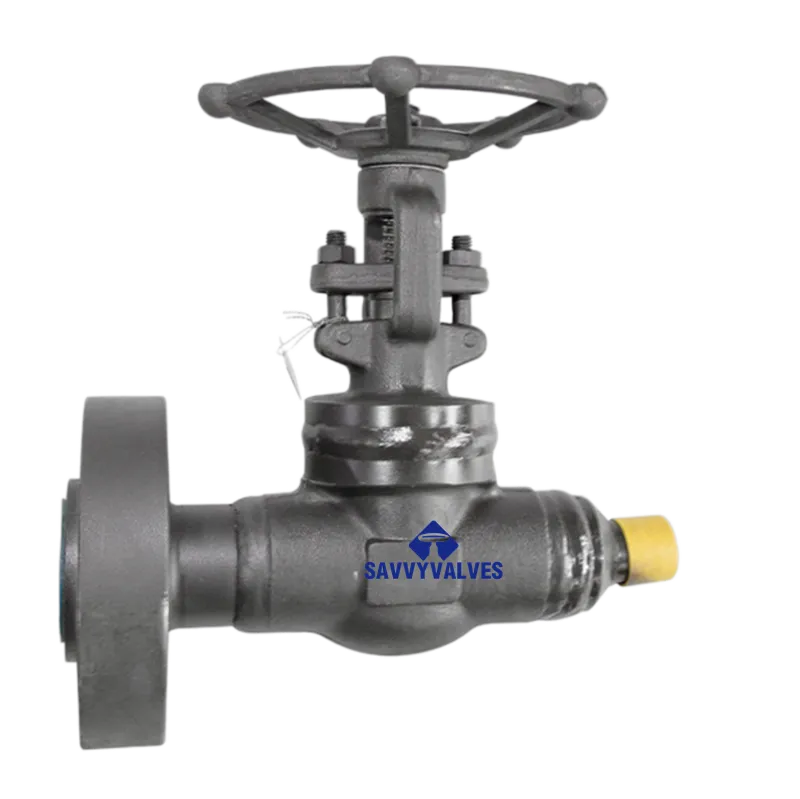

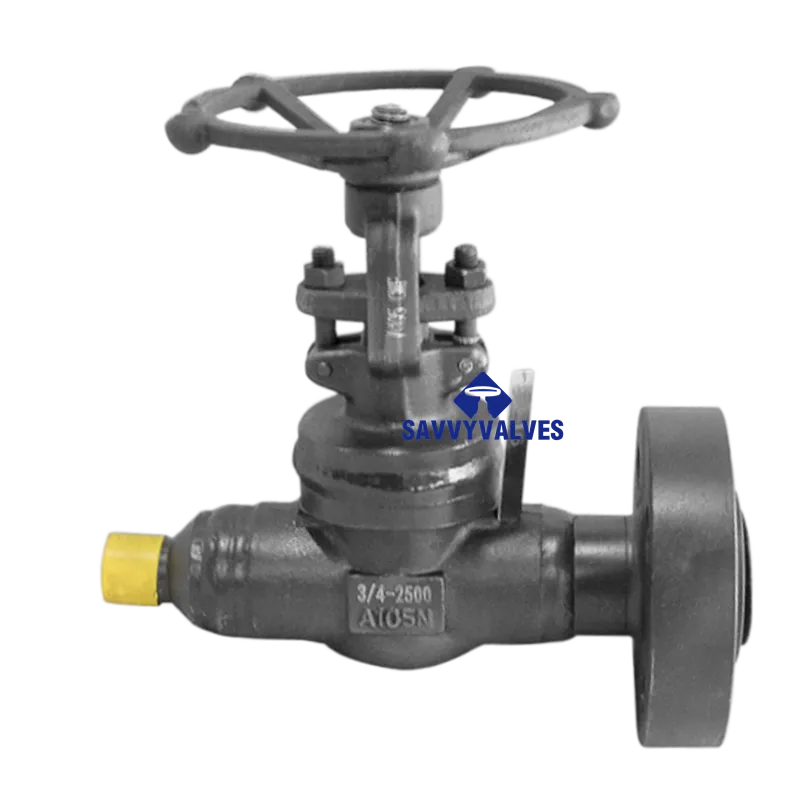

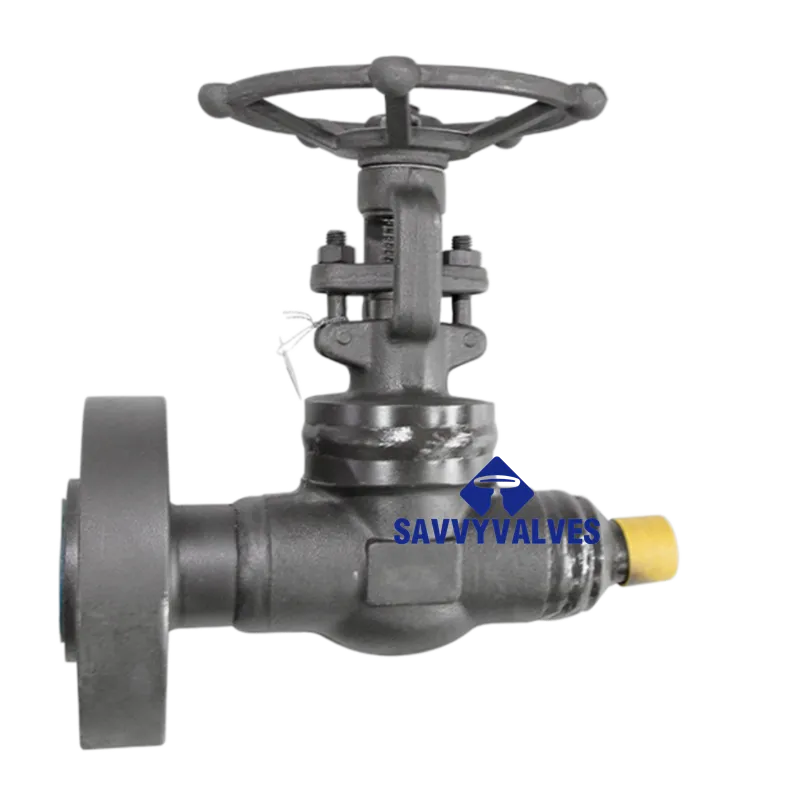

3/4″-2500LB-RTJ*SW Welded Bonnet Globe Valve

3/4″-2500LB-RTJ*SW Welded Bonnet Globe Valve

Technical Data Sheet

Product: Welded Bonnet Globe Valve
Model / Size: 3/4″ – 2500LB – RTJ × SW (Mixed Ends)

1. Product Description

This valve features a fully welded body-to-bonnet connection, eliminating external leakage paths associated with traditional bolted bonnet designs. It is designed for high-temperature, ultra-high-pressure, toxic, flammable, and explosive services.
The valve is supplied with mixed end connections: one end is RTJ flange, the other end is socket weld, allowing installation between a flanged component and a pipe requiring socket weld termination. The disc and seat are hardfaced with Stellite for wear resistance and reliable shut-off.

2. Basic Parameters

3. Design Standards

4. Bill of Materials (Typical Configuration)

5. Dimensions & Weight (Reference)

Note: Dimensions and weights are typical values and may vary by manufacturer.

6. Operating Conditions

7. Testing & Inspection

• Shell Strength Test: 1.5 times rated pressure (hydrostatic); hold time per API 598.
• High-Pressure Seat Test: 1.1 times rated pressure; no visible leakage.
• Low-Pressure Pneumatic Test: 0.6 MPa compressed air; seat and packing leakage within allowable limits.
• Body-Bonnet Weld Examination: 100% radiographic testing (RT) or ultrasonic testing (UT) per ASME Section VIII or equivalent.
• Operational Test: Full stroke cycling under rated differential pressure to verify smooth operation.

8. Features & Benefits

1. Zero External Leakage: Full-penetration welded bonnet eliminates flange gasket leakage paths.
2. Ultra-High Pressure Capability: Class 2500 rating provides safety and reliability for extreme pressure systems.
3. Mixed End Configuration: RTJ flange on one end for high-pressure flange connections; socket weld on the other end for direct pipe welding, simplifying piping layouts.
4. Wear & Erosion Resistance: Disc and seat hardfaced with cobalt-based Stellite alloy for extended service life.
5. Fugitive Emission Compliance: Packing system can meet ISO 15848 or TA-Luft low-emission requirements.

9. Important Notes

• Flow direction: Refer to the arrow marked on the body. If no arrow is present, confirm directionality with the manufacturer before installation.
• RTJ flange: Requires the appropriate solid metal ring gasket (e.g., R18 for 1/2″ flange) and must be torqued to the specified value.
• Socket weld end: Follow the approved Welding Procedure Specification (WPS) to avoid excessive weld stress that may affect valve performance.
• Installation orientation: Typically installed vertically with handwheel upward unless otherwise specified.
