Description
Technical Data Sheet (API 602)

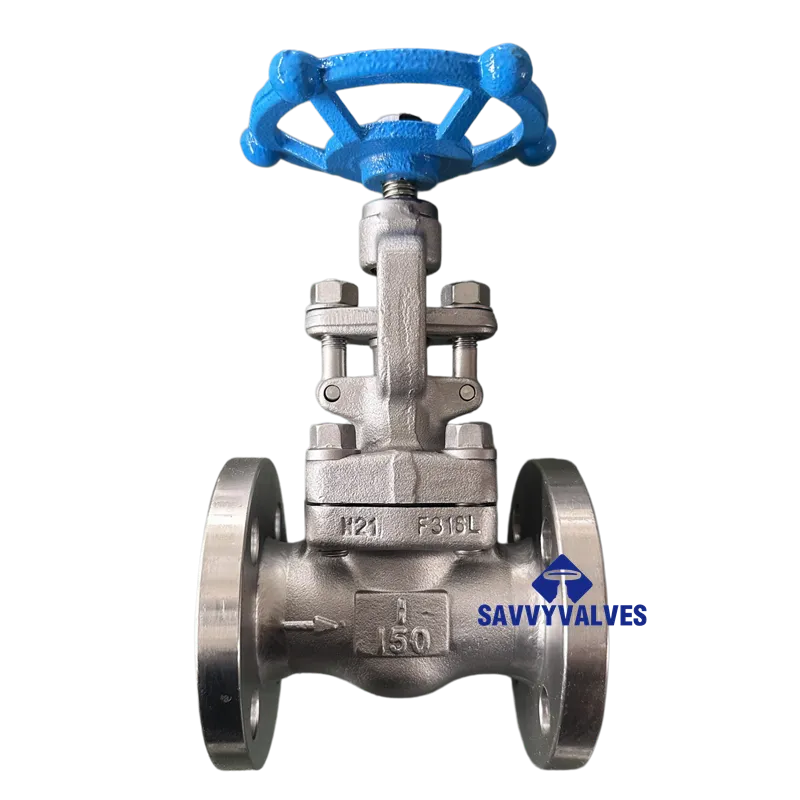

F316L Material 1″ 150LB Flanged Ends
- General Information
|
Item
|
Specification
|
|
Valve Type
|
Forged Steel Globe Valve
|
|
Design Standard
|
API 602 / ASME B16.34 / BS 5352
|
|
Nominal Size
|
1 inch (DN25)
|
|
Pressure Class
|
Class 150 LB (PN20)
|
|
Bonnet Type
|
OS&Y (Outside Screw and Yoke), Bolted Bonnet
|
|
Connection Type
|
Flanged Ends (Raised Face, RF)
|
|
Operation
|
Handwheel
|
|
Body Material
|
ASTM A182 F316L (Forged Steel)
|
- Applicable Standards
|
Item
|
Standard Code
|
|
Design & Manufacturing
|
API 602, ASME B16.34, BS 5352
|
|
Face-to-Face / End-to-End
|
ASME B16.10
|
|
Flanged Connections
|
ASME B16.5
|
|
Test & Inspection
|
API 598
|
|
Pressure-Temperature Rating
|
ASME B16.34
|
|
Valve Marking
|
MSS SP-25
|
- Main Design Features
- Body Construction: One-piece forged body, dense structure, high strength, eliminates casting defects .
- Bonnet Connection: Bolted bonnet design with spiral wound gasket sealing .
- Disc Design: Renewable disc type, hardfaced seating surface or integral seat.
- Stem Design: Backseat feature allows packing replacement under pressure when valve is fully open .
- Operating Characteristics: Disc moves linearly along seat centerline, short stroke, reliable shut-off .
- Seat Design: Metal-to-metal seating or STL hardfacing for durability.
- Packing: Flexible graphite packing, low emission design.
- Main Component Materials (F316L Material)
|
Item
|
Part Name
|
Material
|
Standard/Remark
|
|
1
|
Body
|
ASTM A182 F316L
|
Forged Stainless Steel
|
|
2
|
Bonnet
|
ASTM A182 F316L
|
Forged Stainless Steel
|
|
3
|
Disc
|
ASTM A182 F316L + STL
|
Hardfaced with Stellite
|
|
4
|
Seat
|
Integral / STL Hardfaced
|
Machined directly on body or hardfaced
|
|
5
|
Stem
|
ASTM A182 F316L
|
Stainless Steel
|
|
6
|
Gasket
|
316 + Flexible Graphite
|
Spiral Wound
|
|
7
|
Packing
|
Flexible Graphite
|
Low emission design
|
|
8
|
Gland
|
ASTM A182 F316L
|
Stainless Steel
|
|
9
|
Bonnet Bolt
|
ASTM A193 B8
|
Stainless Steel
|
|
10
|
Bonnet Nut
|
ASTM A194 8
|
Stainless Steel
|
|
11
|
Handwheel
|
Malleable Iron / Carbon Steel
|
ASTM A197
|
- Technical Parameters & Dimensions
5.1 Pressure-Temperature Ratings
- Material Group: Group 2.2 (Stainless Steel)
- Temperature Range: -29°C ~ 180°C (PTFE seats) / -29°C ~ 425°C (Metal seated)
- Applicable Media: Nitric acid, acetic acid, corrosive media
5.2 Dimensions (1″ Class 150 Flanged Ends)
|
Dimension
|
Value
|
Remark
|
|
End-to-End Length (L)
|
127 mm
|
Flanged ends, per ASME B16.10
|
|
Height (H-OPEN)
|
Approx. 207 – 217 mm
|
Fully open position
|
|
Handwheel Diameter (W)
|
125 mm
|
|
|
Flange Diameter (D)
|
108 mm
|
ASME B16.5 Class 150 1″ RF
|
|
Bolt Circle Diameter
|
79.4 mm
|
ASME B16.5 Class 150 1″ RF
|
|
Number of Bolt Holes/Size
|
4 / 15.9 mm
|
ASME B16.5 Class 150 1″ RF
|
|
Weight
|
Approx. 9.8 – 11.0 kg
|
Reference only, may vary by manufacturer
|
5.3 End Connection Details
- Flanged (RF): Flange dimensions per ASME B16.5 Class 150, Raised Face sealing .
- Test & Inspection (API 598)
|
Test Item
|
Test Pressure (Class 150)
|
Medium
|
Acceptance Criteria
|
|
Shell Test
|
3.0 MPa (Hydrostatic)
|
Water
|
No visible leakage
|
|
High-Pressure Seat Test
|
2.2 MPa (Hydrostatic or Pneumatic)
|
Water or Air
|
No visible leakage
|
|
Low-Pressure Seat Test
|
0.5 – 0.7 MPa (Air)
|
Air
|
No bubbles leakage
|
|
Test Duration
|
Per API 598
|
—
|
Hold time conforms to standard
|
- Marking & Supply
- Valve Marking: Per MSS SP-25, nameplate to include material, pressure, heat number, etc. .
- Cleaning & Protection: Valves internally and externally cleaned, flange faces covered with protectors and coated with rust preventive.
- Documentation: Material certificates, pressure test reports, declaration of conformity provided with shipment.
