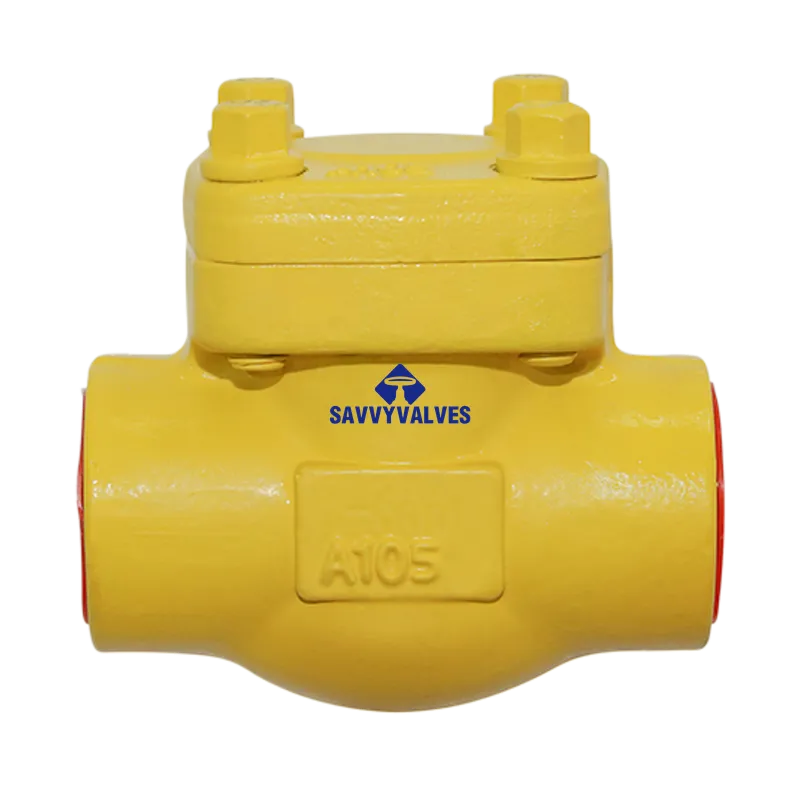

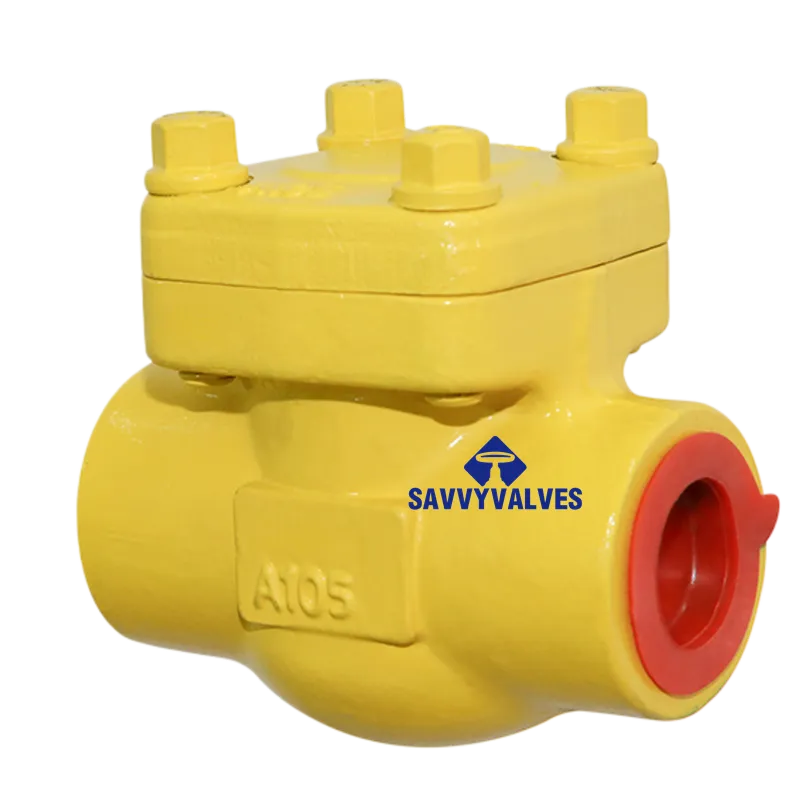

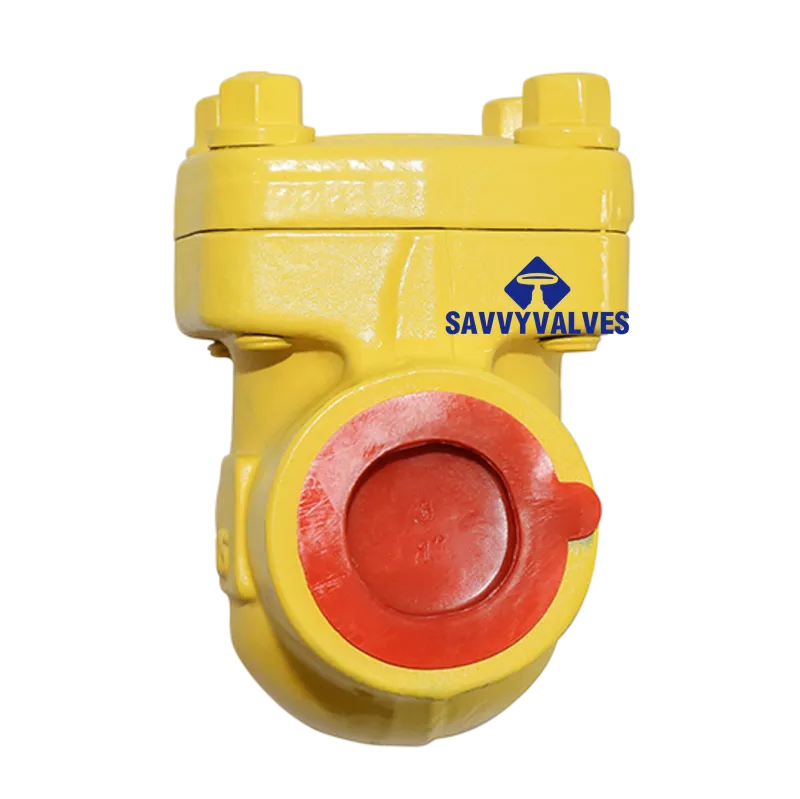

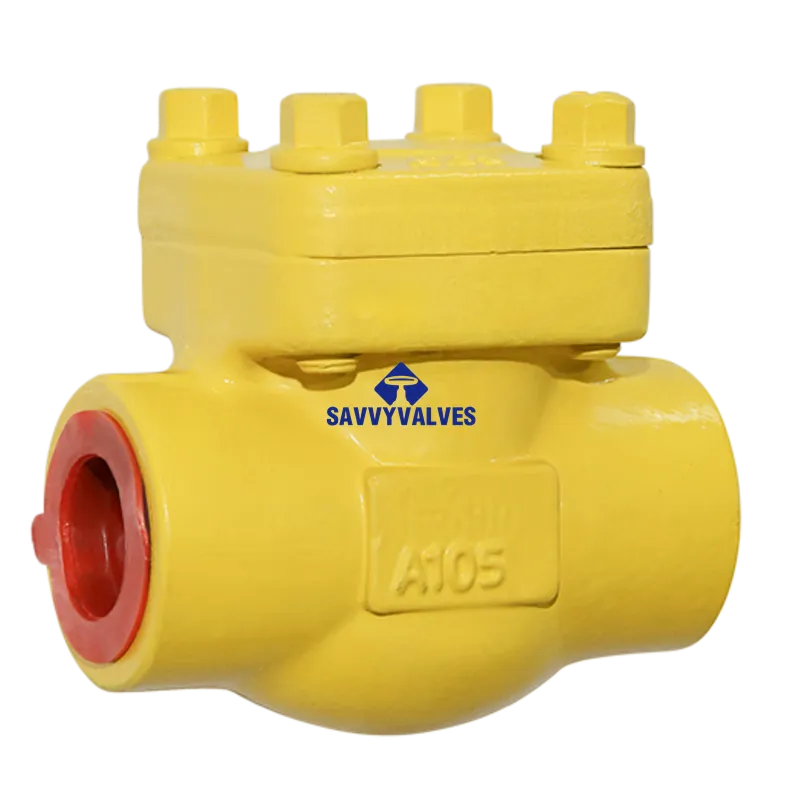

1″-600LB-SW Close Die Forged Lifting Check Valve

Technical Datasheet

Product Name: Forged Steel Lifting Check Valve
Model: 1″-600LB SW Lifting Check Valve

1. General Information

2. Technical Specifications

3. Main Material of Parts

4. Main Dimensions & Connection Data (Unit: mm)

Note: Socket Weld ends conform to ASME B16.11.

Note: Dimensions above are typical. Final dimensions should be based on approved manufacturer drawings.

5. Applicable Design Standards

• Design & Manufacture: API 602 (Compact Forged Valves) / ASME B16.34
• Face-to-Face Dimensions: ASME B16.10 or API 602
• End Connections: ASME B16.11 (Socket Weld)
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598

6. Product Features

1. Lifting (Piston) Type Design: The disc lifts vertically within the body, providing a guided, stable operation that minimizes wear and ensures positive sealing.
2. Forged Construction: ASTM A105 or F316 forged body provides superior strength and reliability for Class 600 high-pressure applications.
3. Socket Weld Ends: Provides a permanent, leak-free connection suitable for high-integrity piping systems.
4. Compact Design: Short face-to-face dimensions (per API 602) make it ideal for tight piping layouts.
5. Automatic Operation: Prevents reverse flow without external actuation; disc closes automatically when flow reverses.
6. Horizontal Installation: Lifting check valves are typically installed in horizontal pipelines with the bonnet vertical (upward) for proper operation.

Remarks:

• Material Options: Available in A105 Carbon Steel (for non-corrosive services like water, oil, steam) or F316 Stainless Steel (for corrosive services). Specify material grade when ordering.
• Installation: Ensure the valve is installed with the flow direction arrow oriented correctly and the bonnet facing upward (vertical) for reliable disc operation.
• Spring-Assisted Option: For vertical or low-flow applications, a spring-assisted disc can be provided to ensure prompt closing.
• For specific dimensional data and torque values, please refer to the official certified drawings from the manufacturer.
