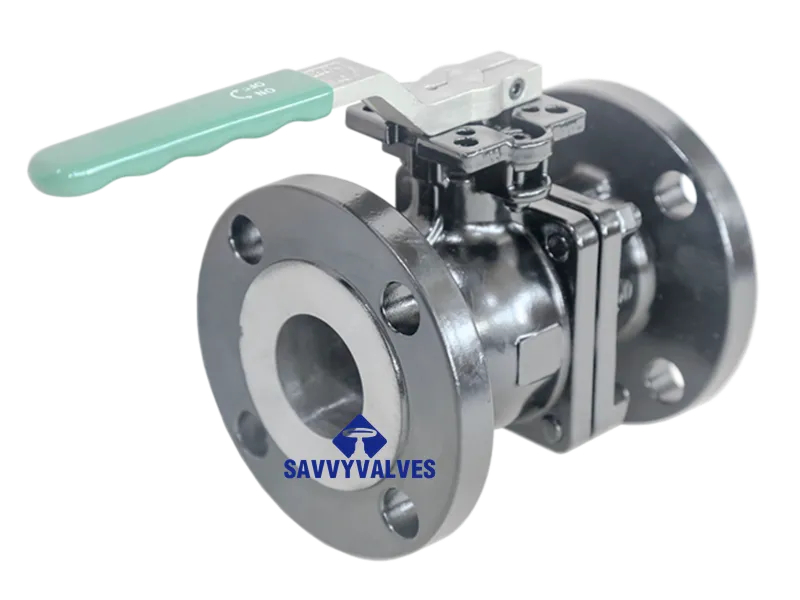

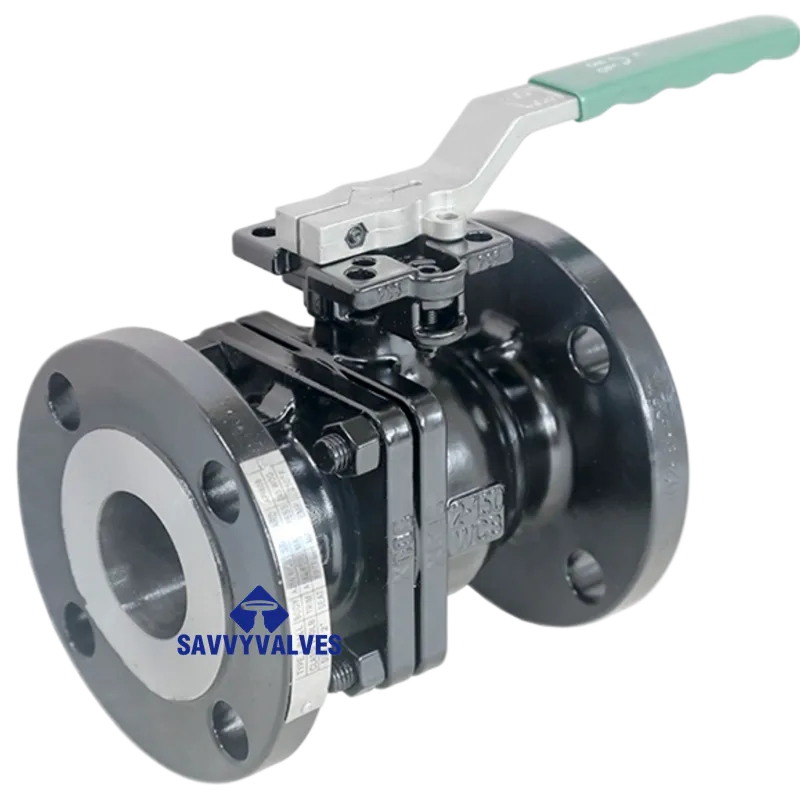

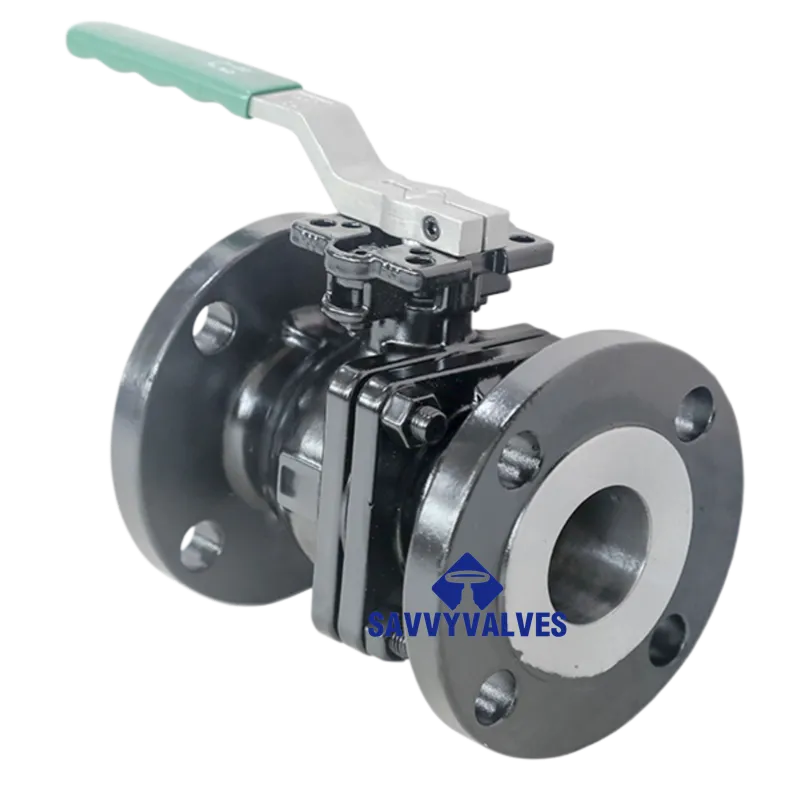

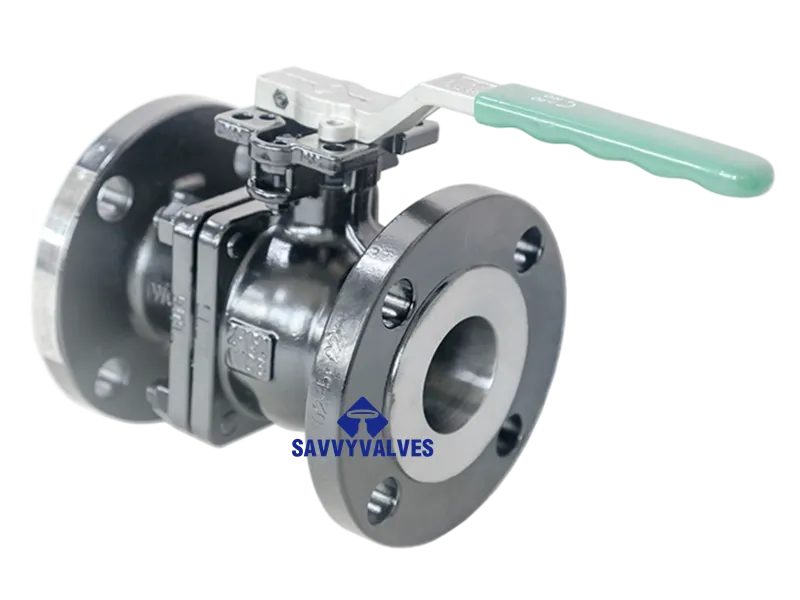

2″-150LB-RF Silica Sol Precision Casting Floating Ball Valve

2″-150LB-RF Silica Sol Precision Cast Floating Ball Valve – Technical Data Sheet

1. Main Parts & Materials (Silica Sol Castings)

2. Dimensions & Weight (Class 150 Flanged, RF – Standard)

Note: Dimensions follow ASME B16.10 for short pattern; some manufacturers use longer patterns. Confirm with drawing.

3. Silica Sol Casting Advantages

• Superior Surface Finish – Reduces fugitive emissions, minimizes seat wear, and ensures reliable ball‑seat contact.
• High Dimensional Accuracy – Consistent flange alignment and ball cavity dimensions, critical for automated actuation.
• Defect‑Free Structure – Almost no porosity, inclusions, or shrinkage defects compared to sand casting.
• Thin‑Wall Capability – Allows lighter weight without compromising mechanical strength.

4. Performance Features

1. Soft Seated Floating Ball – Bubble‑tight shut‑off in both directions (zero leakage per API 598 / ISO 5208 Rate A).
2. Precision Cast Body – Smooth internal surface reduces pressure drop and extends seat life.
3. Low Operating Torque – Polished ball and low‑friction PTFE seats ensure easy manual or actuated operation.
4. Bidirectional Sealing – No preferred flow direction; simplifies installation.
5. Fire Safe Design (Optional) – Secondary metal‑to‑metal sealing meets API 607 / ISO 10497.
6. Anti‑Static Device – Available to dissipate static charge across the ball, stem, and body.

5. Actuation Options

6. Applications

• Water treatment and distribution
• Oil and gas gathering lines
• Chemical and petrochemical process lines
• HVAC systems
• Food and beverage (with stainless steel body)
• General industrial utilities

7. Testing & Compliance

8. Ordering Information

When ordering, please specify:

• Valve size: 2″
• Pressure rating: Class 150
• End connection: Flanged RF
• Body material: WCB / CF8 / CF8M
• Seat material: PTFE / RTFE / PEEK
• Operation: Lever / Gear / Pneumatic / Electric
• Special requirements: Fire safe, anti‑static, low‑emission packing, NACE MR0175, etc.

Notes:

• Silica sol casting ensures a high‑quality surface finish, making this valve suitable for critical services and automated actuation.
• For stainless steel bodies (CF8/CF8M), the same silica sol process applies, offering excellent corrosion resistance.
• Final dimensions and weights may vary slightly by manufacturer; refer to approved drawings for exact values.
