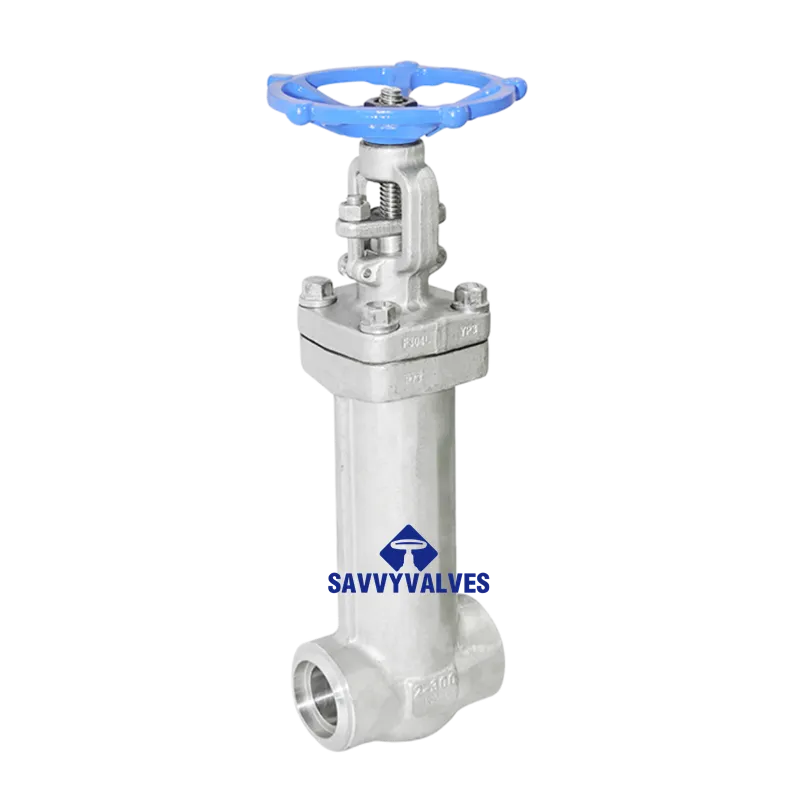

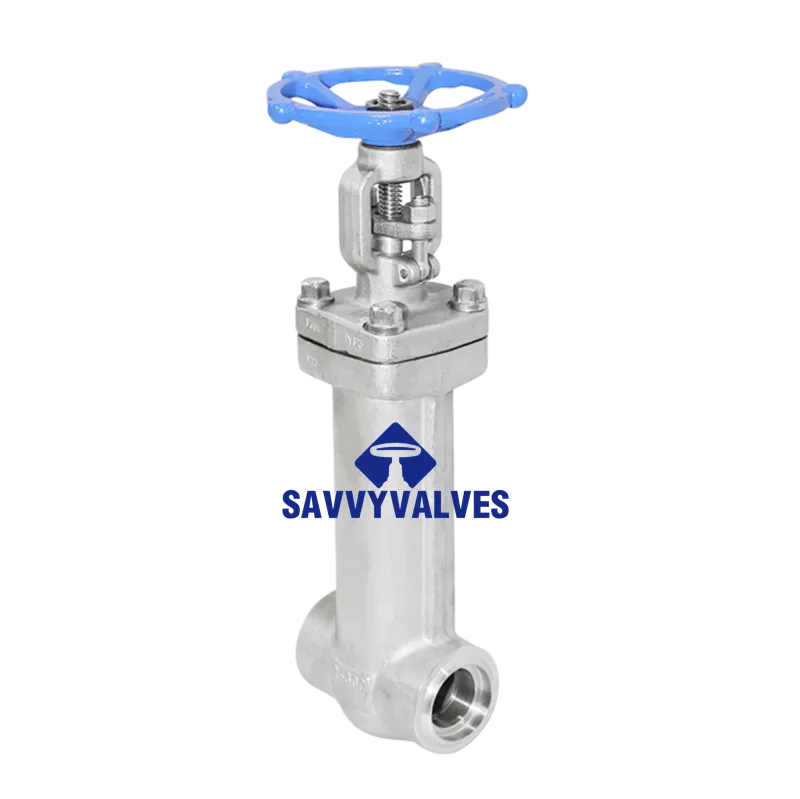

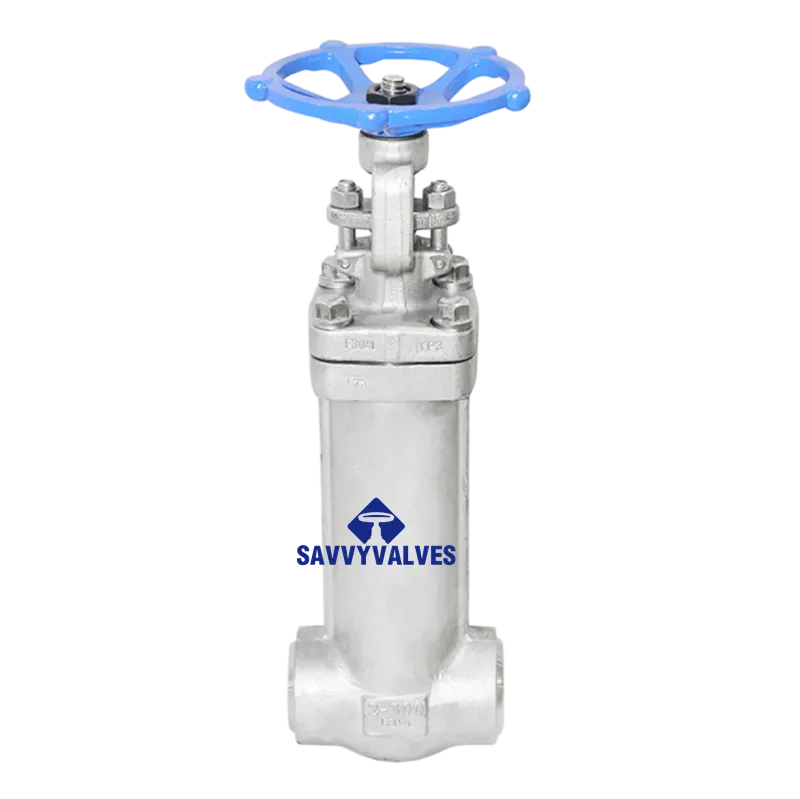

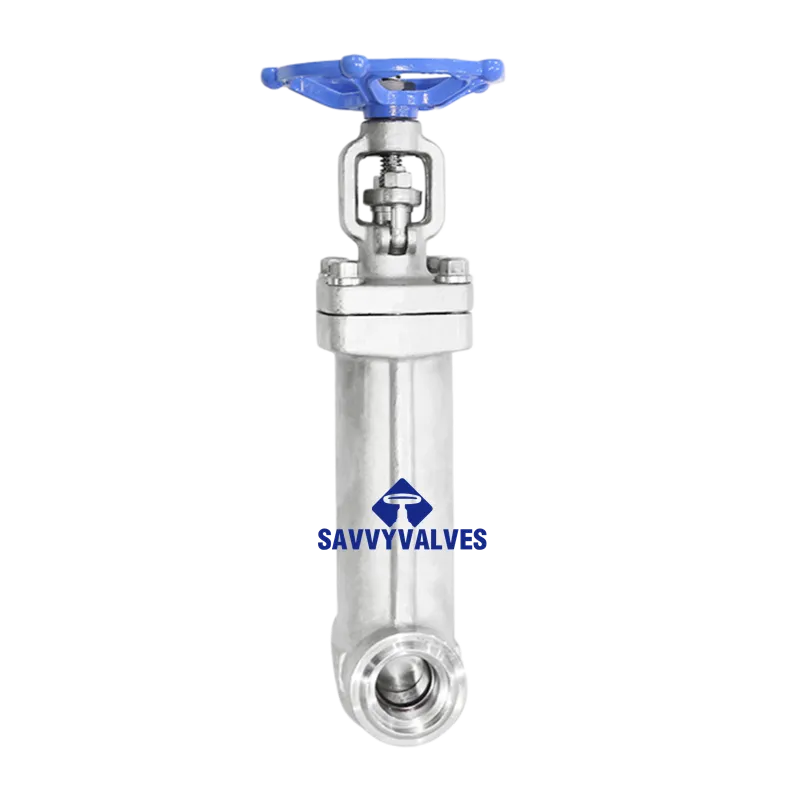

2″-300LB SS Bellow Seal SW End Gate Valve

Technical Datasheet

Product Name: Forged Stainless Steel F316L Bellow Seal Gate Valve
Model: 2″-300LB Bellow Seal SW End Gate Valve (Body Material: F316L)

1. General Information

2. Technical Specifications

3. Main Material of Parts

4. Main Dimensions & Connection Data (Unit: mm)

Note: Socket Weld ends conform to ASME B16.11.

Note: Dimensions above are typical. Final dimensions should be based on approved manufacturer drawings.

5. Applicable Design Standards

• Design & Manufacture: API 602 (Forged Valves) / ASME B16.34
• Face-to-Face Dimensions: ASME B16.10 (or per user request)
• End Connections: ASME B16.11 (Socket Weld)
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598

6. Product Features

1. Zero Leakage: The multi-layer stainless steel bellows (316L) ensures zero stem leakage, critical for fugitive emission control.
2. Superior Corrosion Resistance: F316L material provides enhanced resistance to pitting and intergranular corrosion, especially in chloride environments.
3. Double Seal Safety: Backup graphite packing provides secondary protection in case of bellows failure.
4. Long Service Life: Elimination of stem seal friction reduces wear.
5. Visual Indication: Rising stem design provides clear visual position indication.

Remarks:

• This datasheet specifies ASTM A182 F316L for forged components.
• For specific dimensional data and torque values, please refer to the official certified drawings from the manufacturer.

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
