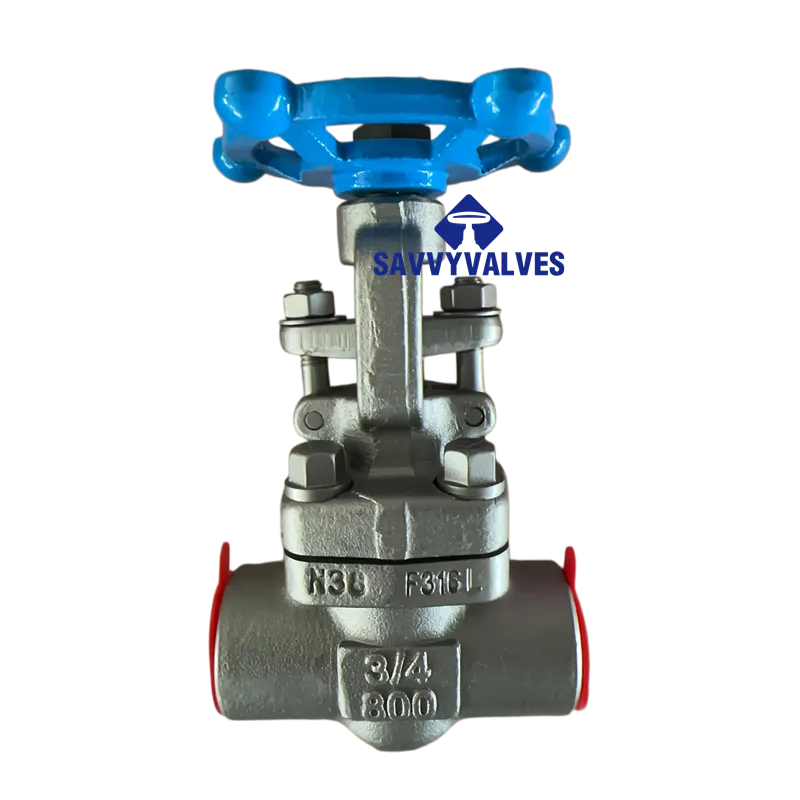

API 602 Forged Stainless Steel Gate Valve Technical Data Sheet
F316L Material 3/4″ 800LB NPT/Welded Ends
- General Information
|
Item
|
Specification
|
|
Valve Type
|
Forged Steel Gate Valve
|
|
Design Standard
|
API 602 / ASME B16.34 / BS 5352
|
|
Nominal Size
|
3/4 inch (DN20)
|
|
Pressure Class
|
Class 800 LB (PN130)
|
|
Structure Type
|
OS&Y (Outside Screw and Yoke), Bolted Bonnet
|
|
Connection Type
|
NPT Threaded (ASME B1.20.1) or Socket Weld (ASME B16.11)
|
|
Operation
|
Handwheel
|
|
Body Material
|
ASTM A182 F316L (Forged Austenitic Stainless Steel)
|
- Applicable Standards
|
Item
|
Standard Code
|
|
Design & Manufacturing
|
API 602, ASME B16.34, BS 5352
|
|
Face-to-Face / End-to-End
|
Manufacturer Standard / ASME B16.10
|
|
Socket Weld Ends
|
ASME B16.11
|
|
Threaded Ends
|
ASME B1.20.1 (NPT)
|
|
Test & Inspection
|
API 598
|
|
Pressure-Temperature Rating
|
ASME B16.34
|
|
Valve Marking
|
MSS SP-25
|
- Main Design Features
- Body Construction: One-piece die forged body, dense structure, high strength, no casting defects, excellent corrosion resistance
- Bonnet Connection: Bolted bonnet design with stainless steel/flexible graphite spiral wound gasket sealing
- Wedge Design: Solid wedge, fully guided design, minimizes wear, reliable sealing
- Stem Design: Backseat feature allows packing replacement under pressure when valve is fully open
- Seating Surface: Metal-to-metal seating, hardfaced or integral stainless steel seat rings for durability
- Packing: Flexible graphite packing, low emission design
- Seat Rings: Renewable seat rings or integral seat
- Main Component Materials (F316L Material)
|
Item
|
Part Name
|
Material
|
Standard/Remark
|
|
1
|
Body
|
ASTM A182 F316L
|
Forged Austenitic Stainless Steel
|
|
2
|
Bonnet
|
ASTM A182 F316L
|
Forged Austenitic Stainless Steel
|
|
3
|
Wedge
|
ASTM A182 F316L
|
Stainless Steel
|
|
4
|
Seat Ring
|
ASTM A276 316L
|
Hardened Stainless Steel, Renewable or Integral
|
|
5
|
Stem
|
ASTM A182 F316L
|
Stainless Steel
|
|
6
|
Gasket
|
316 + Flexible Graphite
|
Spiral Wound
|
|
7
|
Packing
|
Flexible Graphite
|
Low emission design
|
|
8
|
Gland Bushing
|
ASTM A182 F316L
|
Stainless Steel
|
|
9
|
Gland Flange
|
ASTM A182 F316L
|
Stainless Steel
|
|
10
|
Bonnet Bolt
|
ASTM A193 B8
|
Stainless Steel
|
|
11
|
Bonnet Nut
|
ASTM A194 8
|
Stainless Steel
|
|
12
|
Eye Bolt
|
ASTM A193 B8
|
Stainless Steel
|
|
13
|
Handwheel
|
ASTM A197
|
Malleable Cast Iron
|
- Technical Parameters & Dimensions
5.1 Pressure-Temperature Ratings
|
Item
|
Parameter
|
|
Nominal Pressure
|
Class 800 LB (PN130)
|
|
Shell Test Pressure
|
20.0 MPa (Hydrostatic) [API 598]
|
|
High-Pressure Seat Test Pressure
|
14.8 MPa (Hydrostatic) [API 598]
|
|
Low-Pressure Pneumatic Test Pressure
|
0.5 – 0.7 MPa (Air) [API 598]
|
|
Temperature Range
|
-29°C ~ 425°C
|
|
Applicable Media
|
Nitric acid, acetic acid, corrosive media
|
5.2 Dimensions (3/4″ Class 800 NPT/Socket Weld)
|
Dimension
|
Value
|
Remark
|
|
End-to-End Length (L)
|
92 mm
|
For NPT/SW ends, typical API 602 value
|
|
Height (H-OPEN)
|
Approx. 161 – 169 mm
|
Fully open position, reference
|
|
Handwheel Diameter (W)
|
100 mm
|
Reference
|
|
Socket Weld Bore (B)
|
28.5 mm
|
Socket weld inner diameter
|
|
Socket Weld Depth (S)
|
12.7 mm
|
Minimum socket depth
|
|
Threaded End
|
3/4″ NPT
|
Per ASME B1.20.1
|
|
Weight
|
Approx. 2.3 kg
|
Bolted bonnet type, reference
|
5.3 End Connection Details
- NPT Threaded Ends: Per ASME B1.20.1, 3/4 inch American Standard Taper Pipe Thread
- Socket Weld Ends (SW): Per ASME B16.11, bore dia 28.5mm, socket depth 12.7mm
- Flow Direction: Gate valve has no flow direction restriction
- Test & Inspection (API 598)
|
Test Item
|
Test Pressure
|
Medium
|
Acceptance Criteria
|
|
Shell Test
|
20.0 MPa
|
Water
|
No visible leakage
|
|
High-Pressure Seat Test
|
14.8 MPa
|
Water
|
No visible leakage
|
|
Low-Pressure Seat Test
|
0.5 – 0.7 MPa
|
Air
|
No bubbles leakage
|
|
Test Duration
|
Per API 598
|
—
|
Hold time conforms to standard
|
- Marking & Supply
- Valve Marking: Per MSS SP-25, nameplate to include nominal size, pressure class, material, heat number, design standard, etc.
- Cleaning & Protection: Valves internally and externally cleaned, ends covered with protectors, threaded or weld ends coated with rust preventive
- Documentation: Material certificates, pressure test reports, declaration of conformity provided with shipment
