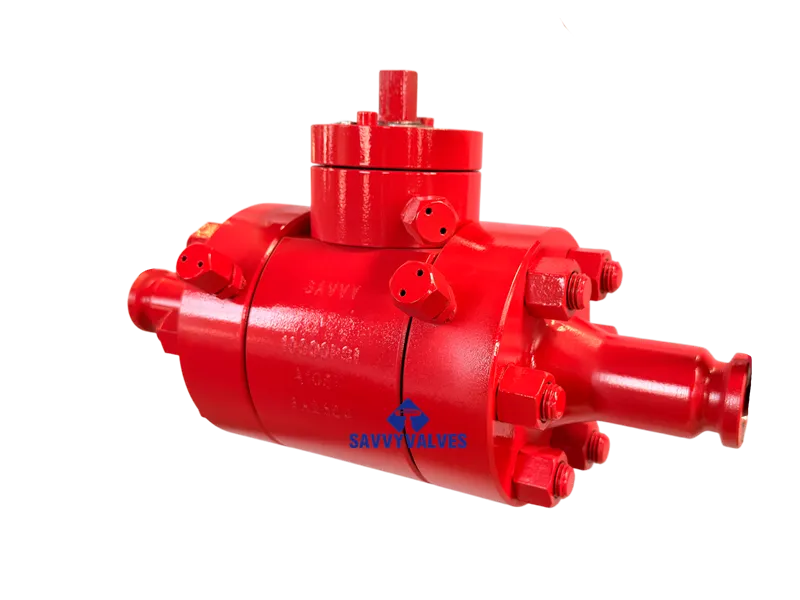

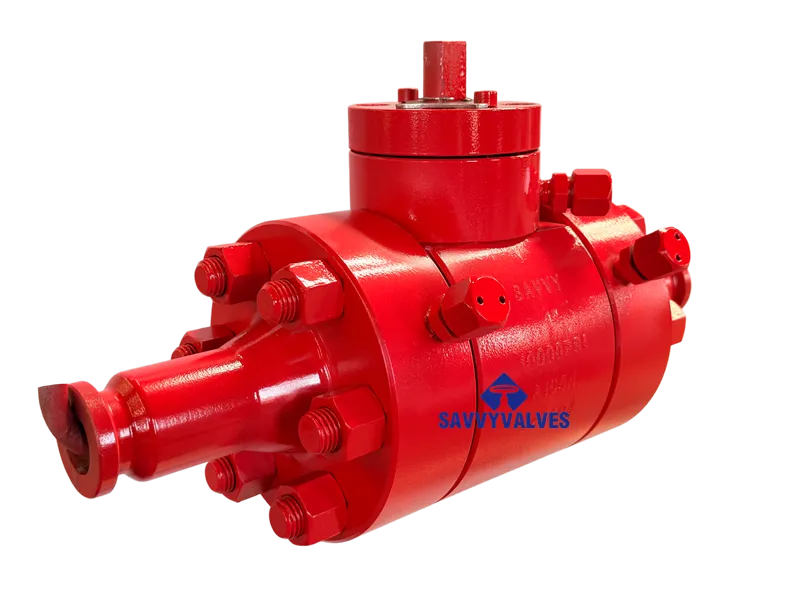

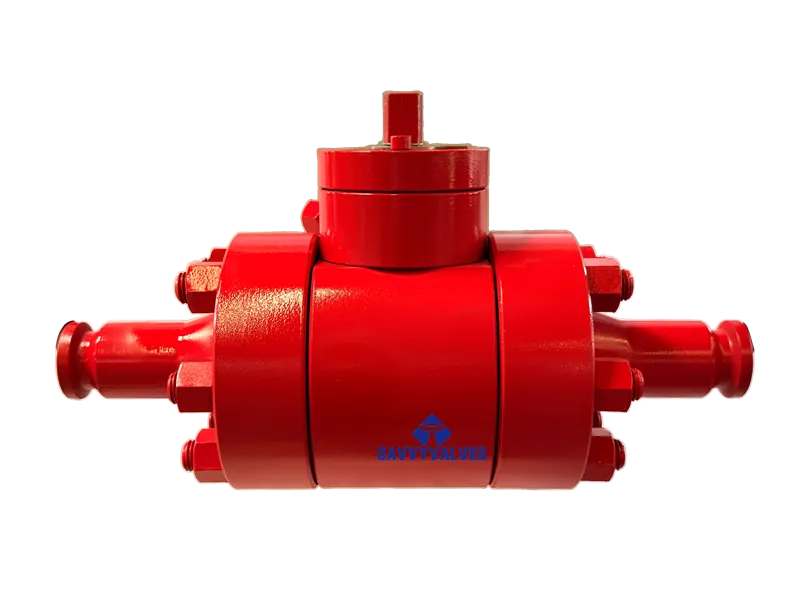

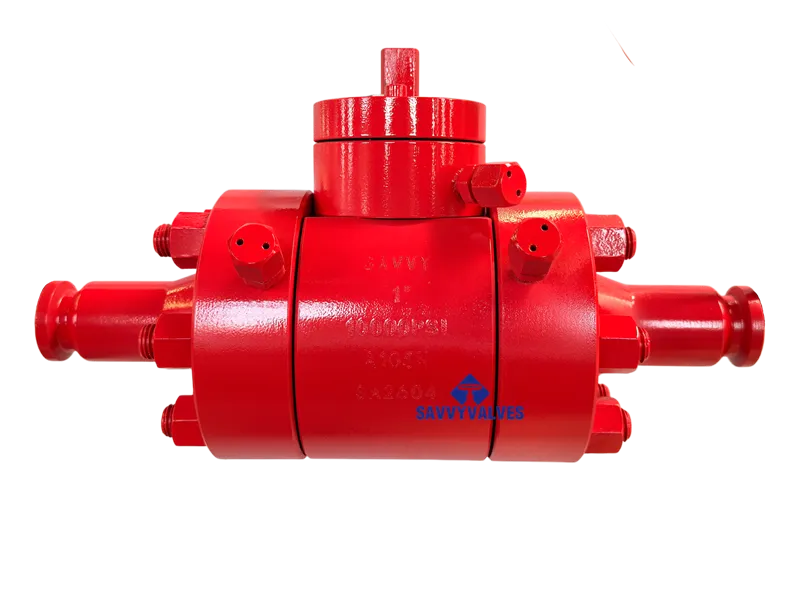

API 6A 10000PSI Trunnion Ball Valve Suitable for Grayloc Hubs

API 6A 10000PSI Trunnion Ball Valve Suitable for Grayloc Hubs

Design Standard API 6A / ISO 10423 (21st Edition)
Size Range 1/2″ to 4″ (larger sizes limited by floating principle)
Pressure Class 2,000 psi to 10,000 psi (data sheet focus: 10,000 psi)
Temperature Class Class K (-60°C to +82°C) to Class U/V (up to +180°C)
Product Specification Level (PSL) PSL 1, PSL 2, PSL 3, PSL 3G (typical: PSL 3G)
Performance Requirement (PR) PR 1 (standard) / PR 2 (high cycle)
Material Class AA, BB, CC, DD, EE, FF, HH (sour service: FF)

  • aboutimg3
  • aboutimg4
  • aboutimg5


API 6A 10,000 PSI Floating Ball Valve

Technical Data Sheet (Suitable for Grayloc Hubs)

  1. Product Overview

This technical data sheet covers the API 6A, 10,000 PSI floating ball valve, designed specifically for integration with Grayloc hubs. The floating ball design relies on the downstream seat to seal as the ball is pushed against it under line pressure. This valve is suitable for moderate-sized, high‑pressure oil & gas applications including wellhead equipment, manifold systems, and process lines, particularly where compact design and bidirectional sealing are required.

  1. Valve Scope & Design Range

Parameter

Specification

Product Name

API 6A Floating Ball Valve

Design Standard

API 6A / ISO 10423 (21st Edition)

Size Range

1/2″ to 4″ (larger sizes limited by floating principle)

Pressure Class

2,000 psi to 10,000 psi (data sheet focus: 10,000 psi)

Temperature Class

Class K (-60°C to +82°C) to Class U/V (up to +180°C)

Product Specification Level (PSL)

PSL 1, PSL 2, PSL 3, PSL 3G (typical: PSL 3G)

Performance Requirement (PR)

PR 1 (standard) / PR 2 (high‑cycle)

Material Class

AA, BB, CC, DD, EE, FF, HH (sour service: FF)

Bore Type

Full bore (standard) or reduced bore

Body Construction

2‑piece or 3‑piece bolted / forged steel

Operation

Lever, manual gear, pneumatic, electric, hydraulic

  1. Grayloc End Connection Specifications

The valve is supplied with integral hubs suitable for Grayloc clamp‑type connectors.

Parameter

Specification

Connection Type

Grayloc® Clamp Hub Connectors

Design Pressure

Full vacuum up to 60,000 psig (system rated for 10,000 psi)

Design Temperature

-423°F to 1,700°F (-253°C to 927°C)

Sealing Mechanism

Metal‑to‑metal bore seal

Key Advantages

High‑integrity sealing; weight & space savings vs. RTJ flanges (up to 70% less torque)

Applicable Standards

Designed per ASME Section VIII, API 6A; optional ASME certification

Grayloc Hub Interface Note: Hubs are manufactured per Grayloc standards and can be customized for blind, reduced port, or instrument connections. The floating ball valve’s low torque requirement makes it especially compatible with clamp‑type connections.

  1. Materials of Construction

All materials comply with NACE MR0175 / ISO 15156 for H₂S & CO₂ service.

Component

Standard Material (Sour Service)

Optional Materials

Body / Bonnet

ASTM A694 F60 / F65, AISI 4130

A182 F22 (Cr‑Mo), A182 F316 (SS), Duplex SS, Inconel 625

Ball

17‑4PH SS + coating / hardfacing (e.g., NiCr, CrN)

Inconel 625 + Stellite 6, Tungsten Carbide (HVOF)

Seat

Reinforced PTFE, PEEK, Nylon

Devlon, Metal‑to‑Metal (graphite‑filled)

Stem

17‑4PH SS / AISI 4140

Inconel 625, Monel

Bolting / Fasteners

ASTM A193 B7 / A320 L7 (PTFE coated)

Stainless steel (A193 B8M)

  1. Design Features – Floating Ball Concept
  • Floating Ball Mechanism: The ball is not fixed by trunnions. Under pressure, the ball shifts slightly downstream, compressing the downstream seat and creating a tight seal. The upstream seat is only a nominal fit.
  • Bidirectional Sealing: The floating design provides sealing against pressure from either direction, with the downstream seat acting as the primary seal.
  • Low Operating Torque: No trunnion bearings means fewer moving parts; torque is generally lower than trunnion designs at smaller sizes.
  • Anti‑Blowout Stem: Stem is retained integrally in the bonnet, preventing ejection under high pressure.
  • Emergency Sealant Injection: Fittings (if specified) allow injection of sealant into seat/stem areas.
  • Anti‑static Device: Ensures electrical continuity across ball, stem, and body.
  • Fire Safe Design: Certified to API 6FA / API 607.
  • Cavity Pressure Relief: For floating ball valves, the cavity is normally self‑relieving through the upstream seat when pressure exceeds seat loading.

Note on 10,000 psi operation: Floating ball valves in API 6A 10K service are typically limited to sizes ≤ 4″ (NPS). For larger bore sizes, a trunnion‑mounted design is recommended.

  1. Testing & Inspection

All testing per API 6A requirements.

Test Type

Requirement / Procedure

Body Shell Hydrostatic

1.5 × rated pressure (15,000 psi) – no leakage through pressure boundary

Seat Hydrostatic (High Pressure)

1.1 × rated pressure (11,000 psi) – zero leakage (soft seat)

Seat Gas (Low Pressure)

80 – 160 psi – bubble‑tight for soft‑seated valves

Double Block & Bleed (DBB)

As per API 6A – cavity venting capability verified (optional for floating)

PR2 Performance Validation

High‑cycle / hyperbaric per API 6A Annex F (if required)

NDE

MPI / LPI / RT per PSL

Fire Test

API 6FA / API 607 certification

Inspection Standard

API 598 (Valve Inspection and Test)

  1. Service Conditions & Applications
  • Service Media: Crude oil, natural gas, well fluids, water, glycol, fluids containing H₂S / CO₂ (sour service).
  • Applications: Wellhead equipment, Christmas trees (non‑choke lines), high‑pressure manifolds, offshore platforms, Grayloc hub‑based piping systems, hydraulic control panels.
  • Grayloc Integration: The compact design of a floating ball valve matches well with Grayloc hubs on size‑reduced, weight‑sensitive topside applications.
  1. Actuation & Accessories
  • Manual: Lockable lever handle (≤ NPS 2), bevel gear operator (≥ NPS 3).
  • Automation: Pneumatic (double‑acting / spring‑return), electric (explosion‑proof), hydraulic.
  • Controls: Limit switch boxes, solenoid valves, positioners (analog / digital), ESD systems.
  • Redundancy: Hydraulic override available.
  1. Documents & Reference Codes
  • Design Basis: API 6A (21st Edition), ASME B16.34 (pressure‑temperature rating).
  • End Connections: Grayloc hub dimensions (per Grayloc standard), ASME B16.5 (flanged), ASME B16.25 (buttweld).
  • Face‑to‑Face: ASME B16.10 or manufacturer’s standard.
  • Sour Service: NACE MR0175 / ISO 15156.
  • Fire Safety: API 6FA / API 607 / BS 6755 Part 2.
  • Marking: API Monogram, CE PED (upon request).
  • Coating: External – industrial epoxy (primer + topcoat); Internal – anti‑corrosion coating per NACE.

Disclaimer: This technical data sheet is for informational purposes only. Final specifications are subject to project requirements and engineering review. For sizes above 4″ in 10,000 psi class, a trunnion ball valve is recommended.
