TECHNICAL DATASHEET

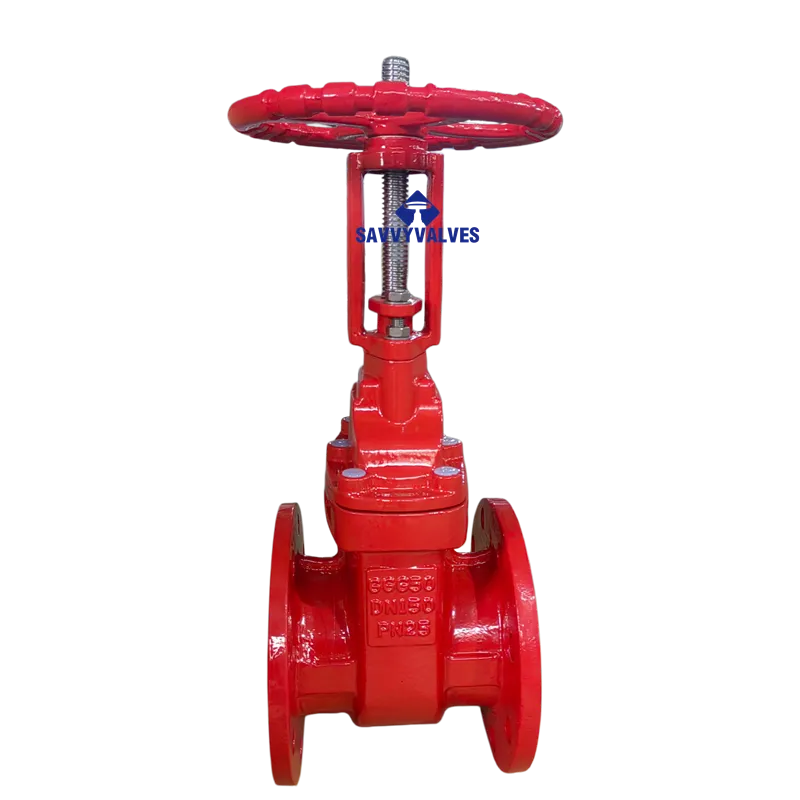

DN150 PN25 Ductile Iron Rising Stem Gate Valve
- General Specifications
|
Item
|
Specification
|
|
Valve Type
|
Rising Stem Gate Valve (OS&Y)
|
|
Nominal Size
|
DN150 (6″)
|
|
Pressure Rating
|
PN25
|
|
End Connection
|
Flanged Ends
|
|
Flange Standard
|
EN 1092-2 (Ductile Iron Flanges, Flat Face / Raised Face)
|
|
Face-to-Face Dimension
|
EN 558 Series 1 (or DIN 3202 F4)
|
|
Design & Manufacture Standard
|
EN 1171
|
|
Test & Inspection Standard
|
EN 12266-1
|
- Design Parameters
|
Item
|
Unit/Standard
|
Parameter
|
|
Max. Allowable Pressure
|
bar
|
25 bar @ ambient temperature
|
|
Service Media
|
–
|
Water, Oil, Gas (WOG) or Steam (depending on conditions)
|
|
Operating Temperature
|
°C
|
-10°C to 120°C (depending on trim materials)
|
|
Operation
|
–
|
Handwheel / Gearbox (Optional)
|
- Material of Construction (M.O.C.)
|
Part Name
|
Material Required
|
Standard / Grade (Ref.)
|
|
1. Body
|
Ductile Iron (DI)
|
EN 1563 (EN-GJS-400-15 or EN-GJS-450-10)
|
|
2. Bonnet
|
Ductile Iron (DI)
|
EN 1563
|
|
3. Wedge (Gate)
|
Ductile Iron (DI) with Bronze seat face
|
EN 1563, Bronze overlay/inlay on seat faces
|
|
4. Seat Face
|
Bronze
|
Overlay or inlay, e.g., EN 1982 (CuSn5Zn5Pb5)
|
|
5. Stem
|
Stainless Steel
|
13% Cr (1.4021) or 18-8 (1.4301 / 1.4303)
|
|
6. Stem Nut
|
Bronze / Aluminum Bronze
|
High-strength wear-resistant alloy
|
|
7. Packing
|
Flexible Graphite / PTFE
|
–
|
|
8. Gasket
|
Non-asbestos fiber / Graphite
|
–
|
|
9. Bolts/Nuts
|
Carbon Steel
|
Zinc plated or black finished
|
|
10. Handwheel
|
Ductile Iron / Malleable Iron
|
–
|
- Main Dimensions (Reference)
Note: Dimensions for reference only. Final dimensions to be verified per manufacturer’s drawing. (Unit: mm)
|
Description
|
Dimension
|
Remarks
|
|
Face-to-Face (L)
|
310 mm
|
Per EN 558 Series 1 (DN150 PN25)
|
|
Flange Diameter (D)
|
300 mm
|
EN 1092-2 PN25
|
|
Bolt Circle Diameter (C)
|
250 mm
|
EN 1092-2 PN25
|
|
Bolt Holes (n-ød)
|
8-ø26 mm
|
8 holes
|
|
Flange Facing Height (f)
|
2 mm
|
Raised face height
|
|
Handwheel Diameter (W)
|
Approx. 350 mm
|
Varies by manufacturer
|
|
Top-to-Open Height (H)
|
Approx. 650 mm
|
From stem top to handwheel (Reference)
|
|
Approx. Weight
|
Approx. 80 kg
|
Varies by manufacturer
|
- Inspection & Testing (EN 12266-1)
|
Test Description
|
Medium
|
Pressure (bar)
|
Requirement
|
|
Shell (Hydrostatic)
|
Water
|
37.5 (1.5 x PN)
|
No visible leakage
|
|
Seat (High Pressure)
|
Water
|
27.5 (1.1 x PN)
|
Leakage rate ≤ specified rating
|
|
Backseat Test
|
Water/Air
|
As required
|
No visible leakage
|
|
Low Pressure Pneumatic
|
Air
|
0.6
|
Optional, leakage rate ≤ specified rating
|
- Options & Accessories
|
Item
|
Options
|
|
Stem Upgrade
|
Stainless Steel 1.4408 (AISI 316) / 17-4PH
|
|
Wedge Material
|
Full Stainless Steel (1.4408) / Nylon Coated Ductile Iron
|
|
Operation
|
Gearbox / Electric Actuator / Pneumatic Actuator / Extension Stem
|
|
Flange Facing
|
Flat Face (FF) or Raised Face (RF) to match counter flange
|
|
Coating
|
Epoxy Coated (Blue RAL 5005 or Black), min. thickness 250μm
|
|
By-Pass
|
By-Pass Assembly (optional)
|
Remarks:
- Pressure Rating: PN25 per EN 1092-2 standard. Maximum allowable working pressure is 25 barat ambient temperature for water, oil, gas, and saturated steam (subject to temperature limits).
- Seat Design: Bronze seat faces are achieved by overlaying (welding) or inserting bronze rings on both body and wedge, ensuring corrosion resistance and long service life.
- Stem Design: Outside Screw and Yoke (OS&Y) design isolates the stem threads from the media, allowing in-line maintenance and providing visual indication of valve position.
- Applicable Standards: This datasheet is based on EN standards. Please confirm specific standard revisions and project special requirements before procurement.
