High pressure globe valve

PHOTO SHOWS SPECIFICATION AS BELOW
SIZE: 6″
RATING: 900LB
END: BW AS PER ASME B16.25
TEMPERATURE: -29 ℃~425℃
BODY AND BONNET : ASTM A216WCB
DISC: SOLID ASTM A182 F304+HF
STEM: ASTM A182 F304
SEAT: HF METAL
ACTUATION: HAND WHEEL

High pressure globe valve

PHOTO SHOWS SPECIFICATION AS BELOW

SIZE: 6″

RATING: 900LB

END: BW AS PER ASME B16.25

TEMPERATURE: -29 ℃~425℃

BODY AND BONNET : ASTM A216WCB

DISC: SOLID ASTM A182 F304+HF

STEM: ASTM A182 F304

SEAT: HF METAL

ACTUATION: HAND WHEEL

Description

GENERAL

Size: 2″~36″.
Pressure Rating: 150LB~4500LB, PN6~PN750
Design Temperature: -196℃~800℃.
General applications: CNG, LNG,LPG, CO2, N2, other cryogenic duty.STEAM thermal duty.
Design & Manufacture: BS 6364, API 6D , ASME B16.34, API 602 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.11, ASME B16.25, ASME B16.5, EN 1092, JIS 5K-20K. RF, RTJ are available.
Safety design: fire proof

GENERAL MATERIAL

BODY: ASTM A182 F304/F316/F304L/F316L/F51/F53, MONEL K400/K500, H276,INCONEL 625/718
PLUG: ASTM A182 F304, F316
SEAT: PCTFE, PEEK, HF METAL
OPERATOR: SPRING LOADED
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D, BS6364.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

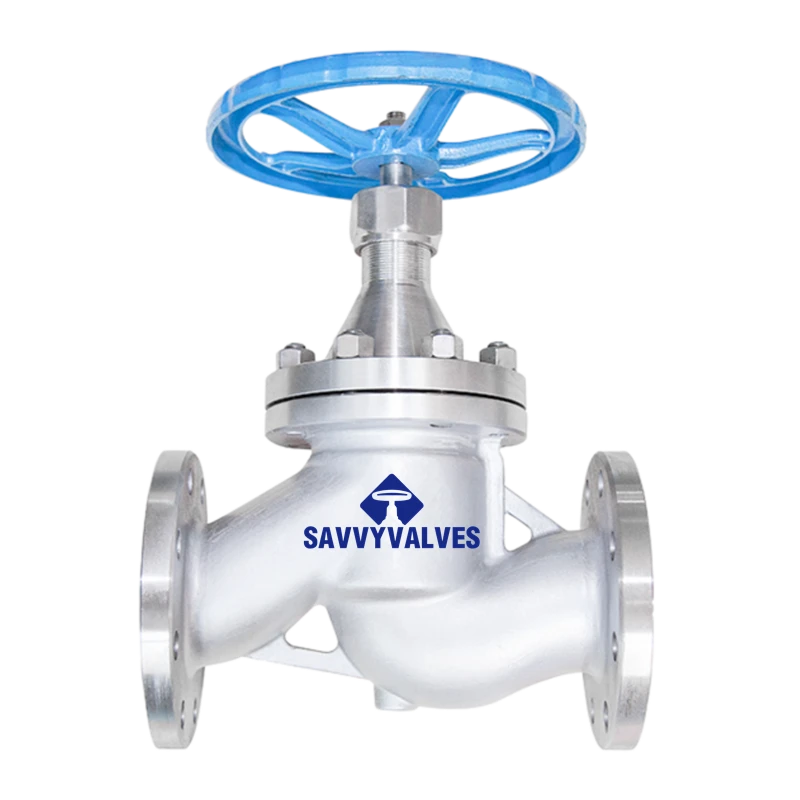

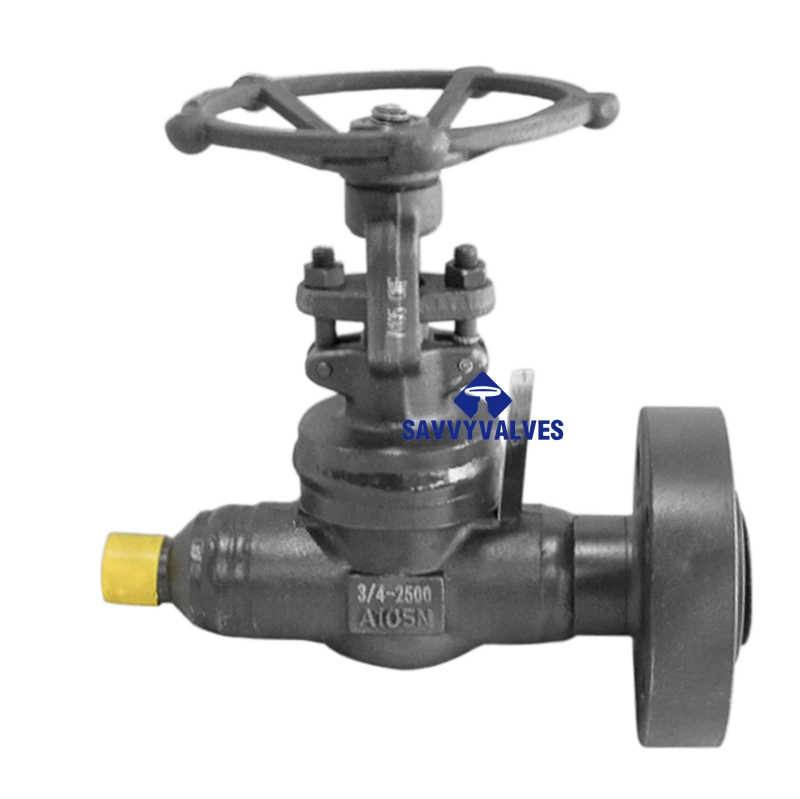

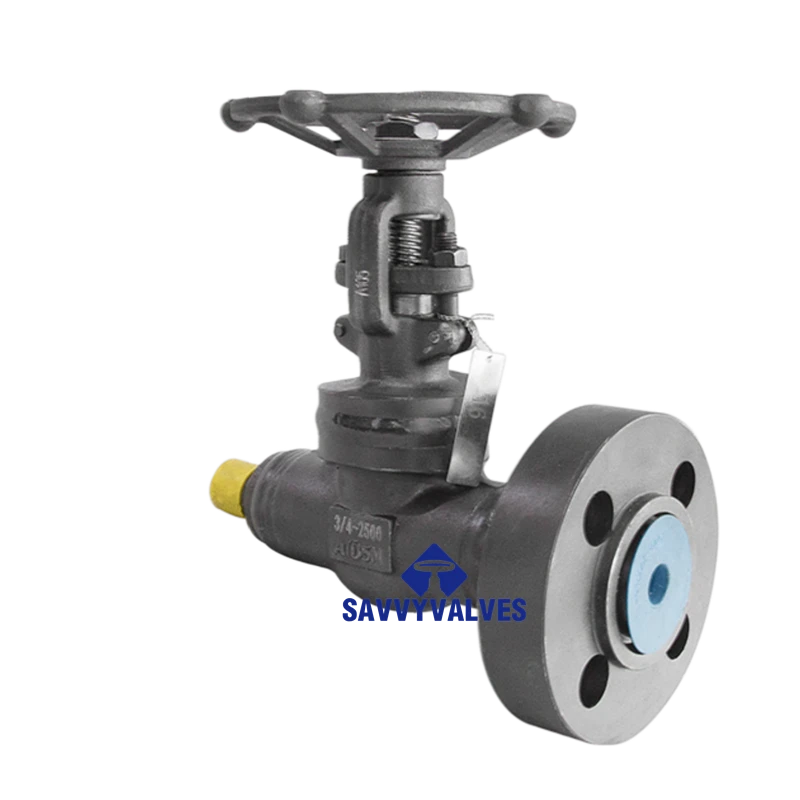

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is A High Pressure Globe Valve Used For?

A High Pressure Globe Valve is primarily used to regulate flow and pressure in pipelines that operate under high pressure. It is especially effective in applications where precise throttling and flow control are required, such as in power plants, oil and gas processing, chemical systems, and high-pressure steam lines. The valve’s disc moves perpendicular to the seat, allowing accurate modulation of flow. Its robust construction ensures durability and safety in demanding conditions. These valves are also ideal for shut-off operations due to their tight sealing capabilities. Available in a variety of sizes and materials, high pressure globe valves are suitable for handling different types of fluids, including corrosive and high-temperature media. Their reliable design minimizes leakage and enhances system efficiency, making them a preferred choice for industrial settings that demand performance under extreme pressure.
