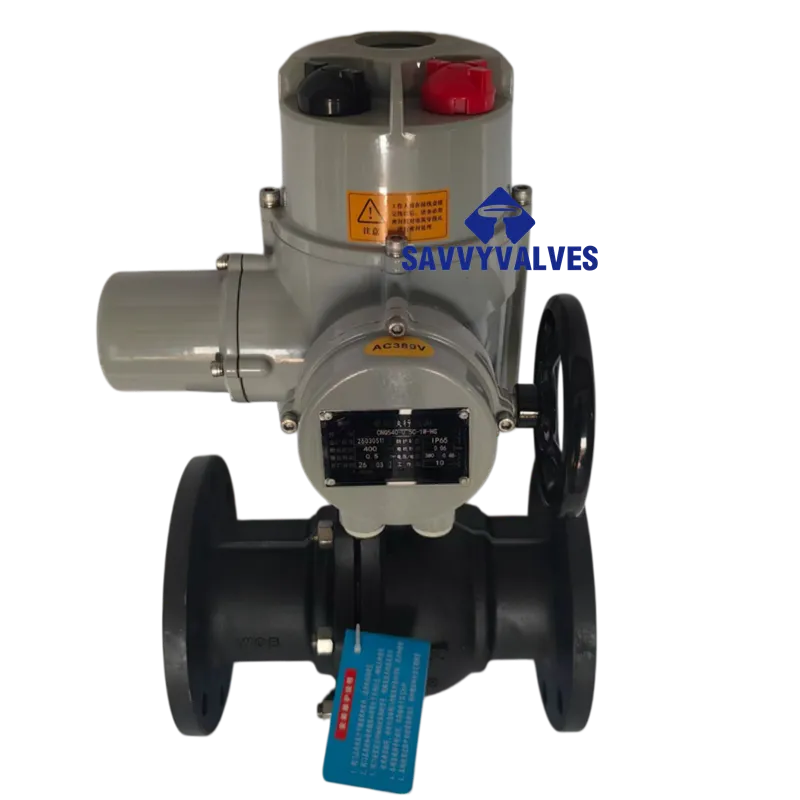

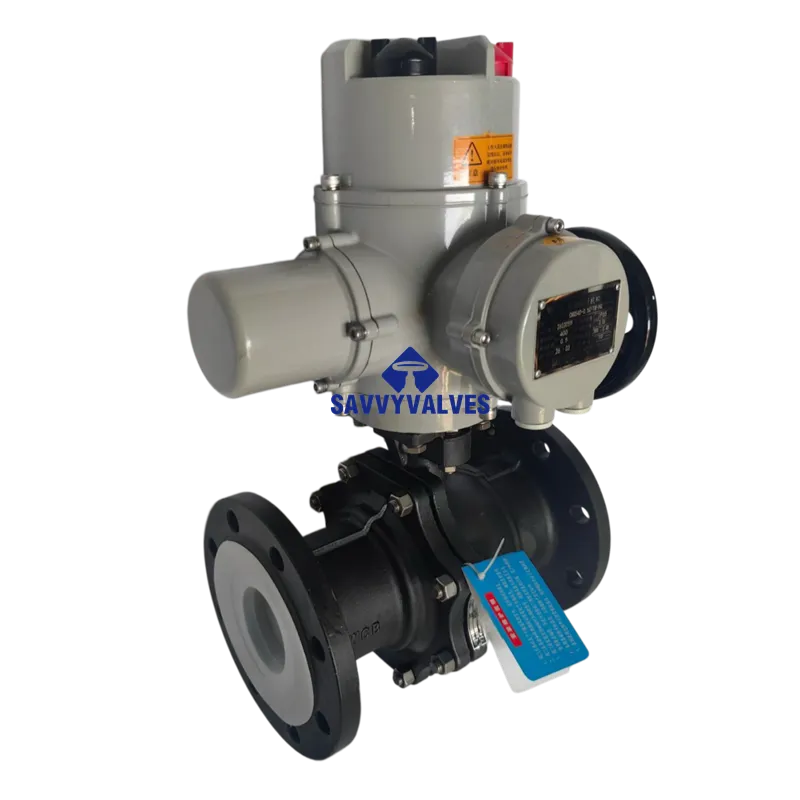

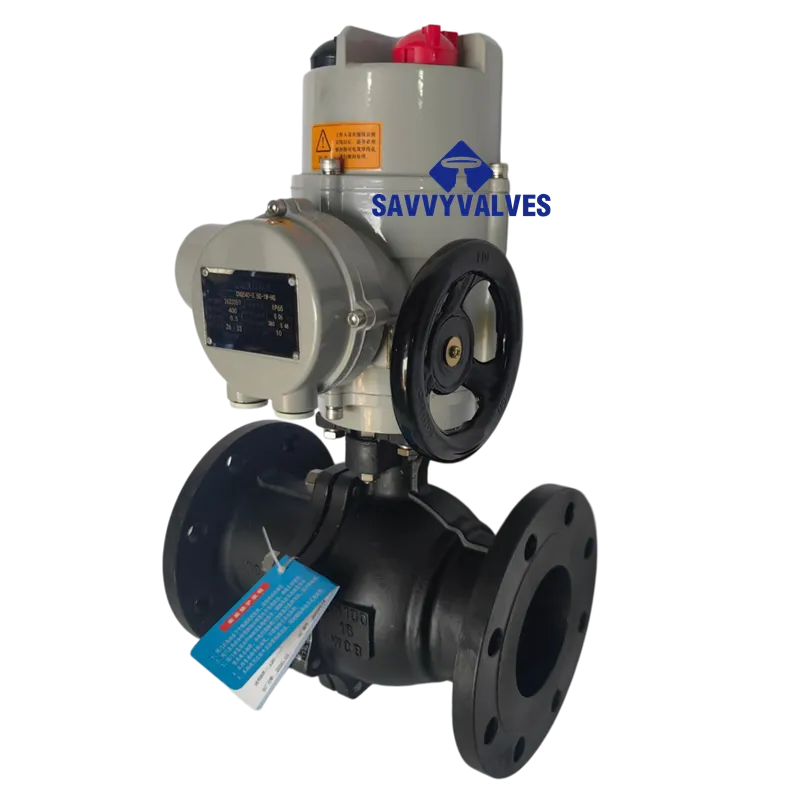

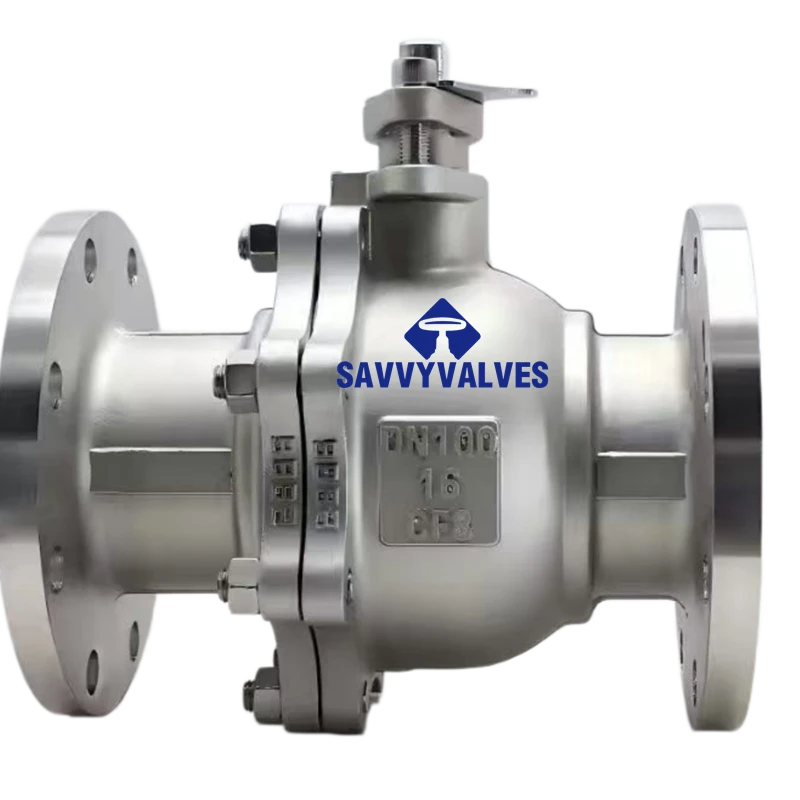

DN100 – PN16 – RF Motorized 2-Piece Floating Ball Valve
Technical Data Sheet
Item | Description |
Valve Type | 2-Piece Floating Ball Valve |
Nominal Size | DN100 (4 Inch) |
Pressure Rating | PN16 (16 bar) |
Body Construction | 2-Piece Body |
Body Material | Stainless Steel (CF8M / 316) as standard; carbon steel optional |
Flange Connection | RF (Raised Face) to EN 1092-1 PN16 or ASME B16.5 Class 150 |
Operation | Motorized Actuator |
Application | Frequent on-off or remote control service; suitable for water, oil, gas, mild corrosive media |
Standard | Description |
Design Code | ISO 17292 / BS 5351 / API 6D (optional) |
Body Construction | 2-piece, side entry, floating ball |
Flange Dimensions | EN 1092-1 PN16 RF or ASME B16.5 Class 150 RF |
Face-to-Face Dimension | ISO 5752 / EN 558-1 Series 1 or ASME B16.10 |
Pressure-Temperature Rating | ASME B16.34 or EN 12516 |
Inspection & Testing | API 598 or ISO 5208 |
Fire Safe Design | API 607 / ISO 10497 (optional) |
Anti-Static Device | API 6D / ISO 17292 (optional or standard) |
Top Flange | ISO 5211 (direct mounting for electric actuator) |
Component | Standard Material | Optional Materials |
Body | Stainless Steel CF8M (A351 Gr. CF8M / 316) | Carbon Steel WCB, Stainless Steel CF3M (316L), Duplex SS |
Bonnet | Stainless Steel CF8M | Matching body material |
Ball | Stainless Steel A182 F316 | Stainless Steel F304, Duplex SS, Hastelloy |
Stem | Stainless Steel A182 F316 | Stainless Steel F304, 17-4PH, Inconel |
Seat Sealing | PTFE (virgin) | Reinforced PTFE (RPTFE), PEEK, Nylon, Metal hardfacing |
Packing | PTFE V-ring | Flexible graphite + PTFE, low emission packing |
Gaskets | PTFE or Flexible graphite + SS spiral wound | As above |
Fasteners | Stainless Steel A193 B8 | Alloy Steel B7 (caution in corrosive environments) |
Dimension Parameter | Value (Typical, EN 558-1 Series 1) |
Face-to-Face Length L | Approx. 229 mm (ASME B16.10 Class 150 long) or 214 mm (ISO long) |
Flange Outer Diameter D | Approx. 220 mm (EN 1092-1 PN16) or 230 mm (ASME B16.5 Class 150) |
Bolt Circle Diameter K | Approx. 180 mm (EN) or 190 mm (ASME) |
Flange Thickness C | Approx. 22 mm (EN) or 24 mm (ASME) |
Number / Diameter of Bolt Holes | 8 × 18 mm (EN) or 8 × 19 mm (ASME) |
Center Height (flange face to center) | Approx. 55 mm |
Overall Height (excluding actuator) H | Approx. 180 mm |
Valve Weight (excluding actuator) | Approx. 18 kg (stainless steel) |
Electric Actuator Weight (reference) | Approx. 10 – 20 kg (depending on torque and brand) |
Dimensions above are typical references. Final dimensions to be confirmed with manufacturer’s drawing.
Temperature (°C) | Max. Working Pressure (bar) |
-29 ~ 38 | 16.0 (PN16 rating) |
100 | 13.6 |
150 | 11.2 |
200 | 9.2 |
250 | 7.5 |
300 | 5.9 |
350 | 4.8 |
400 | 3.5 |
425 | 2.8 |
For PN16 stainless steel valves, the maximum allowable working pressure at ambient temperature is 16 bar. With metal seat, the temperature range can be extended to -29°C ~ +400°C.
Parameter | Value |
Pressure Rating | PN16 (16 bar @ 38°C) |
Shell Test Pressure (water) | 24 bar |
High-Pressure Seat Test (water) | 17.6 bar |
Low-Pressure Air Seat Test | 6 bar |
Allowable Differential Pressure | Full rated pressure (floating ball design requires verification at high ΔP) |
Leakage Rate | Soft seat: Zero leakage (ISO 5208 Rate A / API 598 Rate A) |
Temperature Range (PTFE seat) | -29°C ~ +150°C |
Temperature Range (PEEK seat) | -29°C ~ +250°C |
Suitable Media | Water, oil, gas, natural gas, mild acids/bases, solvents, etc. |
Anti-Static Design | Optional (conductive path between ball, stem and body) |
As electric actuators vary by brand and control requirements, below is a typical configuration recommendation:
Parameter | Typical Value |
Actuator Type | Quarter-turn electric actuator |
Mounting Flange | ISO 5211 F10 or F12 (depending on torque) |
Max. Output Torque | Based on valve torque + safety factor (DN100 floating ball torque approx. 120–200 N·m, select 200–300 N·m) |
Power Supply | 380V / 3Ph / 50Hz or 220V / 1Ph |
Control Type | On-Off or Modulating (4-20mA) |
Enclosure Protection | IP67 (outdoor type) |
Explosion Proof (optional) | Ex d IIB T4 (flameproof) |
Accessories | Limit switches, torque switches, heater, local/remote control |
