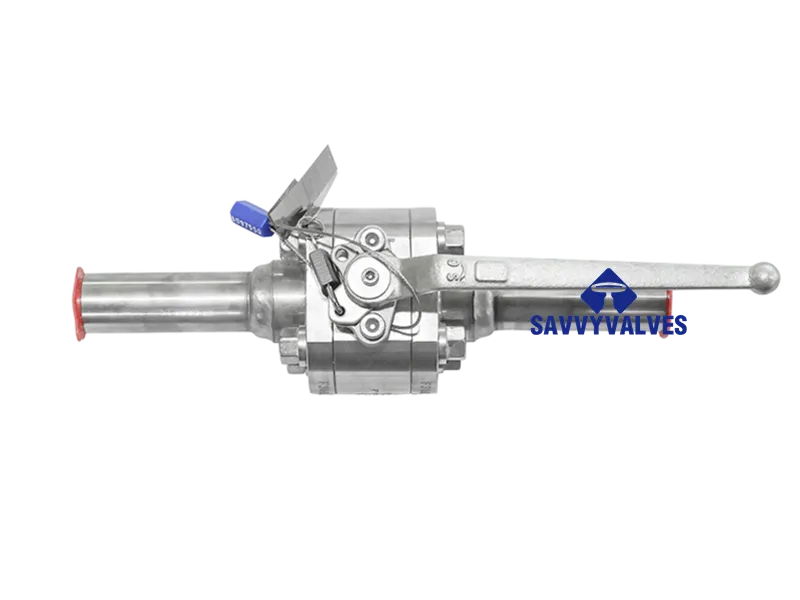

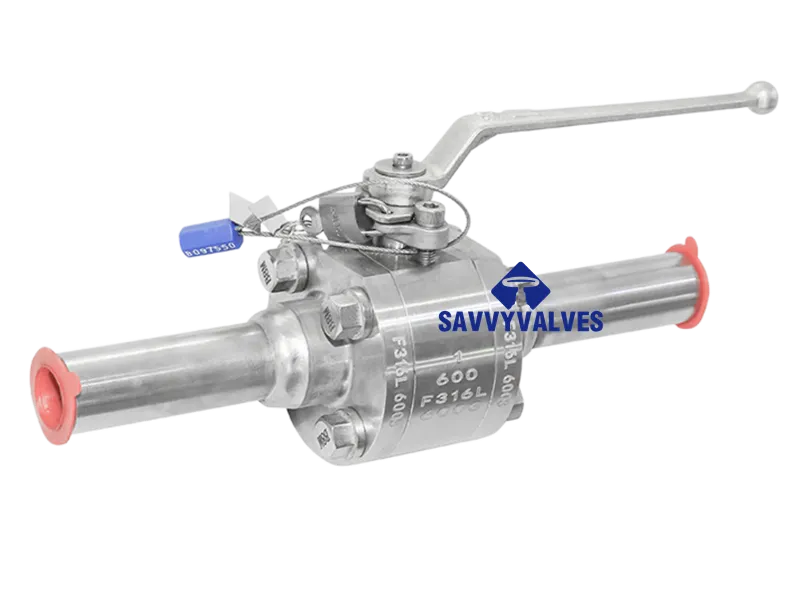

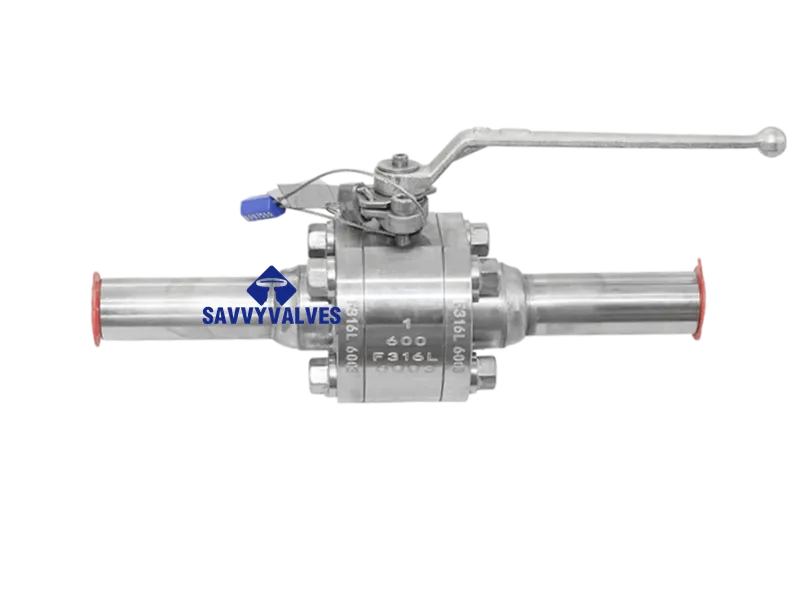

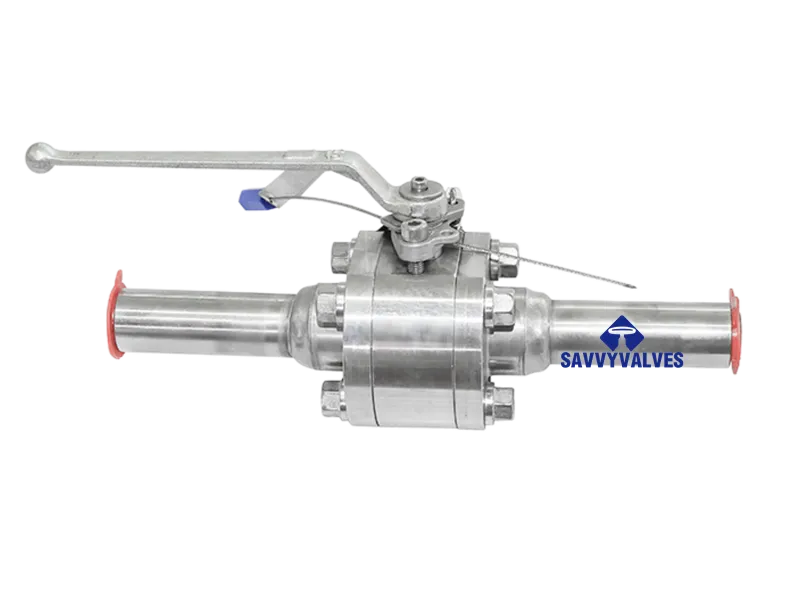

1″-600LB-Nipples End 3-Piece Floating Ball Valve c/w Lockable Lever

Technical Datasheet

Product Name: 3-Piece Floating Ball Valve with Nipples End
Model: 1″-600LB Nipples End 3-Piece Floating Ball Valve c/w Lockable Lever

1. General Information

2. Technical Specifications

3. Main Material of Parts

4. Main Dimensions & Connection Data (Unit: mm/in)

Note: Nipples ends typically include male NPT threads or socket weld ends on both sides for direct connection to pipe.

Note: Dimensions above are typical. Final dimensions should be based on approved manufacturer drawings.

5. Applicable Design Standards

• Design & Manufacture: API 608 / ASME B16.34 / ISO 17292
• End Connections: ASME B1.20.1 (NPT Threads) / ASME B16.11 (Socket Weld)
• Pressure-Temperature Rating: ASME B16.34
• Inspection & Testing: API 598 / ISO 5208
• Fire Safe Design: API 607 / ISO 10497 (Optional)
• Anti-Static: API 608 / ISO 17292

6. Product Features

1. 3-Piece Design: Allows for easy maintenance and replacement of seats and seals without removing the valve from the pipeline (swing-out capability).
2. Nipples End Connection: Factory-installed nipples (threaded or socket weld) provide a compact, ready-to-install solution, eliminating the need for separate pipe nipples and couplers.
3. Floating Ball Design: Ball is pressed against the downstream seat under pressure, ensuring a tight shut-off.
4. Lockable Lever Handle: Handle includes a locking mechanism (padlockable) to secure the valve in open or closed position, preventing accidental or unauthorized operation.
5. Blow-out Proof Stem: Stem is designed to be retained within the body even if the gland nut is loosened under pressure.
6. Anti-Static Device: Spring-loaded ball/plunger ensures electrical continuity between ball, stem, and body to prevent static spark build-up.

Remarks:

• Material Options: Typically available in A105 Carbon Steel or F316 Stainless Steel. Please specify required material grade when ordering.
• Nipple Type: Confirm if NPT threaded or Socket Weld nipples are required.
• Fire Safe Certification: Available upon request.
• For specific dimensional data, refer to the official certified drawings from the manufacturer.
